CONDTROL Wheel User Manual

EN
Congratulations on your purchase of measuring wheel Wheel CONDTROL.
Safety instructions provided in this user manual should be carefully read before you use the product
for the first time.
SAFETY REGULATIONS
Attention! This user manual is an essential part of this product.
The user manual should be read carefully before you use the product for the first time. If the product
is given to someone for temporary use, be sure to enclose user manual to it.
- Do not misuse the product.
- Store the product beyond reach of children and unauthorized people.
- It is prohibited to disassemble or repair the product yourself. Entrust product repair to qualified
personnel and use original spare parts only.
- Do not use the product in explosive environment, close to flammable materials.
FUNCTIONS/APPLICATIONS
The measuring wheel Wheel CONDTROL is designed for fast and accurate measurement of distance
in locations where it is impractical or impossible to use laser distance meters.
It is widely used for the inventory of various objects, measurements of road sections, forest areas,
railway tracks, places of traffic accidents, etc.
The advantage of Wheel CONDTROL is reliability and easy handling. The folding handle, made of
stainless steel, provides easy transportation and storage.
DELIVERY PACKAGE
Measuring wheel – 1 pc.
Pouch – 1 pc.
User manual – 1 pc.
EXTERNAL APPEARANCE

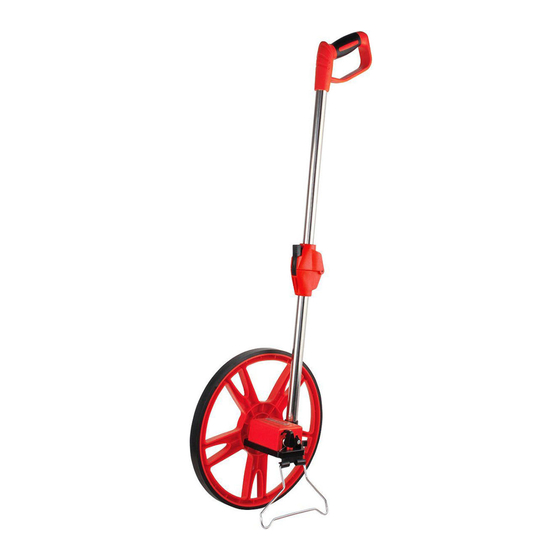

1 Handle
2 Handle lock
3 Wheel
4 Distance recorder
5 Key to reset the recorder to 0
6 Supporting stand
7 Arrow
1
2
3
4
5
7
6
