Chapter 6: Appendix

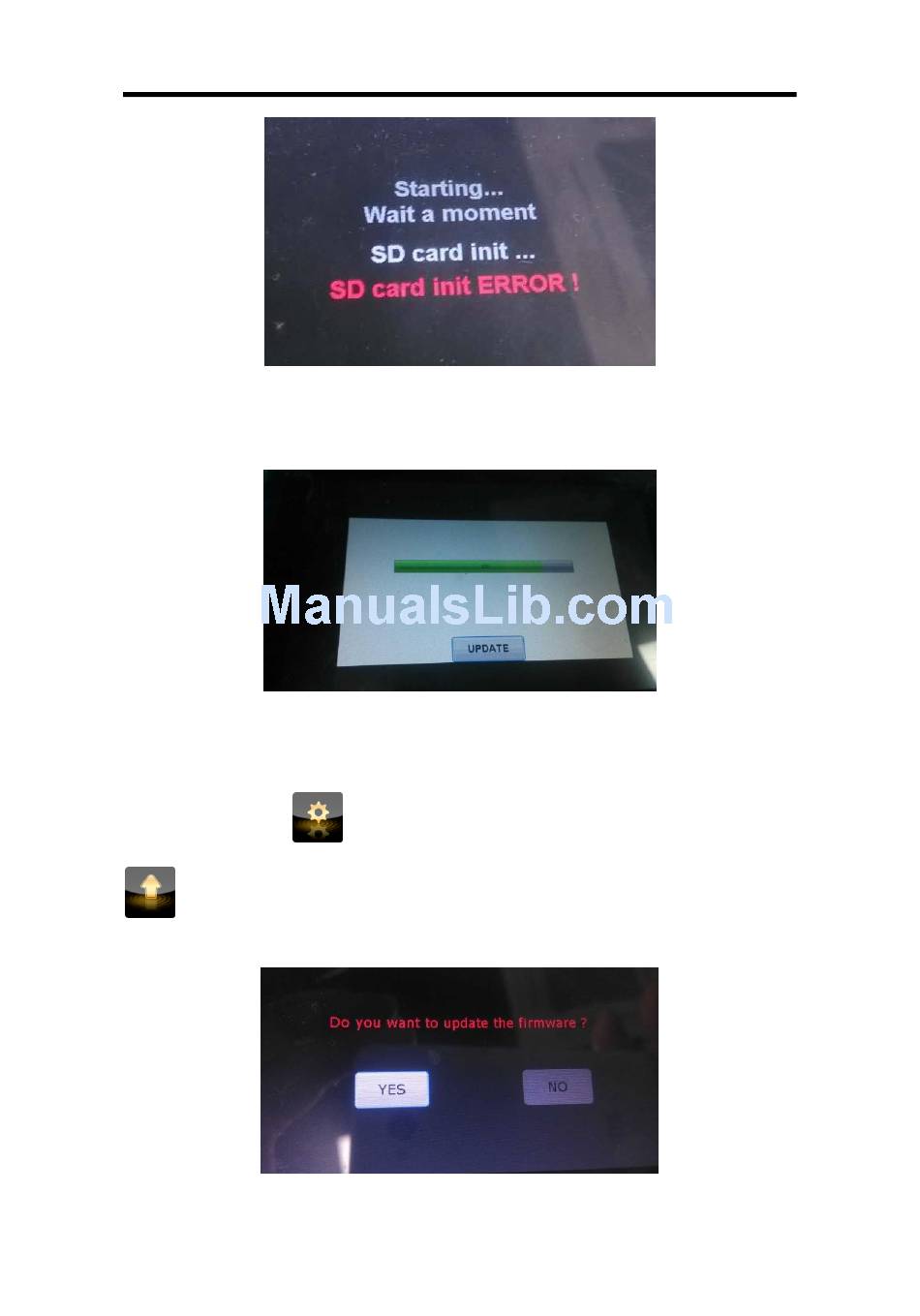

Touch the "UPDATE" button after restarting. The device begins to upgrade. Don't touch the
screen or power off during upgrading. It will restart when upgrade is finished. The upgrade
progress is shown as in the figure below. It will pop up the progress bar twice during upgrade, the
first time is erasing, and the second time is programming.
Step 4: Upgrade FPGA
Special Note: Make sure the battery is enough (more than 75%) during upgrading the FPGA
program. It is recommended to use the external power supply!!
Touch the settings icon , and enter to the next level menus. Then touch the upgrade icon
, and enter to the upgrade interface. Touch the "Update FPGA" button, it will pop up the
dialog box as follows:
Touch the "YES" button to upgrade FPGA, as shown in the figure below:
