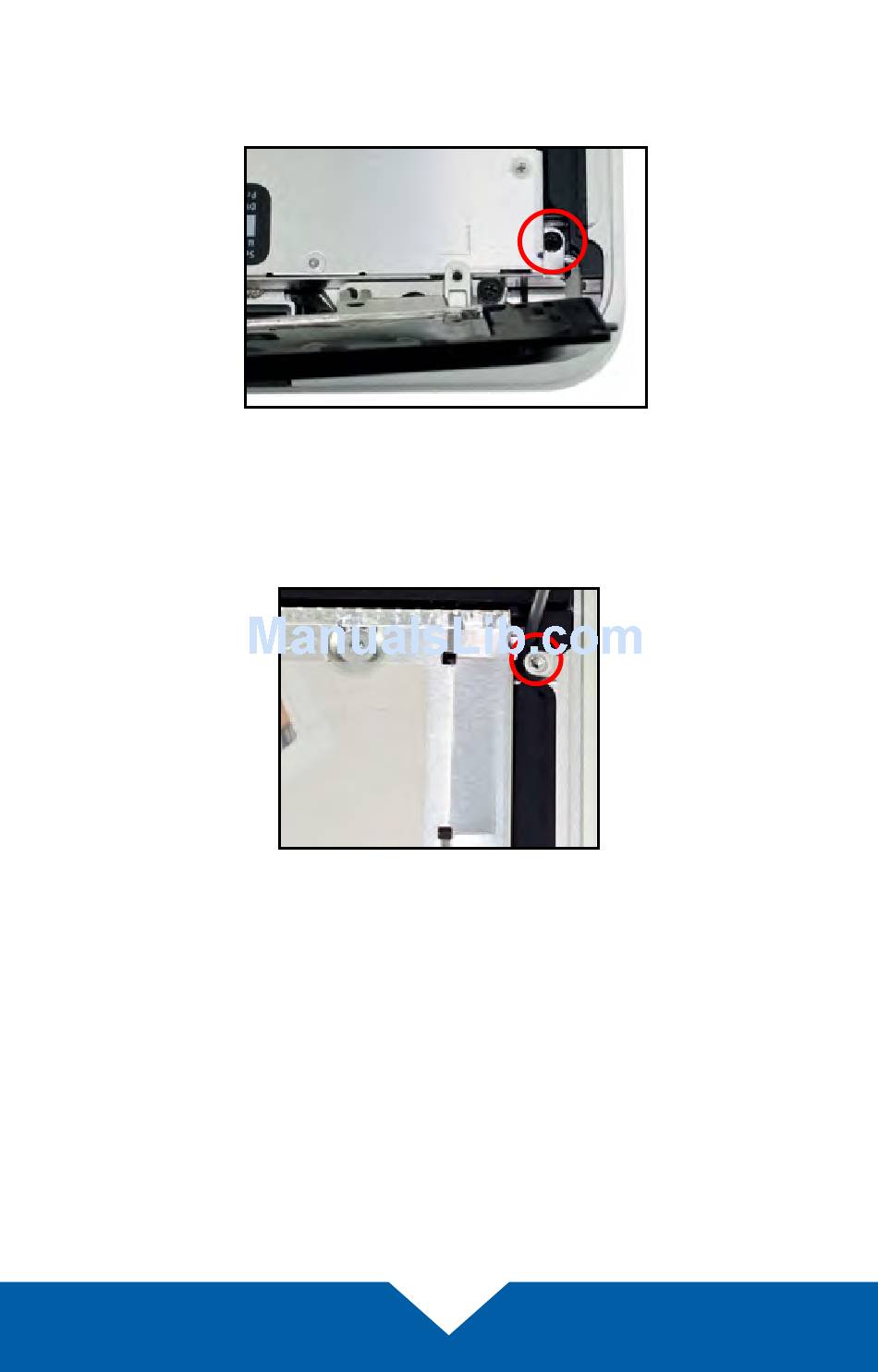

9. Once the bracket has been set aside, remove the black Phillips screw

highlighted below in red. Note: This screw will not be reused during

reassembly; put it in a safe place in case you need it later.

10. At the top right of the optical drive, there is another small Phillips screw

that needs to be removed. Note: This screw will not be reused during

reassembly; put it in a safe place in case you need it later.

11. Lift up the edge of the optical drive nearest the ribbon cables and gently

remove it from the optical bay. Be careful not to damage any of the cables

or connectors.
