OWC Data Doubler Installation Manual page 74

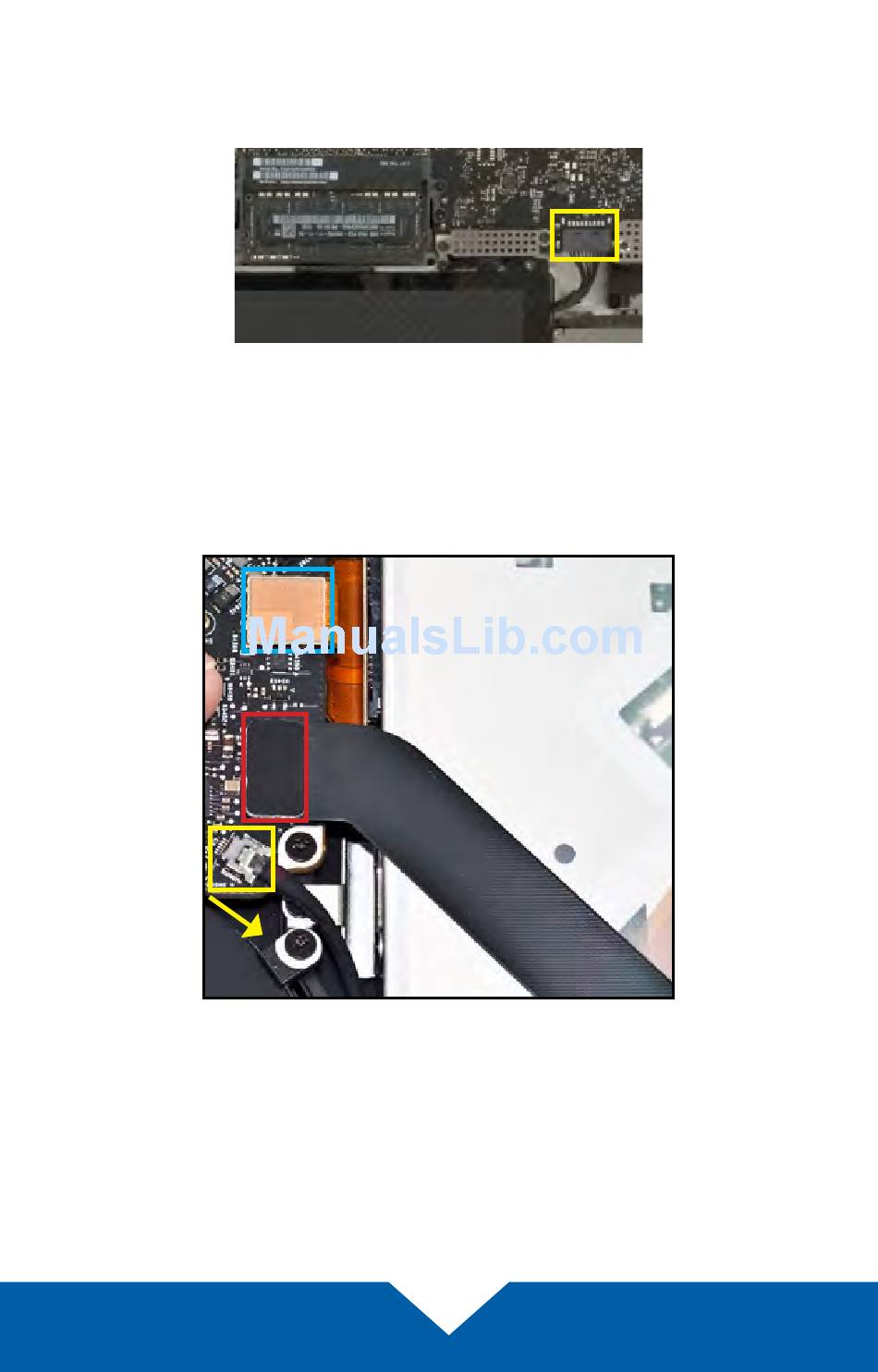

Note: If you are using a MacBook Pro 8,3 your battery connector will look like
the one highlighted below in yellow. Use the nylon pry tool to carefully lift the
connector off the logic board before proceeding.
3. Using the nylon pry tool, disconnect the cable with the silver connector
(shown in yellow) from the logic board by gently applying pressure in the
direction shown below. Note: this cable obscures a screw that will be
removed in an upcoming step.
4. Just above the silver connector that was disconnected in Step 3, there is a
black ribbon cable connector (shown above in red). Use the nylon pry tool
to disconnect it from the logic board by applying gentle upward pressure.
5. Use the nylon pry tool to gently lift the orange ribbon cable (highlighted in
blue) from the logic board.
OWC Data Doubler
Caution: this cable is easily damaged.
Caution: this cable is easily damaged.
