17. Take two longer Phillips screws from the kit and affix them in the same
locations where the shorter screws were removed in Steps 8 and 9. Note:
the location of the lower screw hole is obscured in the shot below. Next,
affix the screw that you removed from the silver bracket in Step 7.

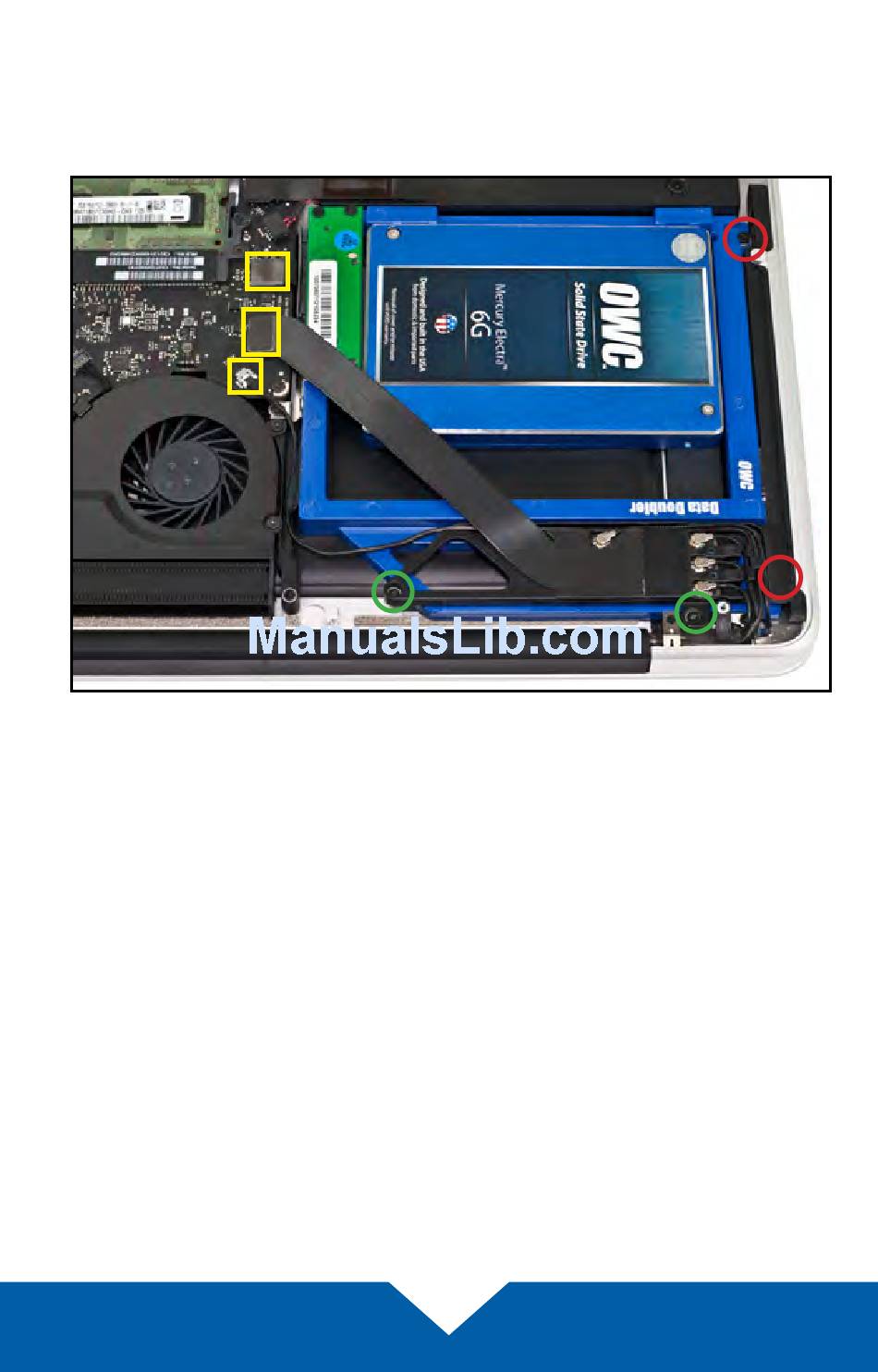

18. Reseat the Airport / Bluetooth bracket and affix the screws that were
removed in Step 7 (highlighted in green). Note: the longer screw should
be affixed in the screw hole near the corner of the chassis. Make sure all
the antenna connectors and the ribbon cable are still connected to the
bracket.
19. Re-connect the ribbon cables and the cable with the silver connector,
which you disconnected in Steps 5 and 6 (highlighted in yellow). If you
disconnected your battery in Step 3, reconnect it now.
20. Carefully replace the bottom cover, snapping it back into place. Affix the 10
Phillips screws that were removed earlier. Make sure the three long screws
are placed back in their original locations from Step 1.
The installation process is complete. Proceed to Section 3.1 for additional
support information.
