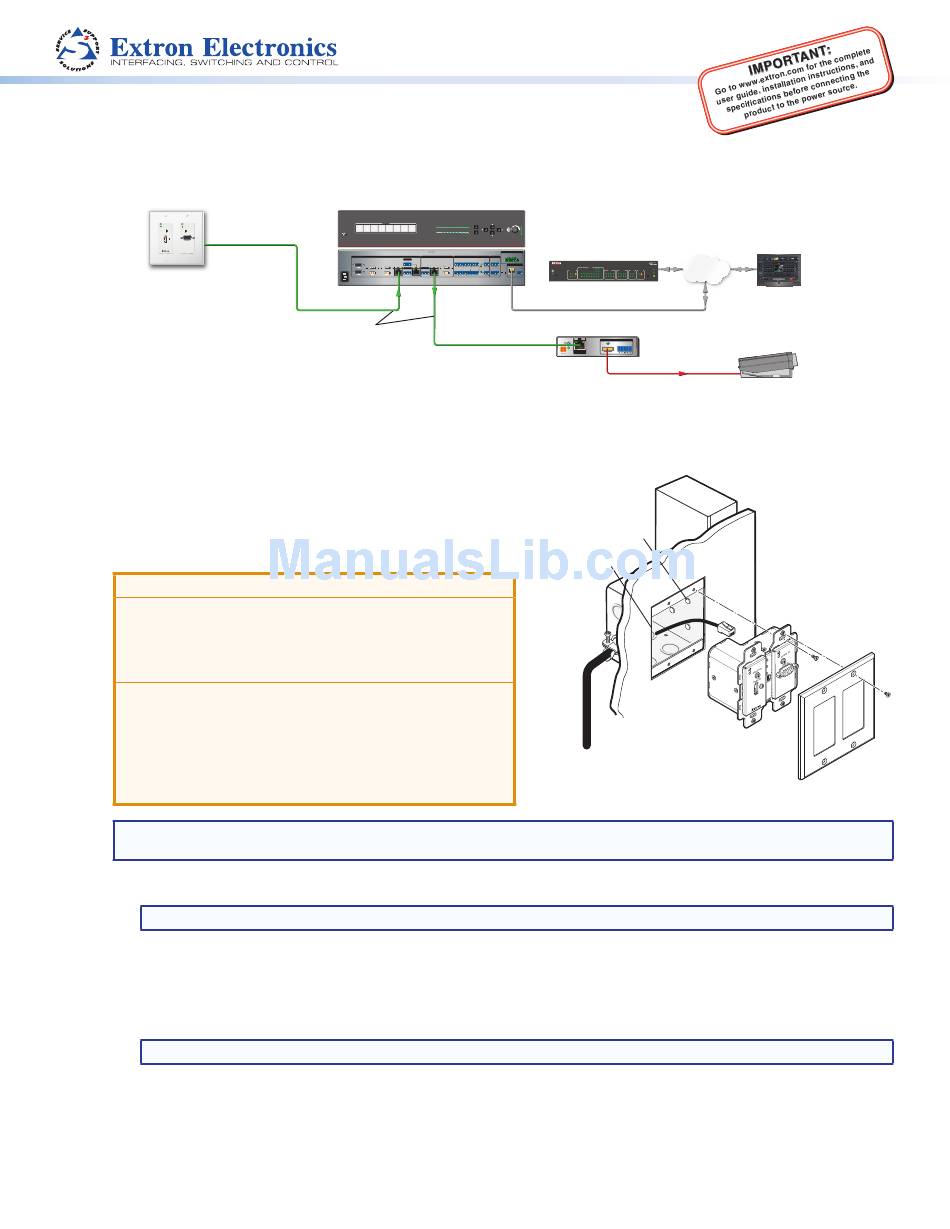

DTP T UWP 4K D Series • Setup Guide
This setup guide provides instructions for an experienced installer to set up and operate the Extron DTP T UWP 4K D series of
Twisted Pair (TP) wallplate extenders.
AUTO SW
AUDIO IN
AUDIO IN HDCP
1
HDMI IN VGA IN
CONFIG
Extron

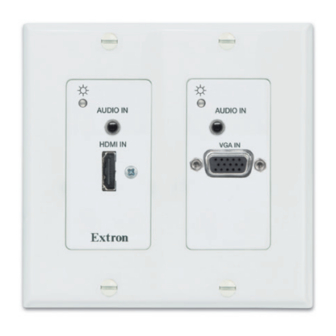

DTP T UWP 4K 232 D
Transmitter
Installation
Step 1 — Disconnect Power
Disconnect all equipment power sources.
Step 2 — Prepare the Mounting Surface
ATTENTION:
• Installation and service must be performed by
authorized personnel.
• L'installation et l'entretien doivent être effectués
par le personnel autorisé uniquement.
• The unit must be installed in accordance with the
National Electrical Code and with local electrical
and safety codes.
•
L'unité doit être installée conformément au
National Electric Code et aux normes électriques
et de sécurité locales.
NOTE: Use a wall box with a depth of at least 3.0 inches (7.6 cm). Alternatively, the included mud ring (MR 200) can be
used. For more information, see the DTP T UWP 4K D Series User Guide at www.extron.com.
Place the wall box against the installation surface and mark the opening guidelines.
a.
TIP: Use a level to mark the opening.
Cut out the material from the marked area.
b.
Secure the wall box to the wall stud with 10-penny nails or #8 or #10 screws, leaving the front edge flush with the
c.
surface.
Run all required cables (see steps 3, 4, and 5) and secure them with cable clamps.
d.
TIP: In order to fit the unit in the junction box, do not install boots on TP cables and RJ-45 connectors.
