- Page 1 Sauter GmbH Ziegelei 1 Tel: +49-[0]7433- 9933-199 D-72336 Balingen Fax: +49-[0]7433-9933-149 E-Mail: info@sauter.eu Internet: www.sauter.eu Instruction Manual Digital Shore Hardness Tester SAUTER HD Version 2.1 01/2015 HD-BA-e-1421...
- Page 2 Instruction Manual Digital Shore Hardness Tester Thank you for buying a digital SAUTER Shore hardness tester. We hope you are pleased with your high quality instrument and with its big functional range. If you have any queries, wishes or helpful suggestions, do not hesitate to call our service number.
- Page 3 2 Specifications Display: LCD Display Housing: High impact ABS Resolution: 1 μm (0.1 mils) Range: 0~100H Accuracy: ±1% or ±5 μm Measurement speed: >30 (readings per minute) Operating temperature: 0°C~50°C Power:: 2x1.5v AAA(UM-4) battery Size: 176x63x25mm Weight: 310 g HD-BA-e-1421...

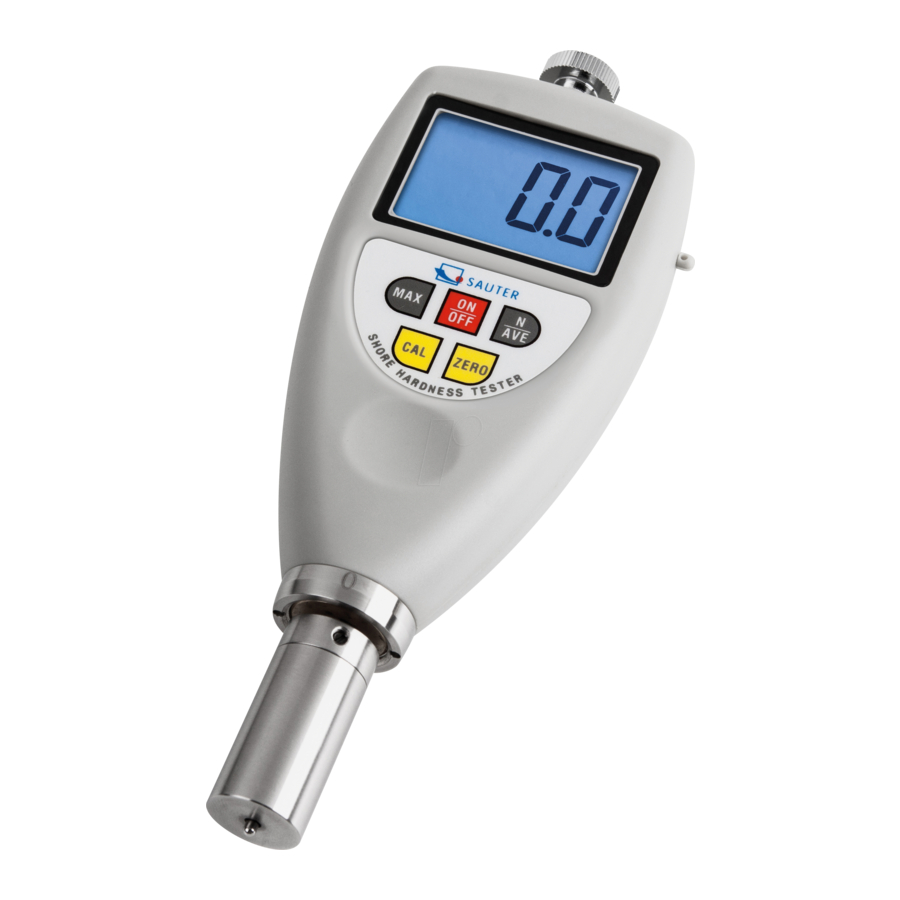

- Page 4 Number of measurements in the state of Average Value Indicator of Average Value RS 232 Interface max. HOLD key CAL key Battery Cover Wrist Ring State of Average Value 3-10 Power key 3-11 N/ Average key 3-12 Zero key 3-13 Sensor (Indenter) HD-BA-e-1421...
- Page 5 “N” measurements, followed by 2 beeps, with a symbol “AVE” indicated on the display. 4.7.4 To take the next average value, just repeat 4.7.3. HD-BA-e-1421...
- Page 6 Readings below 10HD for Shore D type may be inexact and should not be reported for some materials. Measurements should be made on a Shore A type. Readings above 90HA for Shore A should be made on a Shore D type durometer. HD-BA-e-1421...
- Page 7 EN 61000-3-2:2006+ A1:2009+ A2:2009 EN 61000-3-3:2008 EN 61000-6-2:2005 Datum 07.04.2014 Signatur Date Signature Ort der Ausstellung 72336 Balingen Albert Sauter Place of issue SAUTER GmbH Geschäftsführer Managing director SAUTER GmbH, Ziegelei 1, D-72336 Balingen, Tel. +49-[0]7433/9933-199 Fax +49-[0]7433/9933-149, E-Mail: info@sauter.eu, Internet: www.sauter.eu HD-BA-e-1421...
