sauter HMP Instruction Manual

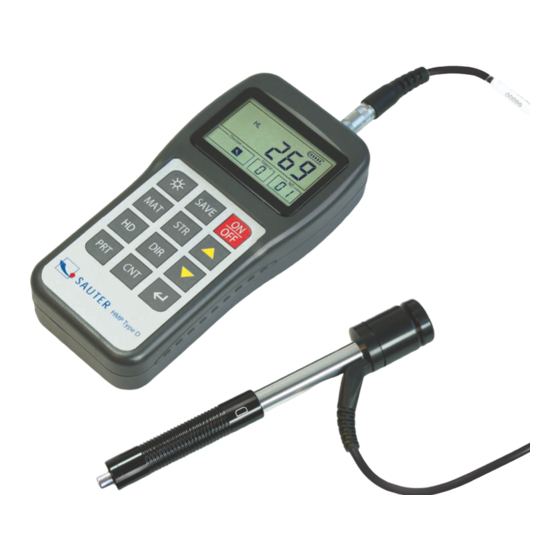

MOBILE LEEB HARDNESS TESTER
Model: HMP

Table of contents

1. Overview
1.1 Advantages
1.2 Main Application and Testing Range
1.2.1 Main Application
1.2.2 Testing Range
1.3 Specifications
1.4 Configuration
1.5 Operation Conditions
2. Structure Feature& Testing Principle
2.1 Structure Feature
2.1.1 D Type Impact Device
2.1.2 Different Types of Impact Devices
2.2 Main Screen
2.3 Keypad Description
2.4 Leeb Hardness Testing Principle
3. Preparation
3.1 HMP Preparation and Inspection
3.2 Impact Device Selection
3.3 Preparation of the Sample Surface
4. Testing Program
4.1 Start-up
4.2 Testing
4.3 Reading the measured value
4.4 Annotations
5. Operation Details
5.1 Power on/ off
5.2 Material Setting
5.3 Hardness/ Strength Setting
5.4 Impact Direction Setting
5.5 Average Times Setting
5.6 Data Logging
5.6.1 Viewing stored File/ Group
5.6.2 Clearing selected File/ Group
5.7 Print Report
5.8 System Reset
5.9 EL Backlight
5.10 Auto Power Off
5.11 Battery Replacement
5.12 Connection to PC
5.13 Error Code Reference
HMP-BA-e-1211
Sauter GmbH
Ziegelei 1
D-72336 Balingen
E-Mail: info@sauter.eu
Instruction Manual
HMP
6.
6.1
6.2
6.3
6.4
APPENDIX
Table 1
Table 2
Table 3
Table 4
1.
1.1
1.2
1.2.1 Main Applications
Tel: +49-[0]7433- 9933-199
Fax: +49-[0]7433-9933-149
Internet: www.sauter.eu
Maintenance & Service
Impact Device Maintenance
Instrument Maintenance Program
Fault Analysis & Clearance
Note of Transport and Storage Conditions
Overview
Advantages

Wide measuring range. Based on the principle of
LEEB hardness testing theory. LEEB hardness
of all metallic materials can be measured.

Large LCD screen, showing all functions and
parameters, with EL backlight.

Seven impact devices are available for special
applications. The type of impact device can be
automatically identified.

Testing possible at any angle, even upside
down.

Direct display of hardness scales HRB, HRC,
HV, HB, HS, HL.

Large memory can store 100 information groups
including single measured value, mean value,
impact direction, impact
hardness scale etc.

Battery information shows the rest capacity of
battery

User calibration function

Software for connection to PC via RS-232 port;
Micro printer support

Compact plastic case, suitable as well for use
under poor working conditions.

Continuous working period of about 100 hours
with two Alkaline batteries (AA size)

Auto Power Off to save energy

Dimensions: 150 x 74 x 32 mm

Weight: 245 g
Main Application and Testing Range

Die cavity of moulds

Bearings and other parts

Failure analysis of pressure vessels , steam
generators and other equipment

Difficult work pieces

Installed machinery and permanently assembled
parts

Testing surface of a small hollow space

Material identification in the range of metallic
materials
times, material,
1
