Quick Start Guide
This guide is to assist you in installing and running the inverter and verify that it is
functioning correctly for it's main and basic features.
For detailed information and if there are any doubts please refer to the instruction manual.
Step 1
Supply & Motor connection
1) Ensure that the Inverter & the motor have the correct
KW power and voltage ratings.
Motor full load amps must not exceed the Inverter rating.
2) Ensure that the supply & Motor cables are connected
correctly prior to power up.
3) For single phase supply, use L1(L) & L3(N) on units which
have 3 supply terminals.
4) Connect motor cable to terminals T1, T2 &T3.
(Swap two leads if motor runs in reverse direction).
5) Connect supply Earth and the motor Earth to the drive Earth
terminal.
Downloaded from https://acdriveshop.co.uk
TECO E510 Inverter
Page 1 of 9
Note:-
I ) For detailed installation
and wiring refer to the
manual.
Instruction
08/08/14

Advertisement

loading
Need help?

Need help?

Do you have a question about the E510 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for TECO E510

Summary of Contents for TECO E510

  • Page 1 TECO E510 Inverter Quick Start Guide This guide is to assist you in installing and running the inverter and verify that it is functioning correctly for it’s main and basic features. For detailed information and if there are any doubts please refer to the instruction manual.
  • Page 2 Step 2 Apply power to the drive Apply power to the drive, the display will briefly show the supply voltage 220V followed by flashing. 5.00 This is the default (factory set) frequency. If the unit has been used previously then it will show the last frequency programmed.
  • Page 3 Remote speed reference and Remote run Step 1 Remote mode wiring. Speed reference . 1) Ensure that you have carried out installation & wiring requirements as per previous page before you proceed. 2) For analogue signals 2-10V / 0-10V dc or 0-20mA / 4-20 mA.dc. Use either terminal AI1or AI2.
  • Page 4 Step 3 Check/ verify and alter parameters Check / verify and alter parameters for remote start & remote frequency as necessary before you proceed. Parameters 00-02 & 00-05 See quick start parameter list & How to alter parameters Step 4 using remote speed reference.

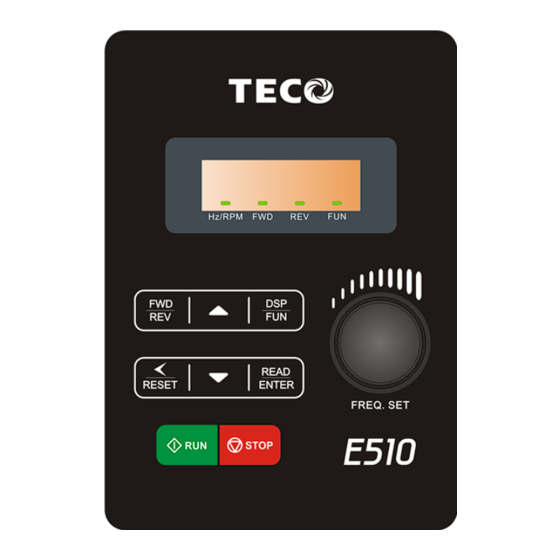

  • Page 5 How to alter parameters using the keypad 1) To alter parameters:- Press the DSP/FUN key, until the first parameter 00-00 is displayed. 2) Then use the arrow keys </RESET to select the parameter required then Press READ ENTER key to read the preset value. 3) Use the </ RESET keys to alter the setting of the parameters...
  • Page 6 Basic Quick Start Parameter List Parameter Default Range Note 00-00 0: V/F control mode 1: Vector mode (SLV) 00-14 10.0 0.1~3600.0 Acceleration time in Secs 00-15 10.0 0.1~3600.0 Deceleration time in Secs 00-04 0: Forward/Stop-Reverse/Stop 1: Run/Stop-Reverse/Forward 2: 3-Wire Control Mode-Run/Stop 00-12 50/60Hz 0.01~650.00...
  • Page 7 Control Modes & Auto Tune E510 provides two control modes Select the relevant control mode for the application, using parameter 00-00 Control mode. Default control mode is V/f. V/f can be used for most applications specifically multi-motor or applications where auto tune is not successful or when a customized v/f pattern may be required.

  • Page 8: Standard Wiring

    Indicates twisted-pair shield wire Indicates shield wire Shows main circuit Shows control circuit *1: JP1:NPN/PNP selection, JP2:AI1 0~10V/0~20mA selection, JP3:AI2 0~10V/0~20mA selection Model: 200V: E510-2P5-H1F (N4S) / E510-201-H1F (N4S) / E510-202-H1F (N4S) / E510-203-H1F (N4S) Page 8 of 9 08/08/14 Downloaded from https://acdriveshop.co.uk...

  • Page 9: Three Phase

    *1: JP1:NPN/PNP selection, JP2:AI1 0~10V/0~20mA selection, JP3:AI2 0~10V/0~20mA selection Model: 200V: E510-202-H3 (N4) / E510-205-H3 (N4) / E510-208-H3 (N4) / E510-210-H3 (N4) / E510-215-H3 (N4) / E510-220-H3 (N4) 400V: E510-401-H3F (N4S) / E510-402-H3F (N4S) / E510-403-H3F (N4S) / E510-405-H3F (N4S) / E510-...
