Hardware Installation Manual

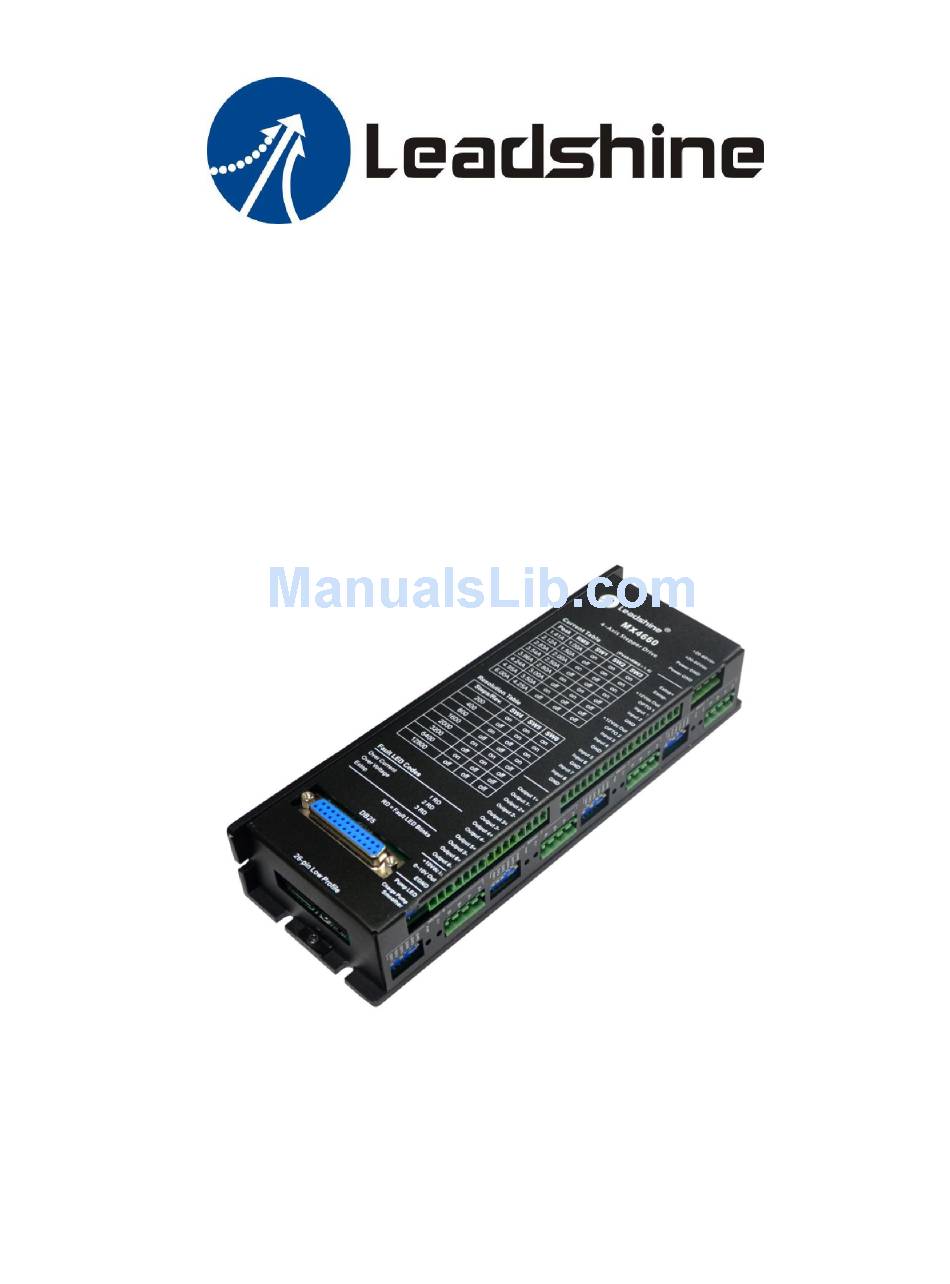

MX4660
4-Axis Stepper Drive with Breakout Board & I/O's
Revision 1.0
10 / 2014
http://www.Leadshine.com
http://www.LeadshineμSa.com
©2014 Leadshine Technology Co., Ltd.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MX4660 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Leadshine MX4660

Summary of Contents for Leadshine MX4660

  • Page 1 Hardware Installation Manual MX4660 4-Axis Stepper Drive with Breakout Board & I/O’s Revision 1.0 10 / 2014 http://www.Leadshine.com http://www.LeadshineμSa.com ©2014 Leadshine Technology Co., Ltd.
  • Page 2 This manual is not for use or disclosure outside of Leadshine except under permission. All rights are reserved. No part of this manual shall be reproduced, stored in retrieval form, or transmitted by any means, electronic, mechanical, photocopying, recording, or otherwise without approval from Leadshine.

  • Page 3: Table Of Contents

    Hardware Manual for Leashine MX4660 4-Axis Stepper Drive with Breakout Board & I/O’s Contents 1. INTRODUCTION ..........................4 2. FEATURES ............................. 5 3. APPLICATIONS ..........................5 4. BLOCK DIAGRAM .......................... 5 5. DIMENSIONS ..........................7 6. GET STARTED ..........................7 7.

  • Page 4: Introduction

    NEMA 17 to 34 in full power with high reliability. The MX4660 is easy to configure without the use of software. With the four DIP switches (one for each axis), a user can easily configure the output current to one of the eight 1.41-6.0A settings, and the micro stepping resolution to one of the eight 200-12,800 (full to 1/64 step) settings.

  • Page 5: Features

    Its unique design with built-in breakout board and I/O’s fits seamlessly in many applications powered by many popular CNC systems such as Mach3, Mach4, EMC, WinCNC, etc. Block Diagram The figure1 shows MX4660 main internal components and how it interfaces with other components in the motion control system of your machine/device. Leadshine Technology Co., Ltd Leadshine America, Inc.
  • Page 6 Hardware installation manual of the multi-axis drive MX4660 Multi-Axis Drive CNC Machine Breakout Drive 1 6-bit DIP Board Motor 1 4-pin Screw Terminal Power 20-60 VDC Connector Drive 2 6-bit DIP 4-pin Screw Motor 2 Terminal Parallel DB25 Drive 3...

  • Page 7: Dimensions

     A 24-54 VDC power supply.  Up to 4 stepper motors depending on how many axes that MX4660 will power in your application.  A source of step signals, such as a motion controller, PLC, or a PC-based control system (Mach 3, EMC, etc.).

  • Page 8: Connecting A Power Supply

    Connecting a Power Supply The power supply connector is located at the upper left side of MX4660 (“CN2” in Figure 3). The power supply of the MX4660 can be connected as illustrated in Figure 4. Although MX4660’s working voltage is 20-60 VDC, we suggest the use of a 24-54 VDC power supply to leave room for back EMF voltage charge back during motor deceleration.

  • Page 9: Connecting A 6-Lead Stepper Motor

    Connecting a 4-lead stepper motor Connecting a 6-Lead Stepper Motor The MX4660 can drive 6-lead stepper motors in either half coil connection or full coil connection. Before the connection, please read the datasheet of your stepper motor. Connecting a 6-Lead Stepper Motor in series connection This configuration is also referred to as half chopper.

  • Page 10: Connecting A 8-Lead Stepper Motor

    Hardware installation manual of the multi-axis drive MX4660 Connecting a 8-Lead Stepper Motor The MX4660 can drive an 8-lead stepper motor in either series connection or parallel connection. Before the connection, please read the datasheet of your stepper motor. Connecting a 8-Lead Stepper Motor in series connection Refer to the wiring diagram of your stepper motor datasheet.

  • Page 11: Connecting An E-Stop Switch Or Shorting The Connection

    “Charge Pump”, a watchdog timer to enable/disable the MX4660. When the charge pump feature is turned on, the MX4660’s activation will depend on the receiving of 10 KHz signals at pin 16 of the DB25 connector. When the “Charge Pump” feature is turned off, the MX4660 will be activated without such verification.

  • Page 12: Setting The "Smoother" Switch

    “Smoother” feature may or may not have obvious effect (but at least no hurt for the bottom line). Turning on this switch or off is totally your choice. By default, the MX4660 smoother is set to off.

  • Page 13: Configuring The Output Current

    The step and direction pin connections are required. Step signals are sent to MX4660 via pin 2, 4, 6, 8 of the DB25 connector. Direction signals are sent to MX4660 via pin 3, 5, 7, 9. Refer to Figure 13. Leadshine Technology Co., Ltd Leadshine America, Inc.

  • Page 14: Connecting The Db25 Fault Output Pin

    The connected external E-Stop switch in the digital input is pressed.  With the receiving of a fault received from the MX4660, a controller can be notified an abnormal event has happened. It can then react, such as shutting down the whole control machine/device for machine damage.

  • Page 15: Connecting The Pwm Pin

    The 8 general digital inputs are located at the Digital Input Connector (Figure 3) of the MX4660. They are named as Input 1, Input 2, Input 3, Input 4, Input 5, Input 6, Input 7 and Input 8. They can be used for any purpose such as connecting limit/home switches.

  • Page 16: Connecting The Digital Outputs

    The 6 general digital outputs are located at the Digital Output Connector (Figure 3) of the MX4660, named as Output 1, Output 2, Output 3, Output 4, Output 5 and Output 6. They can be used to control a DC relay for coolant in a CNC router, or for other purpose such as expanding the and 6 axis.
  • Page 17 Hardware installation manual of the multi-axis drive MX4660 Figure 16 Connecting digital output1, 2 Figure 17 Connecting digital output3, 4, 5, 6 Leadshine Technology Co., Ltd Leadshine America, Inc. Page 17/28 3/F, Block 2, Nanyou Tianan Industrial Park, Shenzhen, China...

  • Page 18: Connecting The Analog Output

    EGND Figure 18 Connecting a VFD to the MX4660 Figure 19 shows the relationship of the spindle speed output in Mach3 and analog output of the MX4660. Testing conditions: Used MACH3, settings: PWMBase Freq. = 10, Minimum PWM = 0%, Used “+12Vdc Out”, the 12VDC auxiliary power output on the MX4660 as the power input for “+10Vdc in”...
  • Page 19 Hardware installation manual of the multi-axis drive MX4660 Figure 19 Spindle output & analog output of the MX4660 The precision of the analog output is related to PWMBase Freq. parameter settings. When set PWMBase Freq. = 80 Hz, the precision/resolution reached to +/- 11.875 mV. See below.

  • Page 20: Appendix A: Mx4660 Connection Diagram

    MX4660 Connection Diagram When implemented properly, the MX4660 can be used to power four 2 phase (1.8°) stepper motors of NEMA 17, 23, 24, and 34. In addition, it can also allow controls of optional external devices via the built-in digital inputs, digital outputs, and the opto-isolated analog output.
  • Page 21 “Charge Pump” (Figure5) is set to “OFF” position (Charge pump feature NOT turned off), the MX4660 will be only enabled with 10 KHz signal receiving at this PIN. Otherwise (no such signal received), the MX4660 will be disabled, and you need to CHARGE PUMP set the switch to “ON”...
  • Page 22 Hardware installation manual of the multi-axis drive MX4660 Name Description Ground Ground Ground Ground Ground Ground Ground Ground Appendix C: 26-pin Low-profile Connector Pinout Figure 23 Pin assignments of the 26-pin low-profile connector Name Description General purpose digital input. It is connected to “Output 6” of the digital output connector (CN7 on Figure3).

  • Page 23: Appendix D: Digital Inputs

    Description Emergency stop input (12V Sourcing). When activated, all four drive boards will be shut down and the MX4660 will stop working. The red LED of each drive module will blink three times Estop+ periodically every 4 seconds to indicate an emergency event signal received. In this case, a fault output will be sent to pin 15 - “Fault”- of the DB25 connector to notify the connected motion...
  • Page 24 Hardware installation manual of the multi-axis drive MX4660 controller connected through the DB25 connector. Common ground. Power Input for opto-couplers for Input1 and Input2. Defaut is +12VDC and a +12Vdc Out is available on board. A resistor is required for current limit when input voltage is higher than +12 OPTO2 VDC.

  • Page 25: Appendix E: Digital Outputs

    Hardware installation manual of the multi-axis drive MX4660 Appendix E: Digital Outputs Name Description General purpose output (max 24V@70mA). This pin is connected to pin 17 - “Input 1” - of the Output 1 + DB25 connector. Used to output the digital signal, sent through DB25 “Input 1” from the motion controller, to the connected external device here.

  • Page 26: Appendix F: Opto-Isolated Analog Output

    Trouble Shooting In the case that the MX4660 doesn’t operate properly, the first step is to identify whether the problem is electrical or mechanical in nature. The next step is to isolate the system component that is causing the problem.
  • Page 27 Make sure the maximum frequency of the step too high signal is lower than 200 kHz. Interference Shield your signal cables and keep the MX4660 as far as possible, from other electronic components Power supply voltage is too Use a lower voltage power supply (recommended...

  • Page 28: Contact Us

    Hardware installation manual of the multi-axis drive MX4660 Contact US Contact Leadshine HQ, Leadshine USA Inc., or your local authorized Leadshine distributors for sales, technical support, and other services. Leadshine Headquarters Leadshine America, Inc. Address: 3/F, Block 2 Address: 25 Mauchly, Suite 318...
