- Page 1 AMB-D255T1 Quick Manual 220010439-G...
-
Page 2: Mainboard Illustration (Top Side)

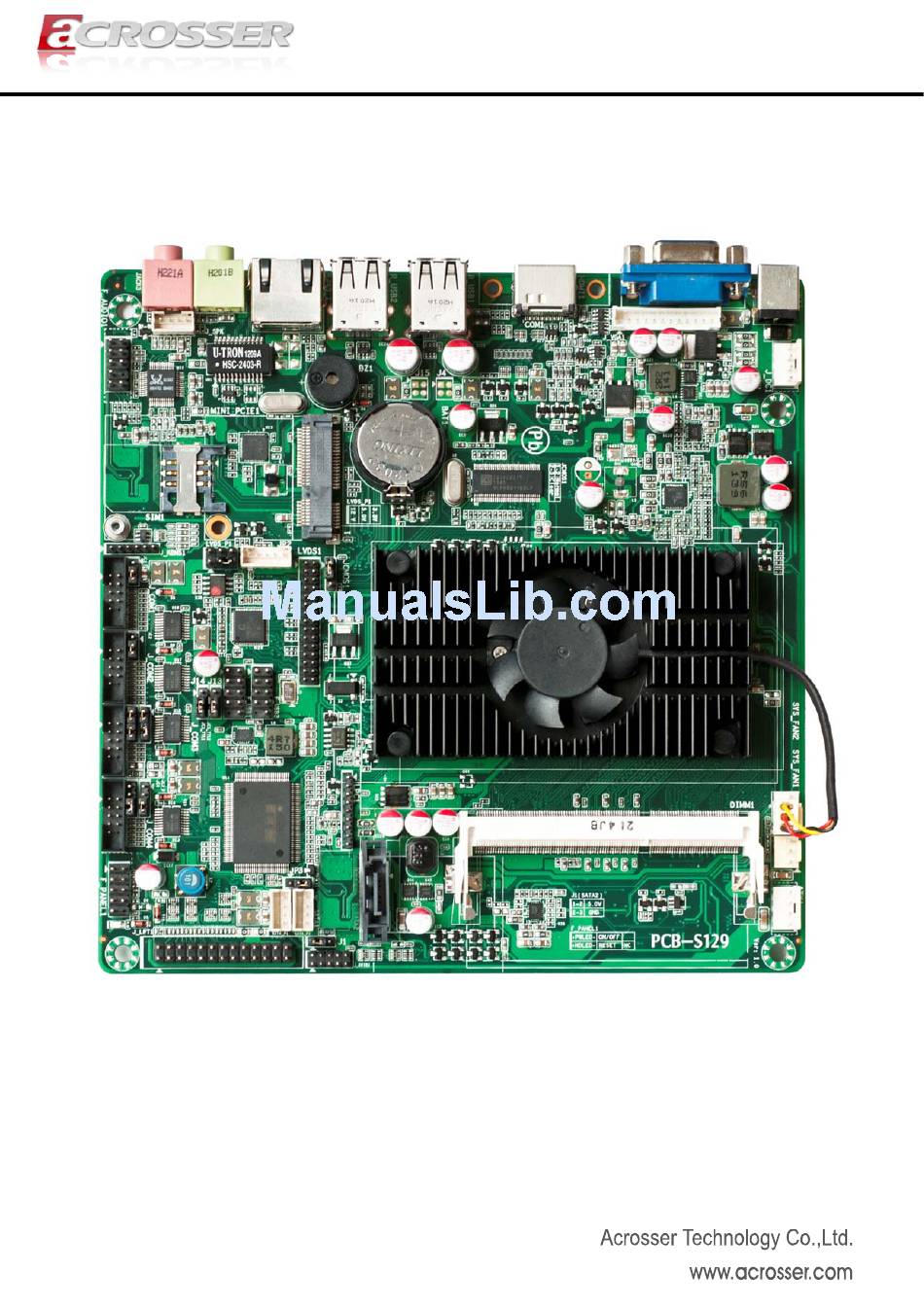

Mainboard illustration (Top Side) SATA 2 Intel D2550 CPU 1.86GHz SATA Connector Intel NM10 PCH Mini PCIe slot DIMM 1 204-Pin DDR3 Socket 220010439-G... -
Page 3: Location & Definition Of Jumpers And Headers
Location & Definition of Jumpers and Headers ATX1 LPT1 JC3_TTL1/2 & JC3_P Power Output Header Pin Header for LPT Serial Port 3 control Header J_DC1 LVDS1 J_COM4 Headers for Power Input Pin Header for LVDS Serial Port 4 Header JCMOS1 Pin Header for LVDS backlight Serial Port 4 control Header Headers for CMOS... - Page 4 Definition of Jumpers and Headers [01]ATX1 Power Output Header（4*1 Pin 2.54 mm） Definition Definition +12V ATX1 [02] Power Input Header（4*1 Pin 2.54 mm） Definition Definition +12V IN +12V IN J_DC1 * Please use the DC Power Cable in accessory to avoid the System damage. [03] CMOS Control Jumper (3*1Pin 2.54 mm) Setting Instruction...
- Page 5 [06] GPIO Header（5*2 Pin 2.00 mm） Definition Definition GPO37(0A02 Bit7) GPI22(050E Bit6) GPO51(0A04 Bit1) GPO38(0538 Bit6) GPI7(050C Bit7) GPI33(0x538 Bit1) GPI36(0x538 Bit4) J_GPIO1 GPO39(0x538 Bit7) [07] Front USB Header（5*2 Pin 2.54 mm） Definition Definition + 5 V + 5 V USBP4- USBP5- USBP4+...
- Page 6 [11] LPT Header (13*2 Pin 2.0mm) Definition Definition LPT1 LPT14 LPT2 -ERR LPT3 LPT16 LPT4 LPT17 LPT5 LPT6 LPT7 LPT8 LPT9 J_LPT1 -ACK BUSY SLCT [12] LVDS Header（15*2 Pin 2.0mm） Definition Definition LVDS_P1* LVDS_P1* LVDS_P1* LVDS_A_DATA0_P LVDS_A_DATA0_N LVDS_A_DATA1_P LVDS_A_DATA1_N LVDS_A_DATA2_P LVDS_A_DATA2_N LVDS_A_CLK_N LVDS_A_CLK_P...
- Page 7 [13] LVDS Back Light Power Header（5*1 Pin 2.00mm） Definition Definition +12V LVDS_ENABKL * It does not support brightness control. [14] LVDS VDD_PANEL Voltage Selection Header（3*2 Pin 2.00mm） Settings Function Output:12V Output:5V LVDS_P1 Output :3.3V(Default) *Attention: Only one jumper can be installed at once! [15] PSON Signal Selection Header（3*1 Pin 2.00mm）...
- Page 8 [18] Serial Port 2 Header（5*2 Pin 2.0 mm） Definition Definition JC2* J_COM2 [19] Serial Port 2 Control Header（3*1 Pin 2.0 mm） Settings Function PIN1 Output :5V PIN1 Output :DCD (Default) [20] Serial Port 3 Header（5*2 Pin 2.0 mm） Definition Definition JC3_P* JC3_TTL1*(RXD) JC3_TTL2*(TXD)
- Page 9 [22] Serial Port 4 Header（5*2 Pin 2.0 mm） Definition Definition JC4* J_COM4 NC/JC4* [23] Serial Port 4 Control Header（4*1 Pin 2.54mm） Settings Function PIN1、9 Output :5V PIN1、9 Output :12V PIN1、9 NC（Default） [24] System Fan1 Header (3*1 Pin 2.54 mm) Definition Definition + 12V SYS_FAN1...
- Page 10 [27] SATA2 DOM Power Supply Selection Header (3*1 Pin 2.00mm) Settings Function Pin 7 Output：+5V Pin 7 Output ： GND （Default） [28] VGA Header（12*1 Pin 2.00 mm）(Reserve for Test) Definition Definition CRT_ON VSYNC HSYNC GREEN BLUE J_VGA1 DDCDAT DDCCLK Note. It can not use USB Hub with power adaptor that connects to USB port. [29] Mini PCIe USB Signal Control Header（3*1 Pin 2.54 mm）...
