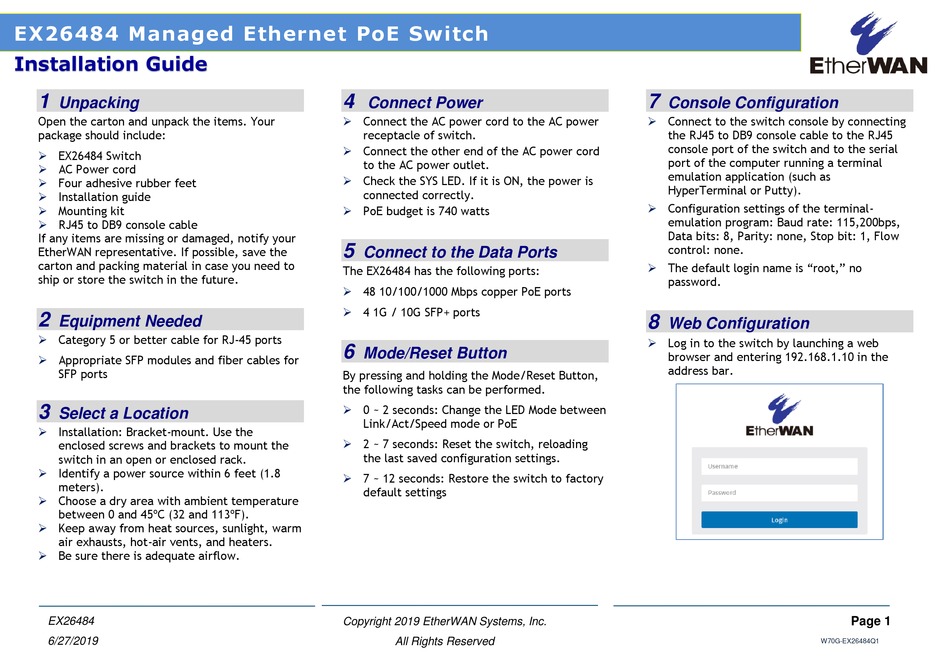

EtherWAN EX26484 Installation Manual

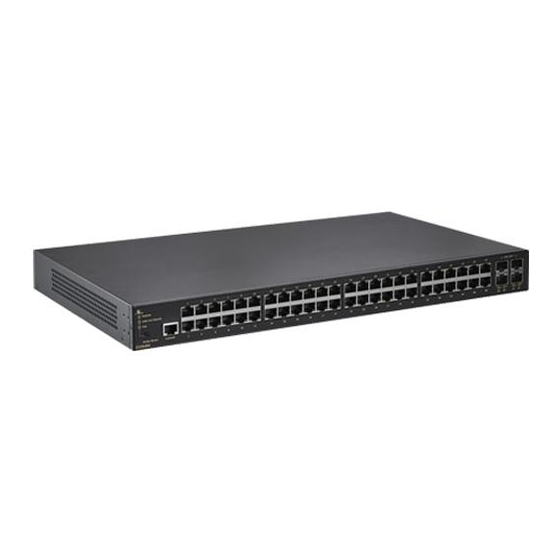

EX26484 Managed Ethernet PoE Switch
Installation Guide
1
Unpacking
Open the carton and unpack the items. Your
package should include:
EX26484 Switch

 AC Power cord
 Four adhesive rubber feet
 Installation guide
Mounting kit

RJ45 to DB9 console cable

If any items are missing or damaged, notify your
EtherWAN representative. If possible, save the
carton and packing material in case you need to
ship or store the switch in the future.
2
Equipment Needed
Category 5 or better cable for RJ-45 ports

 Appropriate SFP modules and fiber cables for
SFP ports
3
Select a Location
 Installation: Bracket-mount. Use the
enclosed screws and brackets to mount the
switch in an open or enclosed rack.
 Identify a power source within 6 feet (1.8
meters).
Choose a dry area with ambient temperature

between 0 and 45ºC (32 and 113ºF).
 Keep away from heat sources, sunlight, warm
air exhausts, hot-air vents, and heaters.
Be sure there is adequate airflow.

EX26484
6/27/2019
4
Connect Power
 Connect the AC power cord to the AC power
receptacle of switch.
 Connect the other end of the AC power cord
to the AC power outlet.
 Check the SYS LED. If it is ON, the power is
connected correctly.
PoE budget is 740 watts

5
Connect to the Data Ports
The EX26484 has the following ports:
48 10/100/1000 Mbps copper PoE ports

 4 1G / 10G SFP+ ports
6
Mode/Reset Button
By pressing and holding the Mode/Reset Button,
the following tasks can be performed.
0 ~ 2 seconds: Change the LED Mode between

Link/Act/Speed mode or PoE
2 ~ 7 seconds: Reset the switch, reloading

the last saved configuration settings.
 7 ~ 12 seconds: Restore the switch to factory
default settings
Copyright 2019 EtherWAN Systems, Inc.
All Rights Reserved
7
Console Configuration
 Connect to the switch console by connecting
the RJ45 to DB9 console cable to the RJ45
console port of the switch and to the serial
port of the computer running a terminal
emulation application (such as
HyperTerminal or Putty).
 Configuration settings of the terminal-
emulation program: Baud rate: 115,200bps,
Data bits: 8, Parity: none, Stop bit: 1, Flow
control: none.
 The default login name is "root," no
password.
8
Web Configuration
 Log in to the switch by launching a web
browser and entering 192.168.1.10 in the
address bar.
W70G-EX26484Q1
Page 1
