Lens Holder Assembly

Source Four jr / jr Zoom Assembly Guide
Fixed Field Angle Lens
1. Position the lens by centering the point dot between the three tabs,
as shown below in figure 8.
2. Center one Tinnerman clip (18) on each tab, and press clip until it is
fully seated. If clips are in uneven positions, lens will be tilted or
loose.
3. Firmly press each clip down and roll it away from the center of the
lens to ensure contact on lens surface.
4. Check lens and make sure the clips hold it securely.
5. Snap on the bushings (17).

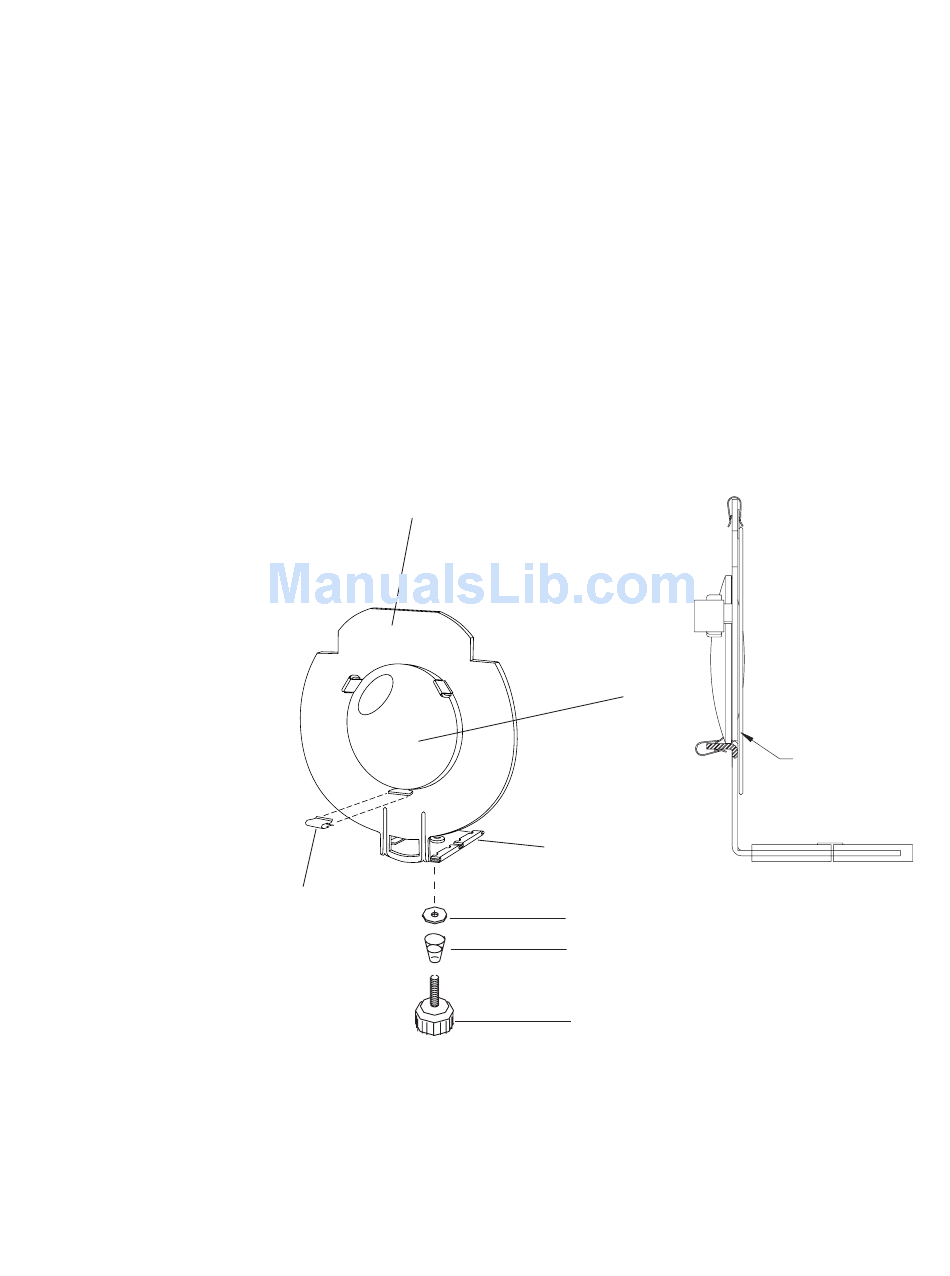

Figure 8
1, 2, 3
18
6, 7, 8
17
19
20
21
Important:
Lens paint dot this side
9
