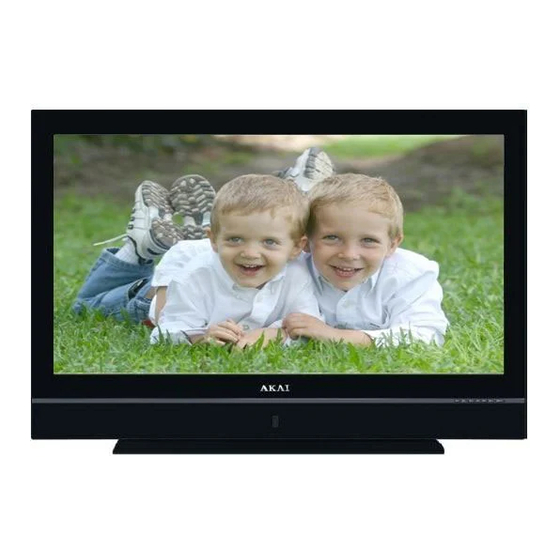

  5. PDP42Z5TA - 42" Plasma TV
  6. Service manual

Akai PDP42Z5TA Service Manual

Hide thumbs Also See for PDP42Z5TA:
Table of Contents

Advertisement

Quick Links

See also: User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PDP42Z5TA and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Akai PDP42Z5TA

Summary of Contents for Akai PDP42Z5TA

  • Page 2: Table Of Contents

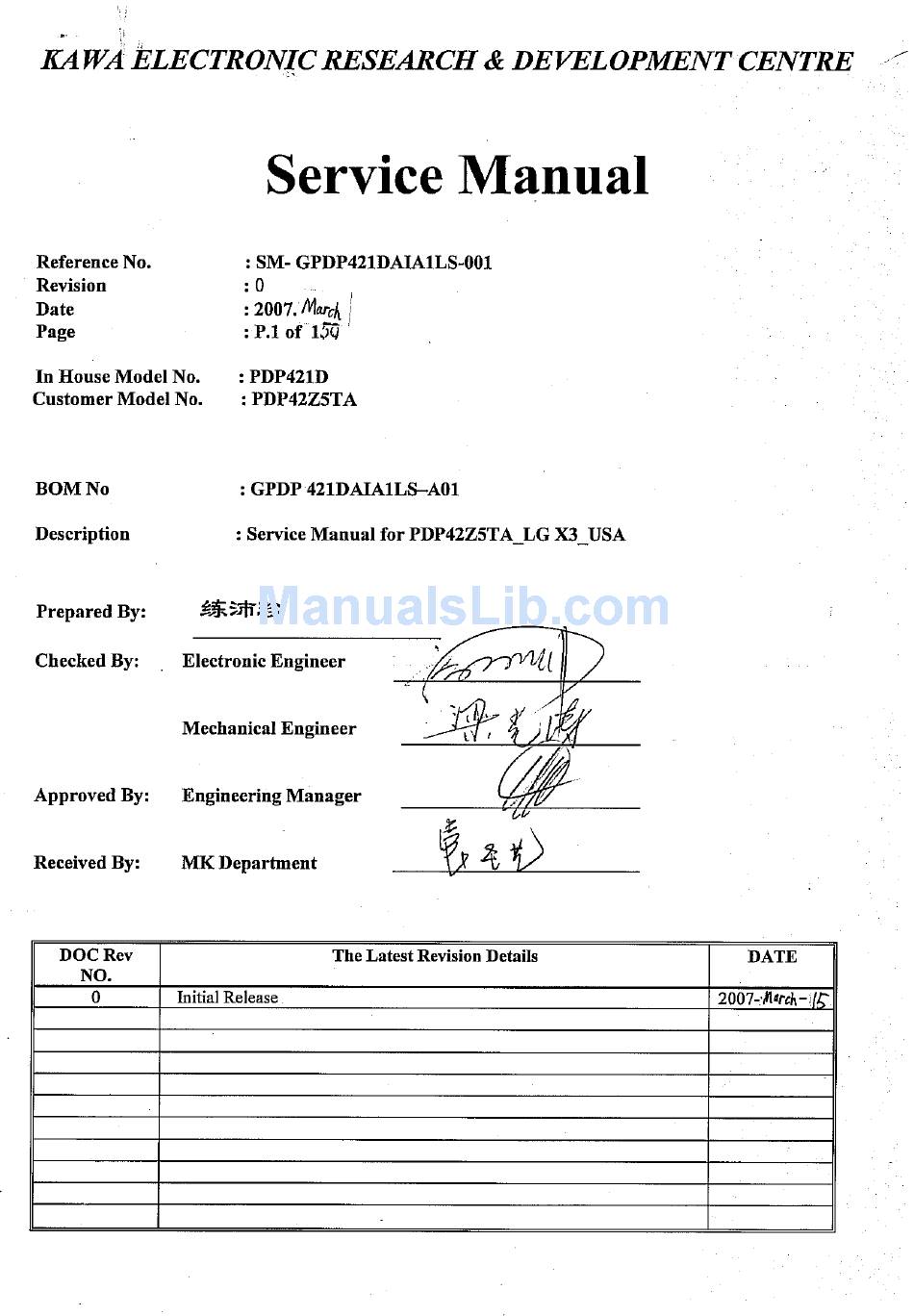

    AKAI SERVICE MANUAL Model: PDP42Z5TA 1. Safety Precaution ……………..……………………………………………………..1~2 2. Trouble Shooting manual of PDP……………………………………………………3 3. Product Specification.………………………………………………………………..4~6 4. Circuit Diagram………………………………………………………………………7~22 5. Basic Operations & Circuit Description……………………………………………..23~26 6. Main IC Information…………………………………………………………………27~98 7. Panel Information……………………………………………………………………99~133 8. Exploded View………………………………………………………………………134 9. Spare Part List………………………………………………………………………135~138 10.

  • Page 3: Safety Precaution

    Safety Precaution The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to CAUTION alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclo sure that may be of sufficient magnitude to RISK OF ELECTRIC SHOCK DO NOT OPEN constitute a risk of electric shock to persons.

  • Page 4: Product Safety Notice

    PRODUCT SAFETY NOTICE 5. When replacing a MAIN PCB in the cabinet, always be certain that all protective are installed properly such as control knobs, Many electrical and mechanical parts in this adjustment covers or shields, barriers, isolation apparatus have special safety-related resistor networks etc.

  • Page 5: Trouble Shooting Manual Of Pdp

    Trouble Shooting Manual of PDP 1 Do not power on 1.1 Please check the AC cable if connect to AC plug. It is true that the connector doesn’t connect to AC plug. Please connect it. 1.2 Please check the AC cable if connect to AC power. It is true that the AC cable doesn’t connect to AC power.

  • Page 6: Product Specification

    Product Specification Product Model PDP42Z5TA TV System NTSC M, ATSC VIDEO System NTSC Screen Size 42” diagonal Display Area 921.6mm(H) x 519.2mm(V) ± 0.5mm Aspect Ratio 16:9 External Size (with stand) 1039.8 mm (W) x 757 mm (H) x 275 mm (D) Net Weight (with stand) 35.5 kg...

  • Page 7: Support The Signal Mode

    Support the Signal Mode A. VGA Mode Horizontal Vertical Resolution Frequency Frequency (KHz) (Hz) 640 x 480 31.50 60.00 35.16 56.25 800 x 600 37.90 60.32 48.08 72.19 1024 x 768 48.40 60.00 B. YPbPr Mode Horizontal Vertical Resolution Frequency Frequency (KHz) (Hz)

  • Page 8: Remote Control

    Remote Control (Note: Details refer to AKAI TV Universal Remote Control Programming & Codes Guide.) Standby( ): Press to turn on and off. Mute( ): Press this button to quiet the sound. Press again to reactivate the sound. Press these buttons to select control of the TV, DVD, VCR or Set-top Box device.

  • Page 9: Circuit Diagram

    POWER BOARD DTVS205CH201A MT5112BD Digital/Analog PDP panel Standby 5V DTV Demodulator Tuner CVBS/SIF 10Bit LVDS 24VA (For Class D) MAIN BOARD HDMI1 Two to one TMDS HDMI Switch HDMI2 COAXIAL 24C16 YPbPr1 EEPROM MT5371AG YPbPr2 Flash (Option) NJRC4558 Audio Scaler Audio Buffer Output ATSC...
  • Page 10 Parts position PSU B/D SDM-U B/D XSUS B/D YSUS B/D XBUS B/D Keypad B/D ABUS Right EMI Filter+AC Inlet Remote External control speaker ABUS-Left Main B/D receiver Logic B/D behind the Main B/D 8／148...
  • Page 11 MT5372RAV6 MT5372 (PBGA) REFERENCE DESIGN - 4 LAYERS DV33 2,4,5,6,7,11,12,13 DV33 AMP_GND History DATE AMP_GND RA-V1 +24V POWER INPUT +24V RA-V0 INITIAL VERSION 2006/07/14 2,11 +12V +12V RA-V1 2006/07/31 2,7,8,9,11,13 +5VSB 2,7,10,11,12,13,14 +5VSB 1000pF/NC C0603/SMD DV33SB 2,5,6,7,10,11,12,13,14 DV33SB VS_ON G ND 2,3,4,5,6,7,8,9,10,11,12,13,14 SYS_P WR SYS_P WR...
  • Page 12 +5V_TUNER 1000mA AP1513/SOP-8 FB/75R/1A/0805 720mA AP1513 RA-V3 BEAD/SMD/0805 DV12 CB16 220uF/16V 0.1uF L7805 220uF/16V CB17 FB/75R/1A/0805 LTRH104R-270 FB/75R/1A/0805 100UF/220UF/SMD 0.1uF 100UF/220UF/SMD C0603/SMD TO220/DIP/SU BEAD/SMD/0805 CB18 S-LF125M CB19 BEAD/SMD/0805 C0603/SMD CB20 0.1uF/NC 0.1uF/NC 1.2K CB21 0.1uF R0603/SMD C0603/SMD C0603/SMD R0603/SMD 220uF/16V 0.1uF 220uF/16V OCSET...
  • Page 13 AGND_AFE 1,2,4,5,6,7,8,9,10,11,12,13,14 AGND_AFE +30V_TUNER +30V_TUNER DV33_DM DV33_DM 1,2,4,5,6,7,8,9,10,11,12,13,14 +5V_TUNER 2,11 +5V_TUNER CVBS2 CVBS2 CVBS3 CVBS3 IF_AGC S Y0 IF_AGC S Y0 FAT_IN+ FAT_IN+ FAT_IN- S Y1 FAT_IN- S Y1 TUNER_SCL1 TUNER_SCL1 TUNER_SDA1 S Y2 TUNER_SDA1 S Y2 TUNER INTERFACE AV / SV VIDEO INPUT CVBS0 CVBS0 MPX1...
  • Page 14 DVDD33 DV33_DM DV33_DM DV18_DM DV18_DM 1,2,3,5,6,7,8,9,10,11,12,13,14 GLOBAL SIGNAL RESERVE HEAT-SINK SPACE MT5112_IF_AGC IF_AGC CB67 R0603/SMD 47nF IF_AGC IF_AGC C0603/SMD DV33 FAT_IN+ CLOSE TO MT5112 FAT_IN+ MT5112AD_BD/TQFP100 FAT_IN- FAT_IN- TUNER_SCL1 TUNER_SCL1 4.7K TUNER_SDA1 TUNER_SDA1 R0603/SMD FAT_IN- CB68 ADVDD33_1 TUNER INTERFACE ADVDD33 10nF DV33 GPIO1(P1.1)
  • Page 15 OPWRSB OPWRSB DV33 ORESET# 1,2,4,6,7,11,12,13 DV33 ORESET# AV33 2,6,10,11,14 AV33 DV26_DDR OPCTRL0 2,6,8 DV26_DDR OPCTRL0 AV12 OPCTRL1 RESERVE HEAT-SINK SPACE AV12 OPCTRL1 OPCTRL2 OPCTRL2 DV33SB OPCTRL3 1,2,6,7,10,11,12,13,14 DV33SB OPCTRL3 OPCTRL4 1,13 OPCTRL4 DV26_DDR DV33 OPCTRL5 1,2,3,4,6,7,8,9,10,11,12,13,14 OPCTRL5 OPCTRL6 OPCTRL6 OPCTRL7 GLOBAL POWER OPCTRL7 OXTALI...
  • Page 16 DV33 1,2,4,5,7,11,12,13 DV33 AV33 2,10,11,14 AV33 DV33SB AV12 AV12 AV33 AV33 DV26_DDR 2,5,8 DV26_DDR AV15 AV15 AVCC_SRV AVCC_HDMIPLL AVCC_ADCPLL AVCC_VAD0 AVCC_AADC AV12 AV12 FB/70R/500mA/0603 150uH/1A/DIP15 CB109 CB110 CB111 BEAD/SMD/0603 CB112 CB113 CB114 L/IND/DIP/P10.0 CB115 CB116 DV33SB 1,2,5,7,10,11,12,13,14 DV33SB 0.1uF 0.1uF 0.1uF 4.7uF/6.3V 0.1uF...
  • Page 17 POWER ON RESET# CIRCUIT DV33 DV33SB POWER DOWN RESET# CIRCUIT CE35 10Kx4 R398 R397 220uF/16V R0603/SMD R0603/SMD RN0603/SMD 4.7K 4.7K/NC 100UF/220UF/SMD ORESET# CE36 2N3904 R0603/SMD R0603/SMD ORESET# +5VSB 1,2,8,9,11,13 +5VSB 1,2,10,11,12,13,14 +5VSB 2N3904 47uF/16v JTAG_RST# R0603/SMD SOT23/SMD 100UF/220UF/SMD CB181 JTAG_TDI DV33 1,2,4,5,6,11,12,13 DV33...
  • Page 18 DV13_DDR DV13_DDR DV26_DDR DV26_DDR DV26_DDR DV26_DDR RWE# 22x4 MEM_WE# MEM_WE# 75x4 RDQ0 47x4 MEM_DQ0 75x4 R CAS# MEM_CAS# MEM_CAS# RDQ1 MEM_DQ1 R RAS# MEM_RAS# MEM_RAS# RDQ2 MEM_DQ2 RCS# RN0603/SMD MEM_CS# MEM_CS# RN0603/SMD RDQ3 RN0603/SMD MEM_DQ3 RN0603/SMD MEM_DQ0 MEM_DQ15 MEM_DQ16 MEM_DQ31 DQ15 DQ15 R A3...
  • Page 19 AGND_AFE 1,2,3,4,5,6,7,8,10,11,12,13,14 AGND_AFE AVR_IN RCA3X3 AV1_IN NEARLY YPBPR CONNECTOR NEARLY MT5372 AV9-8.4-13BA R159 R153 R147 SO Y0 CB286 RA-V1 0R/NC 0R/NC R0603/SMD C0603/SMD R0603/SMD R0603/SMD Y0_IN R148 CB287 YPBPR0R_IN R149 YPBPR0R_IN1 PR1_IN R394 R395 Y1_IN FB/70R/500mA/0603 10nF 1.5K R0603/SMD R0603/SMD SYL_IN1 BEAD/SMD/0603 C0603/SMD...
  • Page 20 DEL: D17~D27_D60_P5_U20_Q10_Q19_CB340 DEL; CB339_R203_R206_R207_U19 DV33 1,2,4,5,6,7,11,12,13 DV33 DEL: R36_RR82_R83_R208_R209_R210_R211_R212_R216_R217_R218_R390_R408 1,2,7,8,9,11,13 AV33 AV33 DV33SB 1,2,5,6,7,11,12,13,14 DV33SB AV33 2,6,11,14 AV33 AV15 AV15 R204 R205 AGND_HDMI 1,2,3,4,5,6,7,8,9,11,12,13,14 AGND_HDMI R0603/SMD R0603/SMD OSCL2 OSDA2 AGND_AFE 1,2,3,4,5,6,7,8,9,11,12,13,14 AGND_AFE PULL HIGH AV33 HDMI HDCP EEPROM 2006.12.16 OSDA2 OSDA2 OSCL2 OSCL2...
  • Page 21 CB361 VGAR_IN1 4.7uF/6.3V C0603/SMD R247 VGAR CB362 R0603/SMD VGAL_IN1 4.7uF/6.3V C0603/SMD R248 VGAL DV33SB CB363 R0603/SMD DVDD +5VSB YPBPR0R_IN1 3.3uF/10V C0603/SMD R249 YPBPR0R +12V 1,13 +12V CB364 R0603/SMD DV33SB FB/NC DVDD 5V_A R258 1,2,7,8,9,13 YPBPR0L_IN1 4.7uF/6.3V C0603/SMD R250 YPBPR0L FB/NC SCL14 SIF_SCL DV33...
  • Page 22 DV33 DV33 1,2,4,5,6,7,11,13 AMP_GND AMP_GND 1 CB405 4.7uF/6.3V C0603/SMD +5VSB CB410 CE55 +5VSB 1,2,7,10,11,13,14 R2S15102NP CB409 R299 1000uF/35v QFp20 4.7uF/6.3V R298 10K +24V 150K R297 C0603/SMD +24V AO1AUXL CB408 C0603/SMD R0603/SMD CAP7X16\5 R0603/SMD 4.7uF/6.3V LOUT PWM1 R0603/SMD C0603/SMD CB411 R300 CB412 DV33SB DV33SB...
  • Page 23 +5VSB 1,2,7,10,11,12,14 +5VSB +5VSB DV33SB DV33SB 1,2,5,6,7,10,11,12,14 DV33SB +12V RA-V2 +12V LVDS OUT(Include PDP and 32' LCD LVDS interface) 1,2,7,8,9,11 AGND_LVDS 1,2,3,4,5,6,7,8,9,10,11,12,14 AGND_LVDS R326 R327 CPUGO /PDPGO :INPUT TO PDP 1,2,3,4,5,6,7,8,9,10,11,12,14 10K/NC 10K/NC R324 R325 IRQ /READY :PDP INPUT TO MT8202 Option1 CPUGO R328...
  • Page 24 Option: Only for HDMI 3 +5VSB HDMI+5V_A NC/FPC/20P/0.5mm/H DDC5V_A CB439 0.1uF FHBAT54C +5VSB NS/EEPROM 24C04 R416 WP_A GPIO_8 DDC_SCL_A DDC_SDA_A R417 P WR5V 0R/NC RX_A_2+ RX2+ DV33H DV33 NC/FHBAT54 RX_A_2- RX2- RX_A_1+ RX1+ EDID EEPROM for HDMI 1 RX_A_1- FB/70R/500mA/0603 DV33H RX1- R441...

  • Page 25: Basic Operations & Circuit Description

    Basic Operations & Circuit Description MODULE There are 1 pcs panel and 9 pcs PCB including 2 pcs X/Y Sustainer board, 1 pcs XBUS board, 1 pcs SDM-U board, 1 pcs SDM-D board, 2 pcs ABUS (L and R) board, 1 pcs Logic (Signal Input) board, and 1 pcs PSU board in the Module.
  • Page 26 Basic operation of Plasma Display 1. After turning on power switch, PSU board sends 5Vst-by Volt to Main IC MT5371 waiting for ON signals from Key Switch or Remote Receiver. 2. When the ON signal from Key Switch or Remote Receiver is detected, MT5371 will send ON Control signals to Power.

  • Page 27: Pcb Function

    PCB function 1. PSU and Sub PSU: (1). Input voltage: AC 120V, 60Hz. (2). To provide power for PCBs. 2. Main board: To converter S signals, AV signals, Y Pb/Cb Pr/Cr signals, HDMI signals and D-SUB signals to digital ones and to transmit to Control board. 3.

  • Page 28: Pcb Failure Analysis

    PCB failure analysis 1. LOGIC: a. Abnormal noise on screen. b. No picture. 2. MAIN : a. Lacking color, Bad color scale. b. No voice. c. No picture but with signals output and OSD. d. Abnormal noise on screen. 3. PSU and Sub PSU: No picture, no power output. 4.

  • Page 29: Main Ic Information

    Main IC Specifications - MT537x Application Note - MT5112BD CE2836 24-bit, 192KHz. CODEC: 6 ch DAC, 5 Input Mux Stereo ADC - R2S15102NP Digital Power Amplifier R2S15102NP 27／148...
  • Page 30 28／148...
  • Page 31 29／148...
  • Page 32 30／148...
  • Page 33 31／148...
  • Page 34 32／148...
  • Page 35 33／148...
  • Page 36 34／148...
  • Page 37 35／148...
  • Page 38 36／148...
  • Page 39 37／148...
  • Page 40 38／148...
  • Page 41 39／148...
  • Page 42 40／148...
  • Page 43 41／148...
  • Page 44 42／148...
  • Page 45 43／148...
  • Page 46 44／148...
  • Page 47 45／148...
  • Page 48 46／148...
  • Page 49 47／148...
  • Page 50 48／148...
  • Page 51 49／148...
  • Page 52 50／148...
  • Page 53 51／148...
  • Page 54 52／148...
  • Page 55 53／148...
  • Page 56 54／148...
  • Page 57 55／148...
  • Page 58 56／148...
  • Page 59 57／148...
  • Page 60 58／148...
  • Page 61 59／148...
  • Page 62 60／148...
  • Page 63 61／148...
  • Page 64 62／148...
  • Page 65 63／148...
  • Page 66 64／148...
  • Page 67 CE2836 Microelectronics 24-bit, 192 KHz. CODEC: 6 Ch DAC, 5 Input Mux Stereo ADC FEATURES DESCRIPTION • Six Channel Audio DAC. The CE2836 is a mixed signal CMOS monolithic audio Codec. It contains six multi-bit sigma delta DAC and a - 104 dB SNR (A eighted).
  • Page 68 CE2836 CE2836 Performance DAC PERFORMANCE SPECIFICATIONS Item Spec. Audio Output Level 1 Vrms Audio Bandwidth 20Hz - 20 KHz +/- 0.1 dB SNR (A-weight) >104 dB THD + NOISE (A-weight, 0 dB input) < -82 dB Dynamic Range 94 dB Channel Separation <...
  • Page 69 CE2836 Description (continue) The DAC support conversion rate from 32K to 192KHz while the ADC from 32K to 96K. The CE2836 support 32, 24, 20 and 16-bit input data. It also support multiple sampling frequency data. Each DAC has its own individual volume control. XCK REQUIREMENT The CE2836 supports 32K, 44.1K, 48K, 96K and 192K sampled audio in DAC operations and32K, 44.1K, 48K and 96K sampled audio in ADC operations.
  • Page 70 CE2836 Table 2. Sampling ADC XCK Requiremen Rate DACDIV==0 DACDIV==1 XCK Freq 12.288 MHz 8.192 Mhz. 24.576 Mhz 16.384 Mhz 32 K SRC[1:0] [10], 384 fs (#), 256 fs [10], 768fs (#), 512 fs XCK Freq 16.934 Mhz 11.29 Mhz. 33.869 Mhz 22.579 Mhz 44.1K...
  • Page 71 CE2836 PIN ASSIGNMENT AOR1 DIN1 AOL1 DIN2 AOR2 DIN3 AOL2 DOUT AOR3 CE2836 AOL3 AVDD ADFS AGND ADBCK ADVCM ADXCK AGND ADVRF AGND AINR5 PIN DESCRIPTION Pin Name Pin # Type Description DIGITAL No connection. It can be tied to GND. Serial command port data line.
  • Page 72 CE2836 PIN DESCRIPTION (Continued) Pin Name Pin # Type Description DIN3 DAC Channel 3 serial audio data input. DOUT Serial ADC output +3.3V Digital power supply, 3.3 Volt. Digital ground ADFS ADC left/right channel clock pin. Please refer to Figure 1 PCM data format for its definition.
  • Page 73 CE2836 PIN DESCRIPTION (Continued) Pin Name Pin # Type Description ADVCM ADC comment mode voltage. It should be decoupled to AGND with a 22 uF in parallel with a 0.1 uF. Signal level is AVDD/2. AGND Analog ground pin. AVDD +3.3V DAC power supply.
  • Page 74 CE2836 DIGITAL AUDIO SERIAL INTERFACE There are two independent PCM serial ports, one for DAC and one for ADC. The DAC digital serial interface consists of 3 serial input pins, DIN1, DIN2, DIN3, one serial clock input/output pin, DABCK, and one left/right indicator input/output pin, DAFS.
  • Page 75 CE2836 Figure 1. Audio Serial Input Data Format 1/fs left Channel right channel DIN,DOUT Right Justified Input Format left Channel right channel DIN,DOUT Left Justified Input Format left Channel right channel DIN,DOUT I S Input Format DIN,DOUT data = 0 Channel 0 Channel 1 Last Channel...
  • Page 76 CE2836 DAC INFINITE ZERO DETECTION The CE2836 DAC has an Infinite Zero Detection circuit which detects zero in the Audio Serial Port that lasts for approximately 0.2 sec. By default, the zero detection circuit is on. DAC Digital Attenuation Each DAC contains an Digital Attenuation block. The attenuation values are hold in the Volume Control Registers. The Value 80H corresponds to Full Scale, 0dB.
  • Page 77 CE2836 ADC Noise Gate Noise Gate remove hissing noise during silence period. It is useful for recording noisy program. While Noise Gate is enabled the ADC digital output will be zeroed if the signal level below a predetermined value for about 0.5 seconds. The noise Gate is controlled by the same ADC PROC.
  • Page 78 CE2836 SERIAL PORT CONTROL REGISTER ASSIGNMENT There are 8 registers dedicated to the CE2836 for chip functional programming, The register addresses assignments are Address Default Register Register Function (decimal) Value CREG0[7:0] DAC Control REG0: Data input format, de-emphasis filter selection CREG1[7:0] DAC Control REG1: Input format and PLL output fre- quency selection...
  • Page 79 CE2836 CONTROL REGISTERS DESCRIPTION CREG0, DAC Control Register 0 ( =hex00, default=hexA0) ADRS CREG0[7:0] ADDR[3:0] BIT 7 BIT 6 BIT 5 BIT 4 BIT 3 BIT 2 BIT 1 BIT 0 Hex 00 FMT[1:0] NBIT[1:0] AMUTE DEEMP FSMPL[1:0] Default Value FMT[1:0] Digital Serial Bus Format Select 00: - Normal or Right Justified Format.
  • Page 80 CE2836 CREG1, DAC Control Register 1( =hex01, default=hex80) ADRS CREG1[7:0] ADDR[3:0] BIT 7 BIT 6 BIT 5 BIT 4 BIT 3 BIT 2 BIT 1 BIT 0 Hex 01 SRC[1:0] CKDIV2 MUTE56 MUTE34 MUTE12 AUTODET Default Value AUTODET Automatically detects the serial audio input data sampling rate clock frequency. 0: - do not use auto-detect 1: - automatically detects the serial audio input data sampling rate and clock frequency.
  • Page 81 CE2836 CREG2 - 7, DAC Volume Registers for channel 1 to 6, ( =hex02 - hex07, default=hex80) ADRS Volume Registers ADDR[3:0] BIT 7 BIT 6 BIT 5 BIT 4 BIT 3 BIT 2 BIT 1 BIT 0 Hex 02 Channel 1 left volume register, VOLREGL1[7:0] Hex 03 Channel 1 right volume register, VOLREGR1[7:0] Hex 04...
  • Page 82 CE2836 CREG 8, ADC Proc Register ( =hex08, default=hex82) ADRS CREG0[7:0] ADDR[3:0] BIT 7 BIT 6 BIT 5 BIT 4 BIT 3 BIT 2 BIT 1 BIT 0 Hex 08 NGATE NGTH[1:0] ALCHTM ALCEN ALC[2:0] Default Value NGATE: Noise Gate 0: - Noise Gate Disabled.
  • Page 83 CE2836 CREG9, ADC Control Register ( =hex09, default=hexA0) ADRS CREG0[7:0] ADDR[3:0] BIT 7 BIT 6 BIT 5 BIT 4 BIT 3 BIT 2 BIT 1 BIT 0 Hex 09 FMT[1:0] NBIT[1:0] SRC[1:0] CKDIV2 Default Value MT[1:0] Digital Serial Bus Format Select for ADC. 00: - Normal or Right Justified Format.
  • Page 84 CE2836 CREGA, Chip Control Register ( =hex0A, default=hex00) ADRS CREG1[7:0] ADDR[3:0] BIT 7 BIT 6 BIT 5 BIT 4 BIT 3 BIT 2 BIT 1 BIT 0 Hex 0A DAPWD ADMSTR ADPWD ZCBYP HPFBYP DAMSTR Default Value DAMSTR: Configure the DAC PCM Serial Port. 0: - Slave Mode 1: - Master Mode.
  • Page 85 CE2836 CREGB, ADC Input Enable ( =hex0B, default=hex01) ADRS CREG1[7:0] ADDR[3:0] BIT 7 BIT 6 BIT 5 BIT 4 BIT 3 BIT 2 BIT 1 BIT 0 Hex 0B AMUX[4:0] Default Value AMUX[4:0]: ADC Input Channel Enable. 00001: - AIN1 00010: - AIN2 00100: - AIN3 01000: - AIN4...
  • Page 86 CE2836 APPLICATION CONNECTION EXAMPLE: Analog 3.3 Volt 180 Ohm 100 uF 220 uF Digital AVDD DAVH 3.3 Volt DVDD DAVL 22 uF DGND CE2836 10 uF +3.3 Volt AOR1 680 ohm 10 uF AOL1 I C Serial 10 uF Interface AOR2 10 uF AOL2...
  • Page 87 CE2836 SUGGESTED ANALOG RECONSTRUCTION FILTER A second Sallen Key low pass reconstruction filter is recommend to remove the high frequency sigma delta modulator noise. The filter’s component values and characteristic are shown in the following figures. Sallen Key 2nd order LP filter 1000 pF 4.7 uF 2.7 K...
  • Page 88 CE2836 The ADC converters have a input buffer. The buffers have a equivalent input resistance of 20K ohm. To ensure the performance it is recommended that the applications should have a simple low pass filter to remove the high frequency noise. Recommended ADC input circuits 20 K...
  • Page 89 CE2836 TIMING DIAGRAM Figure 3. Audio Serial Interface Timing Requirement tbck tbck tbck DIN, DOUT Figure 4. Serial Command Port Write Timing Requirement tSCL tHIGH tLOW SDA, SCL tHD,dat tSU,dat tSU,sta tSU,stp tHD,sta stop start start stop 87／148...
  • Page 90 CE2836 ABSOLUTE MAXIMUM RATINGS Symbol Characteristics Units Power Supply Voltage (Measured to GND) -0.5 +7.0 Digital Input Applied Voltage GND-0.5 Digital Input Forced Current -100 Digital Output Applied Voltage GND-0.5 +0.5 Digital Output Forced Current -100 TDsc Digital Short Circuit Duration (single output high state to Vss) Analog Short Circuit Duration (single output to VSS1) infinite Ambient Operating Temperature Range...

  • Page 91: Electrical Characteristics

    CE2836 ELECTRICAL CHARACTERISTICS Parameter Characteristics Units Power Supply AVDD Analog power supply voltage DVDD Digital power supply voltage Analog Current Digital Current Audio DAC Characteristics Full Scale Output Voltage to a 10K load 1.02 Vrms Reference voltage VDD/2 Digital Characteristics Digital Input Voltage, Logic HIGH, TTL Compatible Inputs.
  • Page 92 CE2836 Parameter Characteristics Units Audio FS Hold Time With Respect To Rising Edge of BCK Serial Command Port fSCL SCL Clock Frequency tSU,sta Start condition set up time tHD,sta Start condition hold time tSU,stp Stop condition set up time SCL Low time HIGH SCL High time SCL &...
  • Page 93 CE2836 PACKAGING INFORMATION (LQFP 48 PIN) Dimensions SYMBOLS SYMBOLS norm norm 1.68 9.0 BSC 0.05 0.15 7.0 BSC 1.35 1.45 0.45 0.65 0.75 0.17 0.22 0.27 0.63 1.03 0.09 0.20 1.00 REF 9.0 BSC 7.0 BSC LQFP 48 (7 X 7 mm) 91／148...
  • Page 94 92／148...
  • Page 95 93／148...
  • Page 96 94／148...
  • Page 97 95／148...
  • Page 98 96／148...
  • Page 99 97／148...
  • Page 100 98／148...

  • Page 101: Panel Information

    Product Specification of 42XGA PDP Module Specification Approval 99／148...

  • Page 102: Warning And Cautions

    Product Specification of 42XGA PDP Module 0. Warning and Cautions WARNING This product uses a high voltage (450 V max.). Do not touch the circuitry of this product with your hands when power is supplied to the product or immediately after turning off the power. Be sure to confirm that the voltage is dropped to a sufficiently low level.
  • Page 103 Product Specification of 42XGA PDP Module CAUTION General Do not place this product in a location that is subject to heavy vibration, or on an unstable surface such as an inclined surface. The product may fall off or fall over, causing injuries. When moving the product, be sure to turn off the power and disconnect all the cables.
  • Page 104 Product Specification of 42XGA PDP Module Design (continued) This product uses high-voltage switching and a high –speed clock. A system using this product should be designed so that it does not affect the other systems, and should be thoroughly evaluated. This product has a glass display surface.
  • Page 105 Product Specification of 42XGA PDP Module Because this product uses a high voltage, connecting or disconnecting the connectors while power is supplied to the product may cause malfunctioning. Never connect or disconnect the connectors while the power is on. Immediately after power has been turned off, a residual voltage remains in the product.

  • Page 106: General Description

    Product Specification of 42XGA PDP Module 1. GENERAL DESCRIPTION DESCRIPTION The PDP42X2##2# 42-inch 16:9 color plasma display module with resolution of 1024(H) × 768(V) pixels. This is the display device which offers vivid colors with adopting AC plasma technology by LG Electronics Inc. FEARURES High peak brightness (1,000cd/m Typical) and high contrast ratio (5,000:1 Typical) enables user to create...
  • Page 107 Product Specification of 42XGA PDP Module ELECTRICAL INTERFACE OF PLASMA DISPLAY The PDP42X2#### requires 8bits or 10bits of digital video signals for each RGB color. This is the display device which offers vivid colors with adopting AC plasma technology by LG Electronics Inc.
  • Page 108 Product Specification of 42XGA PDP Module BLOCK DIAGRAM (LVDS input) Controller Memory Controller Input Interface Controller (External Power) Driver Vs (190V~200V) Timing Controller Va (60+1V) RCLK+ RCLK- Vcc (5V) Display data, Driver timing Color PDP 1024 X 768 pixels Address Driver ☞...
  • Page 109 Product Specification of 42XGA PDP Module Item Symbol Condition Min. Max. Unit Remarks Logic Voltage 25°C Address Voltage 25°C Sustain Voltage 25°C Item Condition Min. Typ. Max. Unit Adjustable Range 4.75 5.25 Voltage Stability ±3.0 Average Current mean Peak Current Ripple Noise Item...
  • Page 110 Product Specification of 42XGA PDP Module Insulation - In order to use information technology equipment, the end-user product should satisfy the insulation and material requirements on Safety Standards of IEC 60950, EN 60950, UL60950 and CSA C22.2 No 60950, or IEC 60065, EN 60065, UL 6500 and CSA C22.2 No 60065 - The screen filter(Black mask filter) of end-user products should satisfy the supplementary insulation.
  • Page 111 Product Specification of 42XGA PDP Module Power Supply Sequence (5V) ☞1) Min. 2 frame Min. 1 sec DISPEN Normal Display Symbol Description Min. Max. unit Time interval between 90% of Vcc and 10% of Vs when Power On Time interval between 10% of Vs and 90% of Vcc when Power Off Rising Time of Va (10% to 90%) Falling Time of Va (90% to 10%)
  • Page 112 Product Specification of 42XGA PDP Module LVDS Signal Definitions and Functions of LVDS Signal Symbol Definition and Function Related Output Signal RA＋ Channel-A Pos. Receiver Input R4, R5, R6, R7, R8, R9, RA－ Channel-A Neg. Receiver Input RB＋ Channel-B Pos. Receiver Input G5, G6, G7, G8, G9, B4, RB－...
  • Page 113 Product Specification of 42XGA PDP Module LVDS Signal (continued) Signal Input sequence of LVDS Receiver RxCLK IN (Differential) Previous cycle Next cycle R1-1 R0-1 R3-1 R2-1 B7-1 B6-1 G6-1 G5-1 R5-1 R4-1 ※ DE : BLANK, VS : Vsync, HS : Hsync 8bit application twisted pair cable...
  • Page 114 Product Specification of 42XGA PDP Module VSYNC Vsync Hsync 1 2 3 1 2 3 1 2 3 1 2 3 768+N 768+N 768+N 768+N VSYNC Vsync HSYNC Hsync 768+N PIX_CLK BLANK ( Period of valid data ) DATA HSYNC Hsync 1024 PIX-CLK...
  • Page 115 Product Specification of 42XGA PDP Module Input Signal Timing Specification 60Hz Mode Symbol Min. Typ. Max. Unit Remark 1 frame = 16.604 16.666 16.728 T vsync ㎳ (H) 59.8Hz ~ 60.2Hz (803H) (806H) (809H) 168 (8H) ㎲ (H) 84 (4H) 124 (6H) ㎲...
  • Page 116 Product Specification of 42XGA PDP Module Input Signal Timing Specification (Continued) 50Hz Mode Symbol Min. Typ. Max. Unit Remark 1 frame = 19.850 19.995 20.139 T vsync ㎳ (H) 49.65Hz ~ 50.38Hz (960H) (967H) (974H) 168 (8H) ㎲ (H) 84 (4H) 124 (6H) ㎲...
  • Page 117 Product Specification of 42XGA PDP Module 115／148...
  • Page 118 Product Specification of 42XGA PDP Module Chip ID Sub Address Sub Data ☞ First 1byte data must be 0001 1100 (0x1C) last 1bit is 0(write mode). 116／148...
  • Page 119 Product Specification of 42XGA PDP Module C Register Description C Register Brief R : Reserved(don’t care) C Data Addr. Sync Mode Registers 0x01 sync_auto hz_select Bright Mode Registers 0x08 br_mode_50(1:0) br_mode60(1:0) Power Save Mode Registers 0x09 ps_mode_50(2:0) ps_mode_60(2:0) Gamma Mode Registers 0x0B gamma_50(1:0) gamma_60(1:0)
  • Page 120 Product Specification of 42XGA PDP Module C Register Description ● Sync Mode Registers C Data Addr. Sync Mode Registers 0x01 sync_auto hz_select Default • sync_auto : Sync automatic / manual mode selection 1:auto, 0:manual • hz_select : Frequency mode selection 0 : 50Hz, 1 : 60Hz When the sync_auto is “high”, hz_select is ignored.
  • Page 121 Product Specification of 42XGA PDP Module ● Power Save Mode Registers C Data Addr. Power Save Mode Registers 0x09 ps_mode_50(2:0) ps_mode_60(2:0) Default • ps_mode_50(2:0) : Power save mode for 50Hz • ps_mode_60(2:0) : Power save mode for 60Hz Sustain number 000 : normal mode 110 : 87.5% mode 101 : 75% mode...
  • Page 122 Product Specification of 42XGA PDP Module ● Gamma Mode Registers C Data Addr. Gamma Mode Registers 0x0B gamma_50(1:0) gamma_60(1:0) Default • gamma_50(1:0) : Gamma mode for 50Hz • gamma_60(1:0) : Gamma mode for 60Hz Value Table# Contents of table Г = N 2.2 for R, G, B Gamma A Г...
  • Page 123 Product Specification of 42XGA PDP Module ● Scroll Registers C Data Addr. Scroll Register 0x11 scroll_ scroll_mode(1:0) mode_sw Default • Picture scrolling enable signal for preventing image sticking. • scroll_mode_sw : Scroll mode switch (1:ON, 0:OFF) default : 0 • scroll_mode[1] : horizontal scroll ON/OFF (1:ON, 0:OFF) default : 1 •...
  • Page 124 Product Specification of 42XGA PDP Module 3. ELECTRO OPTICAL SPECIFICATIONS Electro Optical characteristic Specifications (60Hz) ITEM Symbol Condition ☞1) Unit Peak White Brightness* 1% white window 1,000 cd/m ☞2) Average White Brightness* cd/m Brightness Uniformity Color 0.280 0.300 0.320 Full White White Coordinat 0.290...
  • Page 125 Product Specification of 42XGA PDP Module Cell Defect Specifications Specification Defect Distance between two Number of Cell Defects (N) defects (D) ▶Total N ≤ 4[cells / full screen] ▶ N ≤ 2 [cells / each R,G,B screen] A-zone ▶ N ＝ 0 [adjacency of 2-cells / full-white screen] Non-Ignition ▶A-Zone : ≥...
  • Page 126 Product Specification of 42XGA PDP Module 4. MECHANICAL & ENVIRONMENTAL SPECIFICATIONS Mechanical Characteristic Specifications Item Spec. Unit Remark Outline Dimensions 1,005(H) × 597(V) × 61.2(D) ± 1 See “Outline Drawing” Display Area 920.1 (H) x 518.4 (V) ± 0.5 15.3 ± 0.5 (1EA) Weight Gross 113.5 ±...

  • Page 127: Image Sticking

    Product Specification of 42XGA PDP Module 5. IMAGE STICKING CHARACTERISTICS Image Sticking The fluorescent substance used in the plasma module loses its brightness with the lapse of lighting time. This deterioration in brightness appears to be a difference in brightness in relation to the surroundings, and comes to be recognized as image sticking.
  • Page 128 Product Specification of 42XGA PDP Module Proposed measures taken to relieve image sticking So long as there is the reduction of brightness in the fluorescent substance, it is impossible to avoid the occurrence of image sticking. Therefore, to relieve image sticking, we offer you a method of entering an image input that may ensure reluctance to the generation of the difference in brightness reduction among the displayed dots.
  • Page 129 Product Specification of 42XGA PDP Module 6. OUTLINE DRAWING Front View Confidential 127／148...

  • Page 130: Rear View

    Product Specification of 42XGA PDP Module Rear View 128／148...
  • Page 131 Product Specification of 42XGA PDP Module 7. CONNECTORS and CONNECTIONS Power Input Connector Connector P2002 Pin Assignment(Y SUS Board) Pin No. Symbol Pin No. Symbol 1-1123723-9 Pin numbers (view from the pin connection side) Module side connector : 1-1123723-9 (Header) Mating Connector : 1-1123722-9 (Housing) Connector Supplier...
  • Page 132 Product Specification of 42XGA PDP Module 8. LG OEM panel parts list ***Same panel as the panel in an LG 42PC3D*** 6±2cm 1±1cm 415±4 cm Module ID E/X Tube ① ② ③ ④ ⑥ ⑤ ⑦ 3211QKE008A Y-SUSTAIN Z-SUSTAIN LG part # 6871QYH053B LG part # 6871QZH056B Control/Logic PCB LG part # 6871QCH077C...
  • Page 133 Product Specification of 42XGA PDP Module LABEL ① : Identification Label 7.0 ㎝ #### PDP42X2##2# ① ② 2.5 ㎝ ⑦ ③ ⑥ ④ ⑤ ① Model Name ② Bar Code (Code 128, Contains the manufacture No.) ③ Manufacture No. ④ The trade name of LG Electronics ⑤...
  • Page 134 Product Specification of 42XGA PDP Module LABEL ④ : Caution Label (Mechanical Hazard) 6.0 ㎝ 6.0 ㎝ 1.8 ㎝ 1.8 ㎝ LABEL ⑤ : Voltage Label (Model Name & Operational Voltage) 7.0 cm 2. 5 cm ⑥ : Safety Approval Label LABEL 7.5 cm ⑥...
  • Page 135 Product Specification of 42XGA PDP Module 9. PACKING Box packing (5 modules per each Box) 1. Prepare to Module & Packing sheet (Grid) 4. Prepare bottom Box for Packing -Put the Module on the printed surface as four -The arrow direction at the bottom packing holes at the sheet locate to down of the module Should be front side.

  • Page 136: Exploded View

    134／148...

  • Page 137: Spare Part List

    1> G510-421D02-02ALA ROHS CARTON BOX AKAI PDP42Z5TA 1.000000 Piece (S-MT5371) LGX3 USA L 2> G580-421D3C-01APA ROHS IB E FOR AKAI PDP42XXX TV 1.000000 Piece +DTV NO PIP LGX3A MT5371 USA(RS) (CHENG YI) 3> G580-K00201-01APA ROHS IB E FOR AKAI K002 1.000000...
  • Page 138 Spare part list for PDP42Z5TA 19> G387-421D01-07AHA ROHS MODEL PLATE (NITTO GLUE) 1.000000 Piece AKAI PDP42Z5TA(S-MT5371) LGX3 USA H JIA LI 20> G388-42D103-01HA ROHS CAUTION PLATE ENG 42D1 H 1.000000 Piece (JIA LI) 21> G388-42SD01-01A ROHS PC SHEET FOR KEY PCB (JIA LI) 1.000000...
  • Page 139 PDP42Z5TA USA P(QIAN SE) 50> G593-421D01-15APA ROHS INSERTION CARD ENG 1.000000 Piece PDP42Z5TA (MT5371) USA P(QIAN SE) 51> G599-421D02-01APA ROHS IB SHEET E FOR PDP42Z5TA 1.000000 Piece MT5371 INITAL SETUD USA(QIAN SE) 52> G900-420204-01A ROHS DISPLAY FILTER 42" SSC FOR 1.000000 Piece LG 972X560X3.2 (L6-COATING TYPE)
  • Page 140 Spare part list for PDP42Z5TA 57> GE3471-004005A ROHS WIRE WS SHIELD ASSY LVDS 1.000000 Piece P1.25 30P/31P L=300 FOR 42LGX3 MT8202 W/EMI (PCB-4) (HU GUANG) 58> GE3701-058040A ROHS PCB VO 50X19 REMOTE 1.000000 Piece CONNECTER MT8202 COSTDOWN (LUEN SENG) 59>...

  • Page 141: If You Forget Your V-Chip Password

    If you forget your V-Chip Password:  Using the “U.S. Movie Ratings” item After entering the “Program Block” menu, press ▲ or ▼ button to highlight the “U.S. Movie Ratings” item. Press ► or Enter button to enter. Press ▲ or ▼ button to select an item, then press the Enter button to lock (display “ ”) or unlock (display “...
