Preface
Please read this user manual before
using the Essence coffee machine and
keep it for reference. This user manual is
valid for the machine supplied by the
manufacturer, including the options
installed by the manufacturer.
The manufacturer accepts no liability
for any damage resulting from incorrect
or improper use of the machine, or
resulting from modifications that have
not been authorised by the manu-
facturer. This user manual gives
instructions on the operation and
maintenance of the machine. Moreover,
it gives solutions to irregular behaviour
that may occur.
This user manual cannot be regarded
as a substitute to the training and
instruction, but must be seen as an
addition to the training, and as such
only used for reference purposes.
Activities for which proper training is
required are marked and should only be
carried out by trained staff. Instructions
for installation and reparation are
available in a technical manual. When
the machine needs maintenance only
original parts of the manufacturer
should be used. Only properly trained
personnel may carry out repairs, install
the machines or transport the
machines.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the essense and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for de Jong Duke essense

  • Page 1 Preface Please read this user manual before This user manual cannot be regarded using the Essence coffee machine and as a substitute to the training and keep it for reference. This user manual is instruction, but must be seen as an valid for the machine supplied by the addition to the training, and as such manufacturer, including the options...
  • Page 2 www.filterfresh.nl...
  • Page 3 Essence user manual...
  • Page 4: Table Of Contents

    Contents Safety Safety risks Safety and warnings Norms and standards Description of the machine General The machine exterior and interior (see fold out) Display and keys Type plate Technical specifications Installation Installing the machine Placing the machine Switch off the machine Using the Essence Preparing a drink Reading out the counters...
  • Page 5: Safety

    • Connection on the water supply must 1. Safety be according to national regulations. • The machine may only be in locations 1.1 Safety risks • Be careful! This machine serves where it can be overseen by trained hot drinks. personnel.
  • Page 6: Description Of The Machine

    2.3.2 Display and service keys 2 Description of the machine The display (2) shows the selected drink, strength settings, messages and counter 2.1 General This is a semi-automatic hot drink read outs. The up/down scroll keys (3) machine, with (optional) vending allow to adjust the strength.
  • Page 7: Type Plate

    Noise level: 2.4 Type plate The type plate (C) shows: • Standby 0 dB • Manufacturer • Regular coffee 58 dB • Serial number • Espresso using whole beans 68 dB • Type/model specification • Date of construction • Water connection 3 Installation 2.5 Technical specifications 3.1 Installing the machine...
  • Page 8: Using The Essence

    4 Using the Essence 4.2 Reading out the counters Use the service keyboard (A) and the scroll keys (3). With the ‘<’ escape key you can leave any menu item to return to the previous menu item. 1 Press the ‘program*’ key twice on the service keyboard.
  • Page 9: Maintenance And Cleaning

    Step 3. Cleaning the coffee funnel 5 Maintenance and cleaning 1 Remove the coffee funnel (H) 2 Clean it with a dry brush. 5.1 Daily maintenance Not performing the daily maintenance 3 Be sure it is dry when replacing it. work has a harmful influence on the quality of the products and can lead to Step 4.
  • Page 10 Step 5. Cleaning the outlet extension 1 Remove the outlet extension by pulling it down (magnetic, see 4.1) 2 Clean it with a brush and hot water. Step 6. Cleaning the waste container and the internal drip tray 1 Remove the waste container (M). Empty it and clean it.
  • Page 11: Weekly Maintenance

    Step 3. Cleaning the topping canister 5.2 Weekly maintenance Not performing the weekly maintenance 1 Turn the topping outlet (G) upwards, work has a harmful influence on the remove the topping canister (D) and quality of the ingredients and can lead empty it (see 6.3).
  • Page 12 Step 4. Cleaning the mixer Step 5. Cleaning the CoEx® brewer 1 Remove the brewer outlet: Press it down and pull out the knob at the right (see 5.1, step 4). Then remove the left part by lifting it upwards. 2 Press the sides to split the two parts of the brewer outlet (K).
  • Page 13: Monthly Maintenance

    Step 2. Running a cleaning cycle 1 Press the program key on the service 5.3 Monthly maintenance keyboard twice. Not performing the monthly mainte- 3 Select the cleaning cycle. nance work has a harmful influence on 4 Place a cleaning pill in the CoEx® the quality of the ingredients and can brewer.
  • Page 14: Filling

    6 Filling 6.1 Filling the water tank Only for hand fill application. 1 Unlock and open left door. 2 Remove the water tank (P) by pulling it towards you. 3 Fill the water tank with fresh and clean water. 4 Replace the water tank. 5 Close the door and lock it.
  • Page 15: Filling The Coffee Canister

    Canister I Canister II 6.2 Filling the coffee canister Fill up the coffee canister for one or two days to keep the coffee fresh. Make sure that the coffee canister remains filled with a layer of at least 4 cm of ingredients. Use ingredients which are recommended by the supplier Essence BG of the machine.
  • Page 16: Filling The Topping Canister

    6.3 Filling the topping canister 1 Unlock and open the left door. 2 Turn the topping outlet (G) upwards. 3 Lift up the the topping canister (D) at the front, until the positioning ridge comes out of the hole. 4 Pull the topping canister towards you to take it out of the machine.
  • Page 17: Messages On The Display

    7 Messages on the display 7.1 Error messages requiring a service Switch off the machine and water engineer supply and call the service engineer. No water in boiler There is no water in the pressure boilers. Inlet valve/water leaking The water system is leaking water. Water temperature too high A too high temperature is detected, Shortcut temperature sensor...
  • Page 18: Messages You Can Solve Yourself

    7.2 Messages you can solve yourself Water tank needs filling Wait until the water tank is filled. In hand fill mode: fill the water tank (P). Close left door Close both doors. Place cannister lid The coffee cannister lid (E) is not placed correctly, replace it.
  • Page 19 Although this user manual has been written and the information in this manual at any with the utmost care, De Jong DUKE auto- time and without prior notification to the matenfabriek b.v. accepts no liability for purchaser.

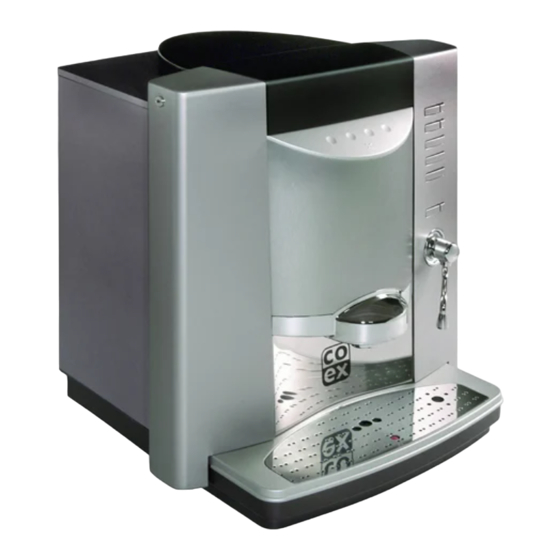

  • Page 22 Exterior of the Essence Machine lock Display Scroll keys (strength selection): escape/scroll down/scroll up/enter Drink selection keys Espresso or coffee outlet Milk outlet Hot water or steam outlet Grid Drip tray On/off switch (see 1.3) Interior of the Essence Service keyboard ConfigCard and dataconnection Type plate Topping canister...
