Virtu 70 and 90 series

Coffee machine

Users manual
Model: Virtu 70 and 90
Machine type: 9CEC...
Revision B, English
Reference: 5DUCEK20
Your supplier is:
The manufacturer of the machine is:
De Jong Duke
Postbus 190
3360 AD SLIEDRECHT
The Netherlands
Telephone +31 (0) 184 496767
www.dejongduke.nl
Fax:
+31 (0) 184 416059
support@dejongduke.nl

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Virtu 70 Series and is the answer not in the manual?

Questions and answers

DIPAK PATEL
March 3, 2025

need to remove sign for water filter on coffee machine

1 comments:
Mr. Anderson
March 3, 2025

The manual states that if the "Water filter installed?" or "Replace water filter" message appears, you should consult the service engineer. Therefore, to remove the water filter sign, you need to contact a service engineer for assistance.

This answer is automatically generated

Summary of Contents for de Jong Duke Virtu 70 Series

  • Page 1: Coffee Machine

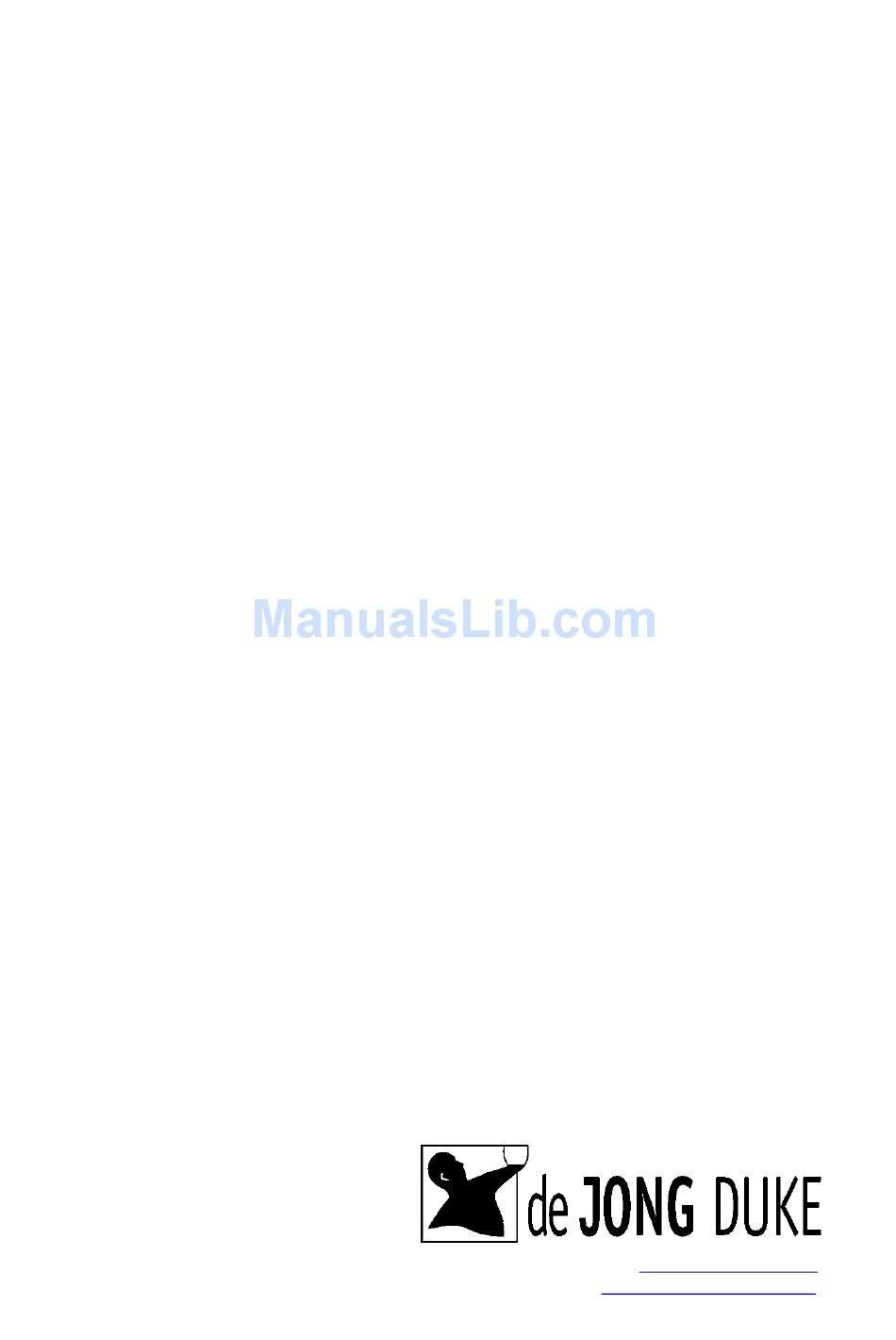

    Users manual Model: Virtu 70 and 90 Machine type: 9CEC… Revision B, English Reference: 5DUCEK20 Your supplier is: The manufacturer of the machine is: De Jong Duke Postbus 190 3360 AD SLIEDRECHT The Netherlands Telephone +31 (0) 184 496767 www.dejongduke.nl Fax: +31 (0) 184 416059 support@dejongduke.nl...
  • Page 2 No liability is accepted for the consequences arising from operation of the equipment in accordance with the information contained in these instructions. J.M. de Jong Duke automatenfabriek b.v. reserves the right to alter specifications at any time and without prior notification to the purchaser.
  • Page 3: Table Of Contents

    CONTENTS SAFETY ....................4 ................ 4 AFETY AND WARNINGS ............... 4 TANDARDS AND NORMS ..................4 AFETY RISKS DESCRIPTION OF THE MACHINE ............5 ..................5 ENERAL ..............5 HE FRONT OF THE MACHINE ............5 VERVIEW OF THE MACHINE INTERIOR ..................
  • Page 4: Safety

    Safety Safety and warnings · Keep this manual near the machine so the manual is immediately available. · Do not use aggressive cleaning products or abrasives to clean (parts of) the machine. · The water connection must conform to local regulations. ·...
  • Page 5: Description Of The Machine

    2 Description of the machine General The Machine is a compact semi-automatic machine for the preparation and vending of hot drinks. Your supplier can adjust the taste and sizes of the drinks. The front of the machine The machine can be operated using the operating panel on the door. By pushing one of the selection buttons on the screen, a product choice can be made.
  • Page 6: Type Plate

    Type plate The type plate is mounted on the inside of the machine, at the top left. The following data are on the type plate: · Name of manufacturer · Serial number · Type/model specification · Date of construction · Water connection Technical specifications Dimensions:...
  • Page 7: Before Usage

    3 Before usage 1.1. Installation Installation, transportation and adjustment of the machine is specialized work. Only properly trained service personnel should carry this out. For instructions about transportation, unpacking and installation of the machine, see the technical manual. 1.2. Operation site These machines may only be used indoors, in a hygienic dry room, with a temperature between 5 and 40 degrees Celsius.
  • Page 8: Operation

    Operation Operating the machine in free vend mode 1. Place a cup under the outlet on the cup stand. All consumptions are dosed in the center of the cup stand except the hot chilled water. 2. Select your desired drink. 3.
  • Page 9: Maintenance And Filling

    Maintenance and filling Daily maintenance Failing to perform the daily maintenance negatively affects the quality of the products and can lead to malfunctioning of the machine. 1. Open the door of the machine. 2. Install the safety key (see paragraph: install safety key) Flush mixers and brewer 3.
  • Page 10: Weekly Maintenance

    Weekly maintenance Failing to perform the weekly maintenance negatively affects the quality of the products and can lead to malfunctioning of the machine. 1. Open the door of the machine. Clean the mixing system 2. Remove the mixing system according to paragraph “Disassembling the mixing bowl”.
  • Page 11: Monthly Maintenance

    Monthly maintenance Failing to perform the monthly maintenance work negatively affects the quality of the products and can lead to malfunctioning of the machine. Apart from the weekly maintenance, the following tasks have to be performed monthly to ensure the machine operates correctly and optimal quality of the beverages.
  • Page 12: Place Safety Key

    Place safety key Insert the safety key and turn a quarter turn clockwise: The machine is now powered up. Parts in the machine can move automatically and hot water can flow out. Be careful!
  • Page 13: 5.5 Cleaning Cycle For C O E X Brewer

    Cleaning cycle for CoEx brewer Run the cleaning cycle for the CoEx brewer weekly using the CoEx cleaning tablet. 1. Open the door of the machine. 2. Press the weekly cleaning cycle button and follow the instructions on the screen: a.
  • Page 14: Fill Up Canisters

    Fill up canisters Do not fill up the canisters further than necessary for one or two days. This will keep the products fresh. Make sure that the canisters remain filled with a layer of at least 4- cm of product. Only use products that are recommended by the supplier of the machine.
  • Page 15 5. Place the canister back in the machine. Make sure the drive at the back of the canister fits well on the motor drive. 6. Push the canister at the front over the positioning ridge. 7. Turn the nozzle of the canisters downwards. Check the position of the nozzle of the canister.
  • Page 16: Removal Of The Brewer

    Removal of the brewer Removal of the brewer is necessary for performing maintenance. Only properly trained personnel may work on the brewer itself. Instructions for performing work on the brewer are described in the technical manual. Carry out the following procedure for removal of the brewer: Open the door of the machine.
  • Page 17: Install The Brewer

    Install the brewer Carry out the following procedure to replace the brewer: 1. Place the brewer in the bracket. 2. Push the brewer firmly in the machine till you hear “click” and the green handle is turned downwards in its home position. Make sure that the green handle is in the down position.
  • Page 18: Assembling And Disassembling The Mixer

    Assembling and disassembling the mixer Disassembling the mixing system: 1. Remove outlet pipes from the mixers. 2. Turn the bayonet catch anti clock wise (approx. 10º). 3. Remove the mixer house. 4. Pull the mixer parts towards you.
  • Page 19 5. Pull the whipper blade towards you. 6. Turn the base plate counterclockwise and pull it towards you. 7. Ready...
  • Page 20 Assembling the mixing system: 1. Install the base plate. 2. Install the whipper blade. Be sure that the arrow is at the flat side of the ax. 3. Install the mixer house. 4. Turn the bayonet catch clockwise.
  • Page 21 5. Install the outlet pipes on the canisters. 6. Ready.
  • Page 22: 5.10 Assembling And Disassembling The Tea Brewer

    5.10 Assembling and disassembling the tea brewer Disassembling the tea brewer Push the metal holder downwards and pull the tea brewer out of the metal bracket. Disassemble the tea brewer and clean the nylon screen. Assembling the tea brewer in reversed order...
  • Page 23: Failure And Error Messages

    Failure and error messages Always check whether an error message is shown on the display. If no error message is shown and the machine does not work correctly, you may find the possible cause and solution in the following table. For failures not mentioned in this manual, contact the service engineer.
  • Page 24 Place cup left or Place cup right Cup needs to be installed on the grid before the start buttons is available. Water filter installed? Consult the service engineer. Replace water filter Consult the service engineer Shortcut temp.sensor Consult the service engineer Startup problem Open and close the machine door for restart.
  • Page 25 Notes: ------------------------------------------------------------------------------------------- ------------------------------------------------------------------------------------------- ------------------------------------------------------------------------------------------- ------------------------------------------------------------------------------------------- ------------------------------------------------------------------------------------------- ------------------------------------------------------------------------------------------- ------------------------------------------------------------------------------------------- ------------------------------------------------------------------------------------------- ------------------------------------------------------------------------------------------- ------------------------------------------------------------------------------------------- ------------------------------------------------------------------------------------------- ------------------------------------------------------------------------------------------- ------------------------------------------------------------------------------------------- ------------------------------------------------------------------------------------------- ------------------------------------------------------------------------------------------- ------------------------------------------------------------------------------------------- -------------------------------------------------------------------------------------------...

This manual is also suitable for:

Virtu 90 series
