User Manual

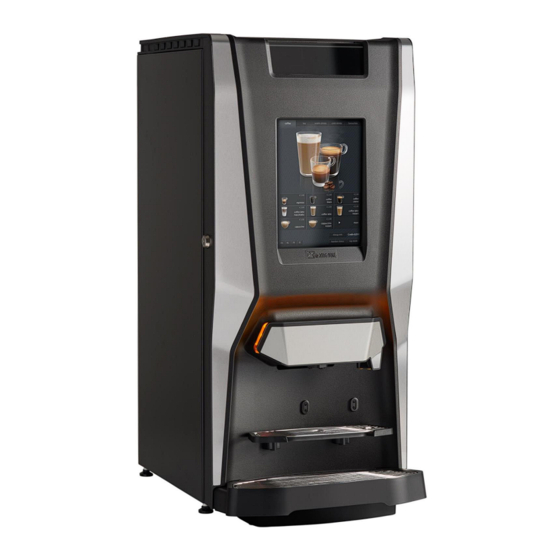

Edge Coffee machine
1-000
Instant

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Edge 1-023 instant and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for de Jong Duke Edge 1-023 instant

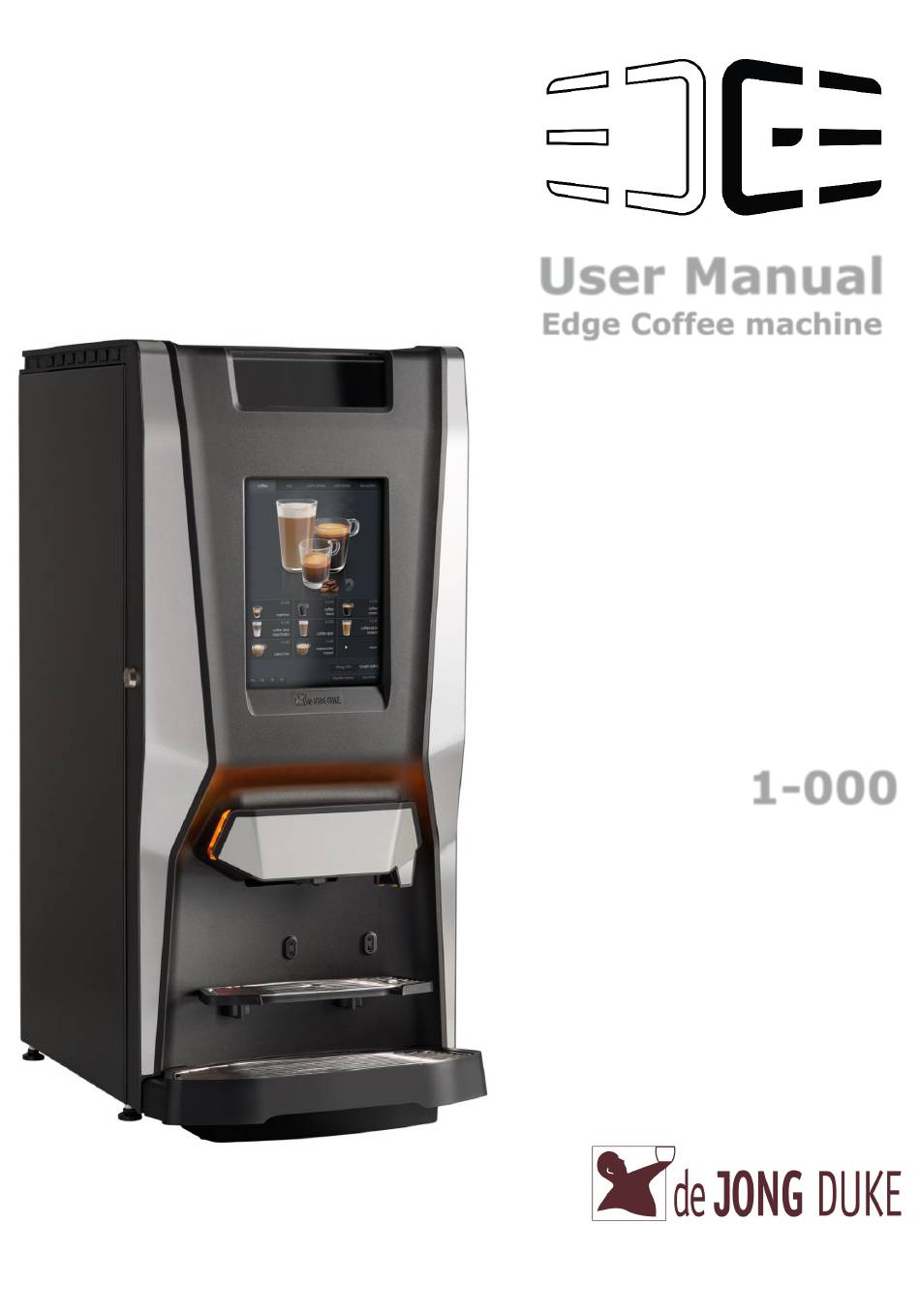

  • Page 1 User Manual Edge Coffee machine 1-000 Instant...
  • Page 2: Disclaimer Manufacturer

    Edge 1-000 series (9INB) Disclaimer Manufacturer Although this user manual has been put together with the utmost care, J.M. de Jong Duke automatenfabriek b.v. accepts no liability for inaccuracies or omissions. No liability is accepted for the consequences arising from operation of the equipment in accordance with the information contained in these instructions.
  • Page 3: The Machine Supplier/ Dealer Is

    User Manual Edge 1-000 series (9INB) The machine supplier/ dealer is Company name: Address: Area code – City: Country: Telephone: Fax: Internet: e-mail: For service and support, always contact the dealer / supplier of the machine by using the telephone service number below. Telephone Service Number: Preface ●...
  • Page 4: Table Of Contents

    User Manual Edge 1-000 series (9INB) Index Disclaimer Manufacturer ..................2 Copyright ....................... 2 Manufacturer ......................2 The machine supplier/ dealer is ................3 Preface ........................3 Index ........................4 Safety ......................5 Safety and Risk levels ..................5 Safety and Warnings ..................6 Standards and Regulations ................
  • Page 5: Safety

    User Manual Edge 1-000 series (9INB) Safety Safety and Risk levels Four safety and risk levels are used in this manual. The risk levels and explanations are described below. To warn persons / readers about the possibility of serious or fatal injury to themselves or others.
  • Page 6: Safety And Warnings

    User Manual Edge 1-000 series (9INB) Safety and Warnings The general safety warnings apply to the entire document. The risk level associated with the explanation below. Do not use water in or near the machine unless the instructions contain explicit directions to the contrary. Risk of electrocution when water comes in contact with internal electrical parts.
  • Page 7: Standards And Regulations

    User Manual Edge 1-000 series (9INB) Standards and Regulations The machine is built according to CE norms The machine complies with the following standards: ● Machine standard: 89/392/EEG ● EMC standard: 89/336/EEG The machine complies with the following standards: ● EN 292: safety of machines.
  • Page 8: Description Of The Machine

    User Manual Edge 1-000 series (9INB) Description of the machine General Hot drinks are dispensed from the machine Take care to avoid scalding yourself. If cups or jugs are not correctly placed The machine will spill hot liquid down the front. This can cause serious burns.
  • Page 9: Overview Of The Machine Interior

    User Manual Edge 1-000 series (9INB) Overview of the machine interior Top lid Cabinet Instant Canisters Canister outlet Mixing bowl Mixer Mains power switch Mixer bayonet Outlet tubes catch Dispensing nozzles External drip tray The coffee machine shown here is a generic configuration. Your actual model may be different. Edge_1000_9INB_UserManual_5DUINQ20_EN_v01-01.docx Page 9 of 40...
  • Page 10: Overview Of The Machine Door Interior

    User Manual Edge 1-000 series (9INB) Overview of the machine door interior In the picture shown with following options: - coin acceptor payment system USB port Keyhole service key Door lock and key Coin acceptor Coin box lock Coin box Edge_1000_9INB_UserManual_5DUINQ20_EN_v01-01.docx Page 10 of 40...
  • Page 11: Type Plate

    User Manual Edge 1-000 series (9INB) Type plate The type plate is mounted on the inside of the machine at the top left. The following data is mentioned on the type plate: ● Name of manufacturer ● Serial number ● Type/model specification ●...
  • Page 12: Technical Specifications

    User Manual Edge 1-000 series (9INB) Technical specifications Dimensions of the machine Height: 31.5 Width: 14.4 Depth: 20.5 Weight (empty) ~ 55 ~ 121 Electricity Mains supply (Europe): V AC Frequency: 50 ~ 60 Max. capacity: Mains supply (North America): V AC Frequency: Max.
  • Page 13: Cup And Jug Sizes

    User Manual Edge 1-000 series (9INB) Cup and jug sizes Cup sensor Cup stand Drip tray / Jug stand CUPS Maximum cup height (*): 111 mm 4.37 in Maximum cup diameter : 85 mm 3.34 in (*) The height of the cup stand is fixed. When ordering a coffee machine the cup stand height can be specified.
  • Page 14: Before Use

    User Manual Edge 1-000 series (9INB) Before use Installation Installation, transportation, and adjustment of the machine is specialized work. Only properly trained service personnel should carry this out. For instructions about transportation, unpacking, and installation of the machine, see the technical manual.
  • Page 15: Operation

    User Manual Edge 1-000 series (9INB) Operation Risk of burn injuries when taking out HOT beverages. When hot beverages come in contact with a person, this can lead to serious scalding injuries. If cups or jugs are not correctly placed. The machine will spill hot liquid down the front.
  • Page 16: Preparing A Beverage

    User Manual Edge 1-000 series (9INB) Preparing a beverage The main screen. Tabs to menus Selections Message area Additional information Jug selection Languages Number selection Selecting a drink: Place a cup under the right outlet for water or the middle outlet for all other drinks.
  • Page 17: Languages (Option)

    User Manual Edge 1-000 series (9INB) Select the Start button to start the dispense. Select the Cancel button to return to the main menu. If no cup is placed or placed below the wrong outlet a message is displayed. The start button is disabled until the cup is properly placed.
  • Page 18: Jug Dispensing

    User Manual Edge 1-000 series (9INB) Jug dispensing Risk of burn injuries when taking out the HOT beverages. When the hot beverage comes in contact with a person, this can lead to serious scalding injuries. If cups or jugs are not correctly placed. The machine will spill hot liquid down the front.
  • Page 19 User Manual Edge 1-000 series (9INB) Select the Jug button on the main screen. Select a type of drink and jug size from the shown selection or select the Cup mode button to return to the main menu. Select the start button. The machine fills the jug with the selected drink.
  • Page 20: Message Area

    User Manual Edge 1-000 series (9INB) Message area The message area shows all relevant information about the coffee machine. Check the last paragraph in this manual for more details of all messages and remarks to solve simple issues. Some warnings are displayed only. The picture shows an example. Install drip tray. The coffee machine continues to work.
  • Page 21: Maintenance

    User Manual Edge 1-000 series (9INB) Maintenance Skipping daily maintenance can affect the quality of the dispensed drink and may lead to malfunctioning of the machine. The flowchart gives an overview of actions to maintain the coffee machine. The daily, weekly and monthly cleaning procedures are explained in detail in the next pages.
  • Page 22: Daily Maintenance

    User Manual Edge 1-000 series (9INB) Daily maintenance Skipping daily maintenance can affect the quality of the dispensed drink and may lead to malfunctioning of the machine. Flush mixers: Open the door of the machine. Install the green service key (see paragraph: ...
  • Page 23 User Manual Edge 1-000 series (9INB) Check if there are still enough ingredients in the canisters: If necessary, fill up the canisters, following instructions in the paragraph  Fill the ingredient canisters. Clean the outside of the machine: Clean the outside of the machine with a soft damp cloth.
  • Page 24: Weekly Maintenance

    User Manual Edge 1-000 series (9INB) Weekly maintenance Failing to perform the weekly maintenance negatively affects the quality of the products and can lead to malfunctioning of the machine. Open the door of the coffee machine. Clean the mixing system: Remove the mixing system according to paragraph ...
  • Page 25 User Manual Edge 1-000 series (9INB) Empty drip tray: Remove the external drip tray, drip grid and cup stand. Rinse all removed items with warm water. Install the drip tray, grid and cup stand. Close the door of the machine to leave the service mode. When activated the Enter ingredient levels screen is displayed.
  • Page 26: Monthly Maintenance

    User Manual Edge 1-000 series (9INB) Monthly maintenance Failing to perform the monthly maintenance negatively affects the quality of the beverages and can lead to malfunctioning of the machine. In addition to the weekly maintenance, the following tasks must be performed monthly to ensure the machine operates correctly and the best beverage quality is maintained.
  • Page 27: Scheduled Rinse Cleaning (Option)

    User Manual Edge 1-000 series (9INB) Scheduled rinse cleaning (option) When activated, a Rinse cleaning is forced using the scheduler. Follow the procedure below to perform the Rinse cleaning. Instead you can also run the daily or weekly maintenance. Place a cup or rinsing tub underneath the nozzle to collect the hot water.
  • Page 28: Fill The Ingredient Canisters

    User Manual Edge 1-000 series (9INB) Fill the ingredient canisters Do not fill the canisters more than necessary for one or two days. This will keep the products fresh. Make sure that the canisters remain filled with a layer of at least 4 cm of product. Only use products that are recommended by the supplier of the machine.
  • Page 29 User Manual Edge 1-000 series (9INB) Place the canister on a stable surface. Fill the canister with the product indicated on the canister. Place the lid back on the canister. Place the canister back into the machine. Make sure the drive at the back of the canister fits well on the motor drive.
  • Page 30: Enter Ingredient Levels (Option)

    User Manual Edge 1-000 series (9INB) Enter ingredient levels (option) When this option is activated the ingredient level screen is displayed every time the service menu is exited. Only when the ingredient canisters are filled up the values need to be adjusted in case the current values are incorrect.
  • Page 31: Place Green Service Key

    User Manual Edge 1-000 series (9INB) Place green service key When the service key is inserted the machine is powered up with open door. Parts in the machine can move and hot water can flow out. Only insert the service key when requested. Warning Open the door and locate the entry for the service key on the inside of the door.
  • Page 32: Disassembling The Mixing System

    User Manual Edge 1-000 series (9INB) Disassembling the mixing system Remove the mixers using the following procedure. Remove the outlet tubes from the mixers. Remove the canister outlets and remember the correct postion and location. Turn the bayonet catches counterclockwise (approx. 10º). Edge_1000_9INB_UserManual_5DUINQ20_EN_v01-01.docx Page 32 of 40...
  • Page 33 User Manual Edge 1-000 series (9INB) Pull the mixer houses towards you and remove them from the machine. Pull the whipper blades towards you and away from the shaft. Turn the bayonet catches counterclockwise (approx. 10 º ) again to release and pull them towards you.
  • Page 34: Assembling The Mixing System

    User Manual Edge 1-000 series (9INB) Assembling the mixing system Install the mixers using the following procedure. Install the bayonet catches and turn clockwise (approx. 10 º Install the whipper blades. The arrow on the whipper blade must point towards the flat side of the shaft. The arrow on the whipper blade must point to the flat side of...
  • Page 35 User Manual Edge 1-000 series (9INB) Turn the bayonet catches clockwise to lock the mixer houses. Install the outlet pipes on the canisters. Connect tubes to mixers. Close the door of the machine to leave the service mode. When activated the Enter ingredient levels screen is displayed. Follow the instructions, explained in paragraph ...
  • Page 36: Failures, Warnings And Error Messages

    User Manual Edge 1-000 series (9INB) Failures, Warnings and Error messages Always check if a message is shown on the display. If no message is shown and the machine does not work correctly, you still may find the possible cause and solution in the following table.
  • Page 37 User Manual Edge 1-000 series (9INB) Place cup in center Cup needs to be placed under the correct dispensing nozzle before the start button is available. If cup is placed in correct position clean the cup sensor. Place cup right Cup needs to be placed under the water dispensing nozzle before the start button is available.
  • Page 38 User Manual Edge 1-000 series (9INB) Document control: Date: Version: Reason of change: Resp. 2017-oct-10 v01-00 Initial release RvdH 2017oct-30 V01-01 Included type plate RvdH 2017dec-20 V01-01 Corrected reference error RvdH 2018-jan-08 V01-01 Changed Picture Disassembly Mixing System RvdH Edge_1000_9INB_UserManual_5DUINQ20_EN_v01-01.docx Page 38 of 40...
  • Page 39 User Manual Edge 1-000 series (9INB) Page intentionally left blank Edge_1000_9INB_UserManual_5DUINQ20_EN_v01-01.docx Page 39 of 40...

This manual is also suitable for:

Edge 1-000 seriesEdge 6-000 seriesEdge 8-000 series
