Summary of Contents for de Jong Duke Zia 7.000 Series
-

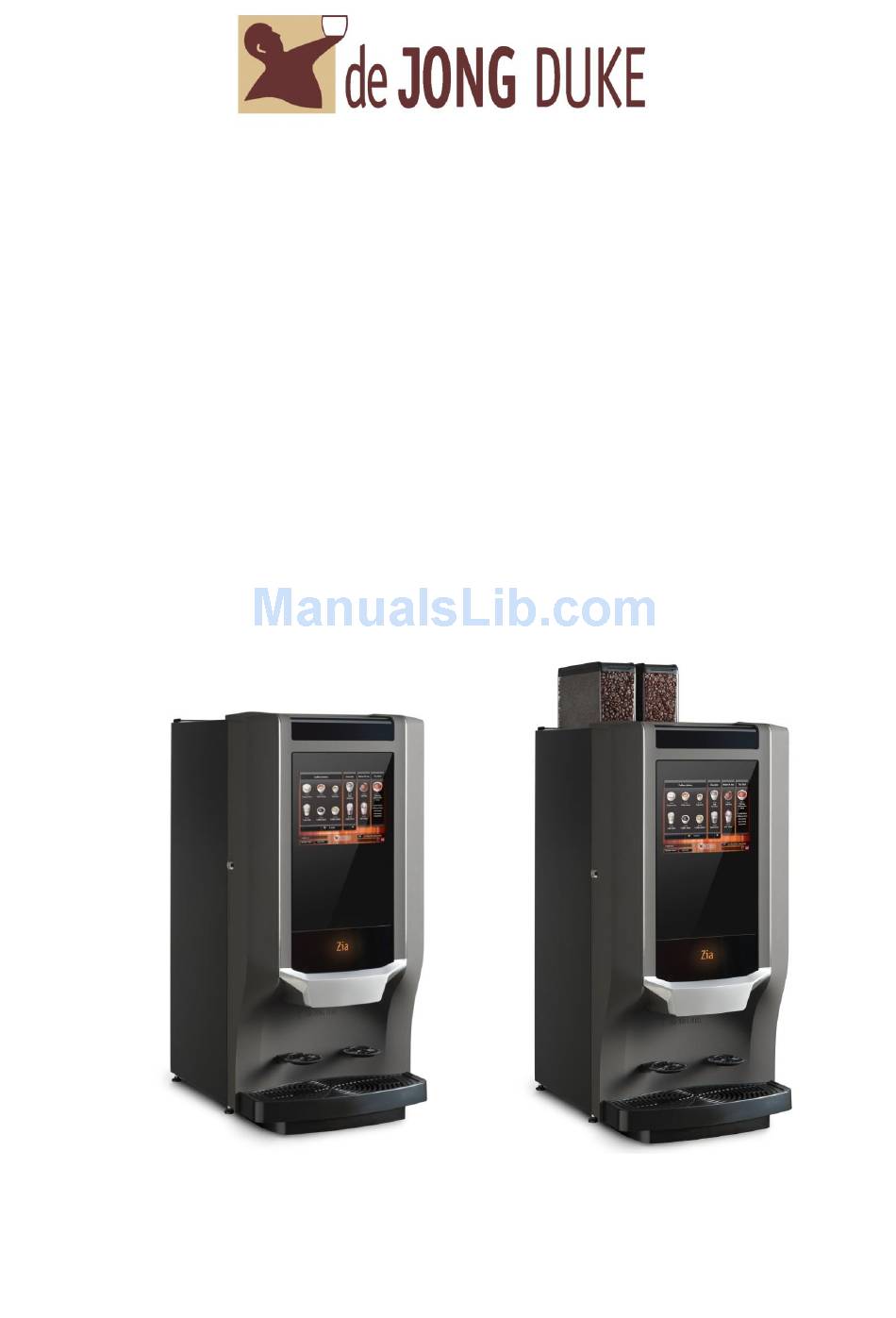

Page 1: Coffee Machine

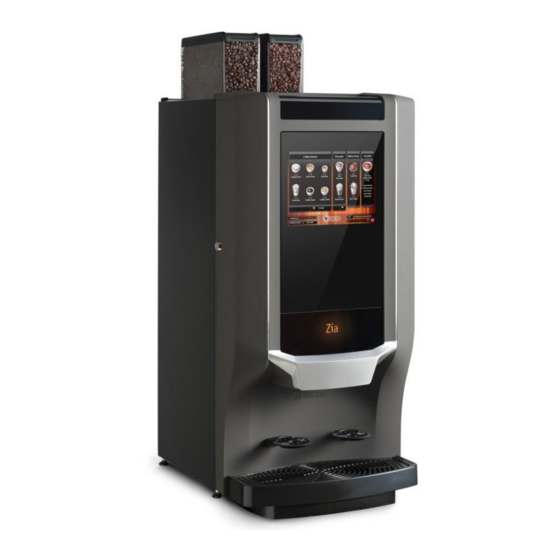

Coffee Machine 7.000 Fresh brew series 9.000 Bean2cup series with CoEx Brewer User Manual User Manual EN Article number: 5DUCEP20 Filename: zia-7000-9000_9CEC_UserManual_5DUCEP20_EN_v01-00.docx... - Page 2 Zia 7.000 and 9.000 series Disclaimer Manufacturer Although this user manual has been put together with the utmost care, J.M. de Jong Duke automatenfabriek b.v. accepts no liability for inaccuracies or omissions. No liability is accepted for the consequences arising from operation of the equipment in accordance with the information contained in these instructions.
- Page 3 User Manual Zia 7.000 and 9.000 series The machine supplier/ dealer is Company name: Address: Area code – City: Country: Telephone: Fax: Internet: e-mail: For service and support, always contact the dealer / supplier of the machine by using the telephone service number below.
-
Page 4: Table Of Contents
User Manual Zia 7.000 and 9.000 series Index Safety ........................ 5 Safety and Risk levels ..................5 Safety and Warnings ..................6 Description of the machine ..................7 General ......................7 The front of the machine ................7 Overview of the machine interior..............8 Type plate .................... -
Page 5: Safety
User Manual Zia 7.000 and 9.000 series Safety Safety and Risk levels Four safety and risk levels are used in this manual. The risk levels and explanations are described below. To warn persons / readers about the possibility of Danger: serious or fatal injury to themselves or others. -
Page 6: Safety And Warnings
User Manual Zia 7.000 and 9.000 series Safety and Warnings The general safety warnings apply to the entire document. The risk level associated with the explanation below. Do not use water in or near the machine unless the instructions contain explicit directions to the contrary. -
Page 7: Description Of The Machine
User Manual Zia 7.000 and 9.000 series Description of the machine General Hot drinks are dispensed from the machine Take care to avoid scalding yourself. If cups or jugs are not correctly placed The machine will spill hot liquid down the front. This can cause serious burns. -
Page 8: Overview Of The Machine Interior
User Manual Zia 7.000 and 9.000 series Overview of the machine interior zia-7000-9000_9CEC_UserManual_5DUCEP20_EN_v01-00.docx Page 8 of 34... -
Page 9: Type Plate
User Manual Zia 7.000 and 9.000 series Type plate The type plate is mounted on the inside of the machine, at the top left. The following data is mentioned on the type plate: ● Name of manufacturer ● Serial number ●... -
Page 10: Technical Specifications
User Manual Zia 7.000 and 9.000 series Technical specifications Dimensions of the machine: Height: 35,0 Width (including key): 18,3 Depth: 21,0 Weight (empty): 55,5 122,4 Electricity: Mains supply (Europe): Frequency: Max. capacity: Mains supply (North America): V AC Frequency: Max. capacity: Water pressure: Minimum pressure: (0,9 bar) -
Page 11: Cup And Jug Sizes
User Manual Zia 7.000 and 9.000 series Cup and jug sizes CUPS Measure A: 115 mm 4,6 in maximum cup diameter: 85 mm 3,34 in JUGS Measure B: 174 mm 6,85 in maximum jug diameter: 135 mm 5,31 in With elevation units the maximum jug height (B) can be extended with 60 mm (1,97 in) or 120 mm (4,72 in). -
Page 12: Before Use
User Manual Zia 7.000 and 9.000 series Before use Installation Installation, transportation, and adjustment of the machine is specialized work. Only properly trained service personnel should carry this out. For instructions about transportation, unpacking, and installation of the machine, see the technical manual. -
Page 13: Operation
User Manual Zia 7.000 and 9.000 series Operation Risk of burn injuries when taking out HOT beverages. When hot beverages come in contact with a person, this can lead to serious scalding injuries. If cups or jugs are not correctly placed. The machine will spill hot liquid down the front. -
Page 14: Preparing A Beverage
User Manual Zia 7.000 and 9.000 series Preparing a beverage Picture may differ based on model and confiuration 1. Place a cup under one of the outlets, the main screen will be shown. 2. Select a beverage by pushing one of the buttons on the touchscreen. 3. -
Page 15: Jug Dispensing
User Manual Zia 7.000 and 9.000 series Jug dispensing Risk of burn injuries when taking out HOT beverages. When a hot beverage comes in contact with a person, this can lead to serious scalding injuries. If cups or jugs are not correctly placed. The machine will spill hot liquid down the front. -
Page 16: Maintenance And Filling
User Manual Zia 7.000 and 9.000 series Maintenance and filling Daily maintenance Failing to perform the daily maintenance negatively affects the quality of the products and can lead to malfunctioning of the machine. Open the door of the machine. Install the safety key (see paragraph “Install safety key’’) Flush mixers and brewer Place a jug underneath the nozzle to collect the hot water. -
Page 17: Weekly Maintenance
User Manual Zia 7.000 and 9.000 series Weekly maintenance Failing to perform the weekly maintenance negatively affects the quality of the products and can lead to malfunctioning of the machine. Open the door of the machine Clean the mixing system Remove the mixing system according to paragraph “Disassembling the mixing bowl”. -
Page 18: Monthly Maintenance
User Manual Zia 7.000 and 9.000 series Monthly maintenance Failing to perform the monthly maintenance negatively affects the quality of the beverages and can lead to malfunctioning of the machine. Apart from the weekly maintenance, the following tasks must be performed monthly to ensure the machine operates correctly and optimal beverage quality is maintained. -
Page 19: Fill Canisters
User Manual Zia 7.000 and 9.000 series Fill canisters Do not fill the canisters further than necessary for one or two days. This will keep the products fresh. Make sure that the canisters remain filled with a layer of at least 4-cm of product. - Page 20 User Manual Zia 7.000 and 9.000 series 5. Fill the canister with the product indicated on the canister. Place the lid back on the canister. 6. Place the canister back in the machine. Make sure the drive at the back of the canister fits well on the motor drive. 7.
-
Page 21: Fill Bean Canister
User Manual Zia 7.000 and 9.000 series Fill bean canister When filling the bean canister the green locking handle must be fully pulled out. Note: When the green handle is not fully pulled out coffee beans can fall out Open the door. Locate the green locking handle at the bottom of the bean canister. -
Page 22: Place Safety Key
User Manual Zia 7.000 and 9.000 series Place the bean canister back into the coffee machine on the 4 position ridges of the grinder. Push the green locking handle back to lock the bean canister on the grinder. Close the upper coffee machine lid. Check for correct functioning by taking a test consumption. -
Page 23: Cleaning Cycle For Coex Brewer
User Manual Zia 7.000 and 9.000 series Cleaning cycle for CoEx brewer Run the cleaning cycle for the coffee brewer weekly using the cleaning tablet. Not cleaning the brewer can cause the machine to Note: malfunction! Failure to clean the brewer weekly with the cleaning Note: tablet delivered by the manufacturer will void the warranty on related parts. -
Page 24: Removal Of The Brewer
User Manual Zia 7.000 and 9.000 series Removal of the brewer Removal of the brewer is necessary for performing maintenance. Only properly trained personnel may work on the brewer itself. Instructions for performing work on the brewer are found in the technical manual. Carry out the following procedure for removal of the brewer: Open the door of the machine. -
Page 25: Installing The Brewer
User Manual Zia 7.000 and 9.000 series Installing the brewer Carry out the following procedure to replace the brewer: Place the brewer in the bracket. Push the brewer firmly in the machine until you hear a click and the green handle is turned downwards in its home position. -
Page 26: Disassembling The Mixing System
User Manual Zia 7.000 and 9.000 series 5.10 Disassembling the mixing system Procedure to disassemble the mixer. Remove outlet pipes from the mixers. Turn the bayonet catch anti clock wise (approx. 10º). Remove the mixer house. zia-7000-9000_9CEC_UserManual_5DUCEP20_EN_v01-00.docx Page 26 of 34... - Page 27 User Manual Zia 7.000 and 9.000 series Pull the mixer parts towards you. Pull the whipper blade towards you. Turn the base plate counterclockwise and pull it towards you. zia-7000-9000_9CEC_UserManual_5DUCEP20_EN_v01-00.docx Page 27 of 34...
-
Page 28: Assembling The Mixing System
User Manual Zia 7.000 and 9.000 series 5.11 Assembling the mixing system Procedure to assemble the mixer. Install the base plate. The arrow on the whipper blade must point to the flat Caution: side of the mixer shaft. Install the whipper blade. Be sure that the arrow is at the flat side of the shaft. - Page 29 User Manual Zia 7.000 and 9.000 series Turn the bayonet catch clockwise until it is locked. Install the outlet pipes on the mixers. Close the door. Check correct functionality by taking test beverages. Picture may be different based on model. zia-7000-9000_9CEC_UserManual_5DUCEP20_EN_v01-00.docx Page 29 of 34...
-
Page 30: Disassembling And Assembling The Tea Brewer
User Manual Zia 7.000 and 9.000 series 5.12 Disassembling and assembling the tea brewer Disassembling the tea brewer The tea brewer is fixed in position using a metal bracket. Push down the bottom part of the metal bracket slightly to release the brewer. The brewer is now unlocked and can be pulled forward and lowered out of the top fold of the bracket. - Page 31 User Manual Zia 7.000 and 9.000 series Assembling the tea brewer Assemble the tea brewer. Place the tea brewer inside the metal bracket and slide the bottom of the brewer into position Push and lock the metal holder upwards. zia-7000-9000_9CEC_UserManual_5DUCEP20_EN_v01-00.docx Page 31 of 34...
-
Page 32: Failure And Error Messages
User Manual Zia 7.000 and 9.000 series Failure and Error messages Always check whether an error message is shown on the display. If no error message is shown and the machine does not work correctly, you may find the possible cause and solution in the following table. - Page 33 User Manual Zia 7.000 and 9.000 series Water filter installed? Consult the service engineer. Replace water filter Consult the service engineer Shortcut temp.sensor Consult the service engineer Temp. sensor disconnected Consult the service engineer Temp. boiler to high Consult the service engineer Water level to low Consult the service engineer zia-7000-9000_9CEC_UserManual_5DUCEP20_EN_v01-00.docx...
- Page 34 User Manual Zia 7.000 and 9.000 series zia-7000-9000_9CEC_UserManual_5DUCEP20_EN_v01-00.docx Page 34 of 34...
