Coffee machine
Users manual
Brewing system: CoEx brewer
Control system: MoVeC 2000
Machine type: 9CND...
Revision H, English
Reference: 5DUCH20m
Your supplier is:
The manufacturer of the machine is:
De Jong Duke
Postbus 190
3360 AD SLIEDRECHT
The Netherlands
Telephone +31 (0) 184 496767
www.dejongduke.nl
Fax:
+31 (0) 184 416059
info@dejongduke.nl
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for de Jong Duke COEX 9CND SERIES
Summary of Contents for de Jong Duke COEX 9CND SERIES
-

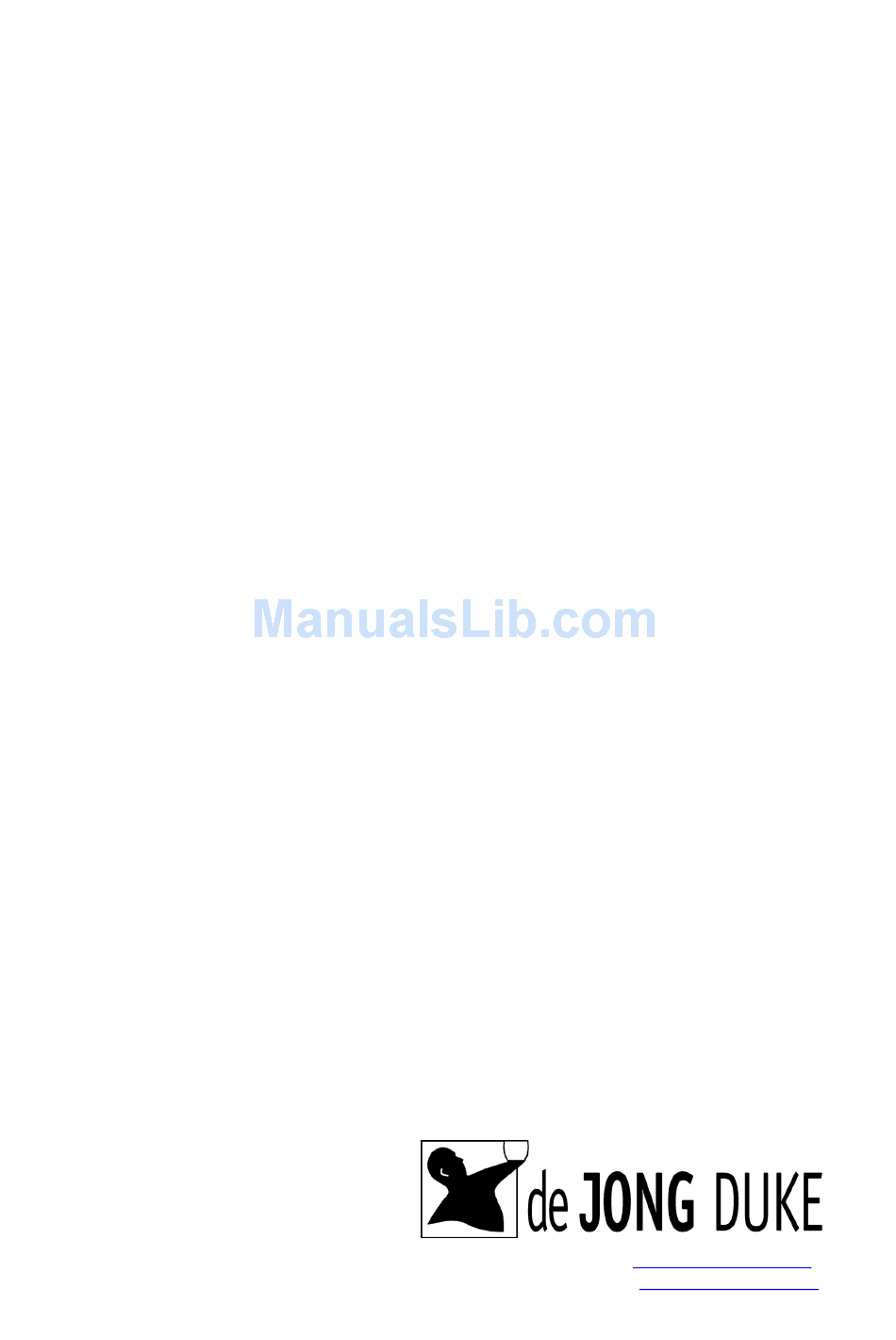

Page 1: Coffee Machine
Brewing system: CoEx brewer Control system: MoVeC 2000 Machine type: 9CND… Revision H, English Reference: 5DUCH20m Your supplier is: The manufacturer of the machine is: De Jong Duke Postbus 190 3360 AD SLIEDRECHT The Netherlands Telephone +31 (0) 184 496767 www.dejongduke.nl Fax: +31 (0) 184 416059 info@dejongduke.nl... - Page 2 No liability is accepted for the consequences arising from operation of the equipment in accordance with the information contained in these instructions. J.M. de Jong Duke automatenfabriek b.v. Reserves the right to alter specifications at any time and without prior notification to the purchaser.
-
Page 3: Table Of Contents
CONTENTS SAFETY ....................4 ..............4 AFETY AND WARNINGS ..............4 TANDARDS AND NORMS .................4 AFETY RISKS DESCRIPTION OF THE MACHINE ............5 ..................5 ENERAL ..............5 HE FRONT OF THE MACHINE ............5 VERVIEW OF THE MACHINE INTERIOR ..............6 ERVICE PANEL AND DISPLAY ..................6 YPE PLATE ..............7... -
Page 4: Safety
Safety Safety and warnings • Keep this manual near the machine, so the manual is directly available. • Do not use aggressive cleaning products or abrasives to clean (parts of) the machine. • The water connection must be conform national regulations. •... -
Page 5: Description Of The Machine
2 Description of the machine General The machine is a compact semi-automatic machine for the preparation and vending of hot drinks. Your supplier can adjust the taste and sizes of the drinks. The front of the machine With the operating panel of the door, the machine can be operated. By pushing one of the keys, a product choice can be made. -
Page 6: Service Panel And Display
Service panel and display The service panel is placed at the interior of the door. This panel is used to change the settings of the machine. Moreover, the service panel is used to let the machine perform certain operations necessary for maintenance. program key rinse brewer run brewer... -
Page 7: Technical Specifications
Technical specifications Dimensions of the Type 0 machine: height 795 mm width 370 mm depth 530 mm Weight (empty): +/- 55 kg Electricity: Mains supply: 230 Volt AC +/- 10% frequency: 50 Hz +/- 2% max. capacity: 2,9 kW Water pressure: Minimum: 90 kPa (0,9 bar) Maximum:... -
Page 8: Before Usage
3 Before usage Installation Installation, transportation and adjustment of the machine is specialised work. Properly trained service personnel should only carry this out. For instructions about transportation, unpacking and installation of the machine, see the technical manual. Operation place These machines may only be used inside, in a hygienic dry room, with a temperature between 5 and 40 degrees Celsius. -
Page 9: Operation
Operation Operation the machine in free vend mode 1. Place a cup under the outlet on the cup stand. All consumptions are dosed on the left cup stand except the selections hot water and chilled water. 2. Set the desired coffee strength with the strength control buttons. 3. -
Page 10: Reading Out The Counters
Reading out the counters For reading out the counter scores via the service panel, the machine has to be switched on. The machine has 3 counter types: - Total counter (counts all consumptions) - Free counters (counts consumptions in free mode) - Pay counters (counts consumptions in pay mode) 4.4.1 Example of reading out the counters 1. -
Page 11: Maintenance And Filling
Maintenance and filling Daily maintenance Not performing the daily maintenance work has a harmful influence on the quality of the products and can lead to malfunctioning of the machine. 5.1.1 Cleaning the outside of the machine Clean the outside of the machine with a soft damp cloth. - Page 12 5.1.5 Flush tea brewer (if applicable) 1. Open the door of the machine. 2. Switch the machine on. 3. Place a jug underneath the outlet to collect the warm water. 4. Push the key rinse tea brewer of the service panel. Hot water from the boiler is flowing through the tea brewer.
-
Page 13: Weekly Maintenance
Weekly maintenance Not performing the weekly maintenance work has a harmful influence on the quality of the products and can lead to malfunctioning of the machine. Apart from the daily maintenance, the following tasks have to be performed weekly to ensure a correctly operating machine and an optimal quality of the consumptions. -
Page 14: Monthly Maintenance
Monthly maintenance Not performing the monthly maintenance work has a harmful influence on the quality of the products and can lead to malfunctioning of the machine. Apart from the weekly maintenance, the following tasks have to be performed weekly to ensure a correctly operating machine and an optimal quality of the consumptions. - Page 15 5.3.2 Cleaning cycle for CoEx brewer Run the cleaning cycle for the CoEx brewer monthly with the tablet 4INF009. 1. Open the door of the machine. 2. Press the program key on the service keyboard twice. 3. Select the cleaning cycle with the scroll buttons. 4.
-
Page 16: Fill Up Canisters
Fill up canisters Do not fill up the canisters further than necessary for one or two days. In this way, the products stay fresh. Make sure that the canisters remain filled with a layer of at least 4-cm of product. Only use products that are recommended by the supplier of the machine. -
Page 17: Removal Of The Brewer
Removal of the brewer Removal of the brewer is necessary for performing the maintenance. Properly trained personnel may only do working on the brewer itself. Instructions for performing work on the brewer are described in the technical manual. Carry out the following procedure for removal of the brewer: 1. -
Page 18: Removal Of The Tea Brewer (If Applicable)
Removal of the Tea brewer (if applicable) Carry out the following procedure for removal of the tea brewer: 1. Open the door of the machine. 2. Remove the tea canister from the machine. 3. Push the metal holder under the tea brewer down wards. -
Page 19: Disassembling The Mixing System
Disassembling the mixing system Carry out the following procedure for disassembling the mixing system: 1. Open the machine door. Be sure that the machine is switched off and can’t switch on unintentional. 2. Open the lid of the machine. 3. Remove the canisters from the machine. 4. -
Page 20: Failure / Error Messages
6 Failure / Error messages Always check whether an error message is shown in the display. If no error message is shown and the machine does not work correctly, you may find the possible cause and solution in the following table. For failures not mentioned in this manual, contact the service engineer. - Page 21 Notes: ------------------------------------------------------------------------------------------- ------------------------------------------------------------------------------------------- ------------------------------------------------------------------------------------------- ------------------------------------------------------------------------------------------- ------------------------------------------------------------------------------------------- ------------------------------------------------------------------------------------------- ------------------------------------------------------------------------------------------- ------------------------------------------------------------------------------------------- ------------------------------------------------------------------------------------------- ------------------------------------------------------------------------------------------- ------------------------------------------------------------------------------------------- ------------------------------------------------------------------------------------------- ------------------------------------------------------------------------------------------- ------------------------------------------------------------------------------------------- ------------------------------------------------------------------------------------------- ------------------------------------------------------------------------------------------- -------------------------------------------------------------------------------------------...
