Summary of Contents for de Jong Duke Zia 2.000 Series

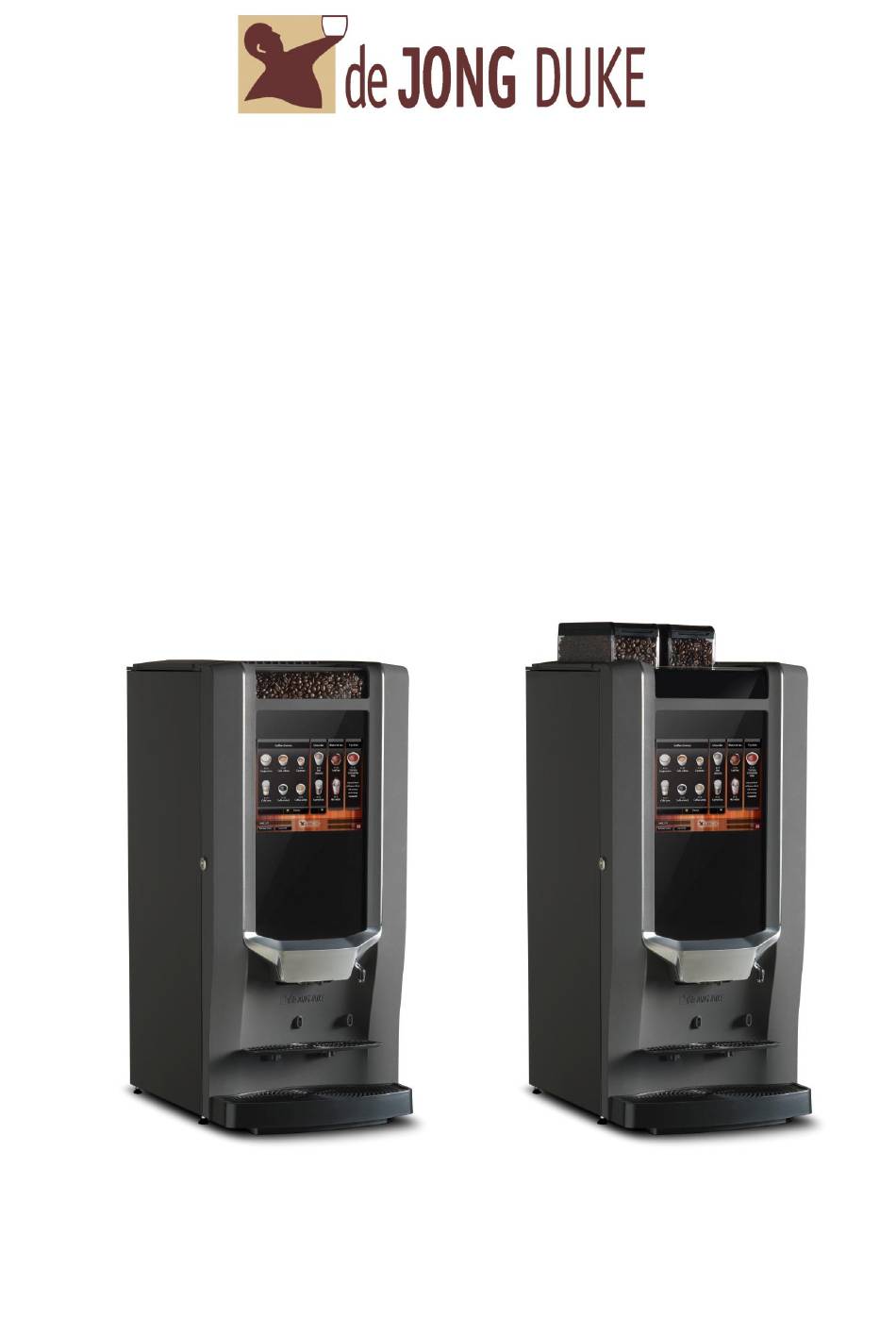

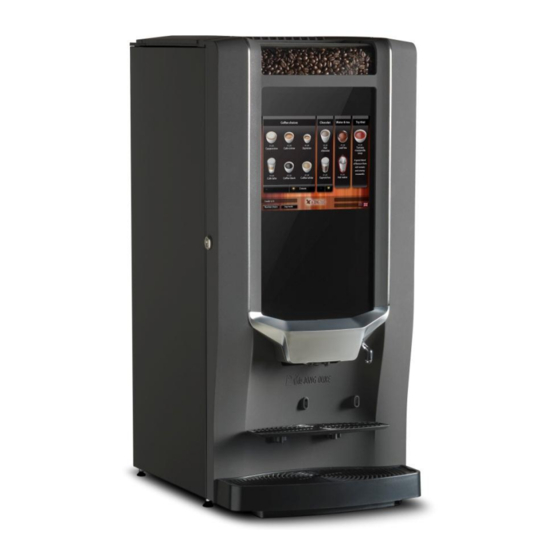

- Page 1 Coffee Machine Zia 2.000 series Uni brewer - Filterfresh User Manual User Manual EN Picture: Zia 2.000 series Filename: Zia-2000_9FND_UserManual_5DUFNP20a_EN_v01-01.docx...
-
Page 2: Disclaimer Manufacturer
Zia 2.000 series Disclaimer Manufacturer: Although this user manual has been put together with the utmost care, J.M. de Jong Duke automatenfabriek b.v. accepts no liability for inaccuracies or omissions. No liability is accepted for the consequences arising from operation of the equipment in accordance with the information contained in these instructions. -
Page 3: The Machine Supplier/ Dealer Is
User Manual Zia 2.000 series The machine supplier/ dealer is: Company name: Address: Area code – City: Country: Telephone: Fax: Internet: e-mail: For service and support, always contact the dealer / supplier of the machine by using the telephone service number below. -
Page 4: Table Of Contents
User Manual Zia 2.000 series Index: Disclaimer Manufacturer: ..................2 Copyright: ......................2 Manufacturer: ......................2 The machine supplier/ dealer is: ................3 Preface: ........................ 3 Index: ........................4 Safety ......................5 Safety and Risk levels: .................. 5 Safety and Warnings ..................6 Standards and norms: ................... -
Page 5: Safety
User Manual Zia 2.000 series 1. Safety Safety and Risk levels: Four safety and risk levels are used in this manual. The risk levels and explanations are described below. To warn persons / readers about the possibility of Danger: serious or fatal injury to themselves or others. -
Page 6: Safety And Warnings
User Manual Zia 2.000 series Safety and Warnings The general safety warnings apply to the entire document. The risk level associated with the explanation below. Do not use water in or near the machine unless the instructions contain explicit directions to the contrary. -
Page 7: Standards And Norms
User Manual Zia 2.000 series Standards and norms: The machine is build according to CE norms The machine complies with the following standards: ● Machine standard: 89/392/EEG ● EMC standard: 89/336/EEG, The machine complies with the following norms: ● EN 292: safety of machines. -
Page 8: Description Of The Machine
User Manual Zia 2.000 series 2. Description of the machine: General: Hot drinks are dispensed from the machine Take care to avoid scalding yourself. If cups or jugs are not correctly placed The machine will spill hot liquid down the front. -
Page 9: Overview Of The Machine Interior
User Manual Zia 2.000 series Overview of the machine interior: Bean canister lid & lock Lid cabinet Bean canister Base cabinet Bean canister Instant canisters lock Service lock Grinder Canisters outlets Mains Power switch Mixing bowls Brewer chamber mixers Uni Brewer... -
Page 10: Overview Of The Machine Interior
User Manual Zia 2.000 series Overview of the machine interior: Bean canister Lid cabinet Bean canister Base cabinet Bean canister lock Instant canisters Grinder Lock Canisters outlets Mains Power switch Mixing bowls Brewer chamber Uni Brewer mixers mixers Brewer outlet... -
Page 11: Type Plate
User Manual Zia 2.000 series Type plate: The type plate is mounted on the inside of the machine, at the top left. The following data is mentioned on the type plate: ● Name of manufacturer ● Serial number ● Type/model specification ●... -
Page 12: Technical Specifications
User Manual Zia 2.000 series Technical specifications: Dimensions of the machine: Height: with door bean canister: 31.2 with bean canister: 34.4 with bean extended canister: 1025 40.3 Width: 14.5 Depth: 20.9 Weight (empty): 99.2 Electricity: Mains supply (Europe): V AC... -
Page 13: Measure Of Cup And Jug Heights
User Manual Zia 2.000 series Measure of cup and jug heights: Max cup diameter: 3.34 Measure A: Mounted default Max cup height: 4.33 Mounted low Max cup height: 4.92 Mounted high Max cup height: 3.74 Min height: Able to receive a volume of consumption Max Jug diameter: 5.31... -
Page 14: Before Use
User Manual Zia 2.000 series 3. Before use: Installation: Installation, transportation, and adjustment of the machine is specialized work. Only properly trained service personnel should carry this out. For instructions about transportation, unpacking, and installation of the machine, see the technical manual. -
Page 15: Operation
User Manual Zia 2.000 series 4. Operation: Operating the machine in free vend mode: Risk of burn injuries when taking out the HOT beverages. When the hot beverages come in contact with a person, this can lead to serious scalding injuries. -
Page 16: Jug Dispensing
User Manual Zia 2.000 series Jug dispensing. Risk of burn injuries when taking out the HOT beverages. When the hot beverage comes in contact with a person, this can lead to serious scalding injuries. If cups or jugs are not correctly placed. -
Page 17: Maintenance And Filling
User Manual Zia 2.000 series 5. Maintenance and filling: Daily maintenance Failing to perform the daily maintenance negatively affects the quality of the beverages and can lead to malfunctioning of the machine. Open the door of the machine. Install the safety key (see paragraph: install safety key) -
Page 18: Weekly Maintenance
User Manual Zia 2.000 series Weekly maintenance: Failing to perform the weekly maintenance negatively affects the quality of the beverages and can lead to malfunctioning of the machine. Open the door of the machine Clean the mixing system: Remove the mixing system according to paragraph “Disassembling the mixing bowl”. -
Page 19: Monthly Maintenance
User Manual Zia 2.000 series Monthly maintenance: Failing to perform the monthly maintenance negatively affects the quality of the beverages and can lead to malfunctioning of the machine. Apart from the weekly maintenance, the following tasks must be performed monthly to ensure the machine operates correctly and optimal beverage quality is maintained. -
Page 20: Fill Canisters
User Manual Zia 2.000 series Fill canisters: Do not fill the canisters further than necessary for one or two days. This will keep the products fresh. Make sure that the canisters remain filled with a layer of at least 4-cm of product. - Page 21 User Manual Zia 2.000 series Fill canisters: 5. Fill the canister with the product indicated on the canister. Place the lid back on the canister. 6. Place the canister back in the machine. Make sure the drive at the back of the canister fits well on the motor drive.
-
Page 22: Fill Up Bean Canister
User Manual Zia 2.000 series Fill up bean canister: When filling the bean canister the green locking handle must be fully pulled out. Note: When the green handle is not fully pulled out it is possible that coffee bean can fall out Open the door. -
Page 23: Place Safety Key
User Manual Zia 2.000 series Fill up bean canister: Place the bean canister back into the coffee machine on the 4 position ridges of the grinder. Posh the green locking handle back to lock the bean canister on the grinder. -
Page 24: Cleaning Cycle For Coffee Brewer
User Manual Zia 2.000 series Cleaning cycle for coffee brewer: Run the cleaning cycle for the coffee brewer weekly using the cleaning tablet. Not cleaning the brewer can cause the machine to Note: malfunction! Failure to clean the brewer weekly with the cleaning... -
Page 25: Change Filter Paper
User Manual Zia 2.000 series Change filter paper: Make sure that the brewer is not moved down during lifting of the transport wheels. Push the cantilever down Caution: with your thumb while supporting the brewer with your index finger. Perform the following procedure for changing of the paper roll: Open the door of the machine. -
Page 26: Removal Of The Brewer
User Manual Zia 2.000 series Removal of the brewer: Removal of the brewer is necessary for performing the monthly maintenance. Only properly trained personnel may work on the brewer itself. Instructions for performing work on the brewer are described in the technical manual. -
Page 27: Install The Brewer
User Manual Zia 2.000 series 5.10 Install the brewer: Installationof the brewer is necessary for performing the monthly maintenance. Only properly trained personnel may work on the brewer itself. Instructions for performing work on the brewer are described in the technical manual. -
Page 28: Assembling And Disassembling The Brewer Chamber
User Manual Zia 2.000 series 5.11 Assembling and disassembling the brewer chamber: Removal of the brewer is necessary for performing the monthly maintenance. Only properly trained personnel may work on the brewer itself. Instructions for performing work on the brewer are described in the technical manual. -
Page 29: Disassembling The Mixing System
User Manual Zia 2.000 series 5.12 Disassembling the mixing system: 1. Open the door. 2. Remove the mixers using the following procedure. 3. Remove the outlet pipes from the mixers. 4. Turn the bayonet catch counterclockwise (approx. 10º). Remove the mixer house. - Page 30 User Manual Zia 2.000 series 5.12 Disassembling the mixing system: 6. Pull the mixer parts towards you. 7. Pull the whipper blade towards you and off the shaft. 8. Turn the base plate counterclockwise and pull it towards you. 9. Ready Picture may be different based on model.
-
Page 31: Assembling The Mixing System
User Manual Zia 2.000 series 5.13 Assembling the mixing system: Procedure to assemble the mixer. Install the base plate. The arrow on the whipper blade must on the flat side Caution: of the mixer shaft. Install the whipper blade. Be sure that the arrow is at the flat side of the shaft. - Page 32 User Manual Zia 2.000 series 5.13 Assembling the mixing system: Turn the bayonet catch clockwise until it is locked. Install the outlet pipes on the mixers. Close the door. Check correct functionality by taking test beverages. Picture may be different based on model.
-
Page 33: Failure And Error Messages
User Manual Zia 2.000 series Failure and Error messages: Always check whether an error message is shown on the display. If no error message is shown and the machine does not work correctly, you may find the possible cause and solution in the following table. -
Page 34: Document Control
User Manual Zia 2.000 series Place cup left or Place cup right Cup needs to be placed under the dispenser before the start button is available. Water filter installed? Consult the service engineer. Replace water filter Consult the service engineer Shortcut temp.sensor... -
Page 35: Notes
User Manual Zia 2.000 series Notes: Zia-2000_9FND_UserManual_5DUFNP20a_EN_v01-01.docx Page 35 of 36... - Page 36 User Manual Zia 2.000 series Zia-2000_9FND_UserManual_5DUFNP20a_EN_v01-01.docx Page 36 of 36...
