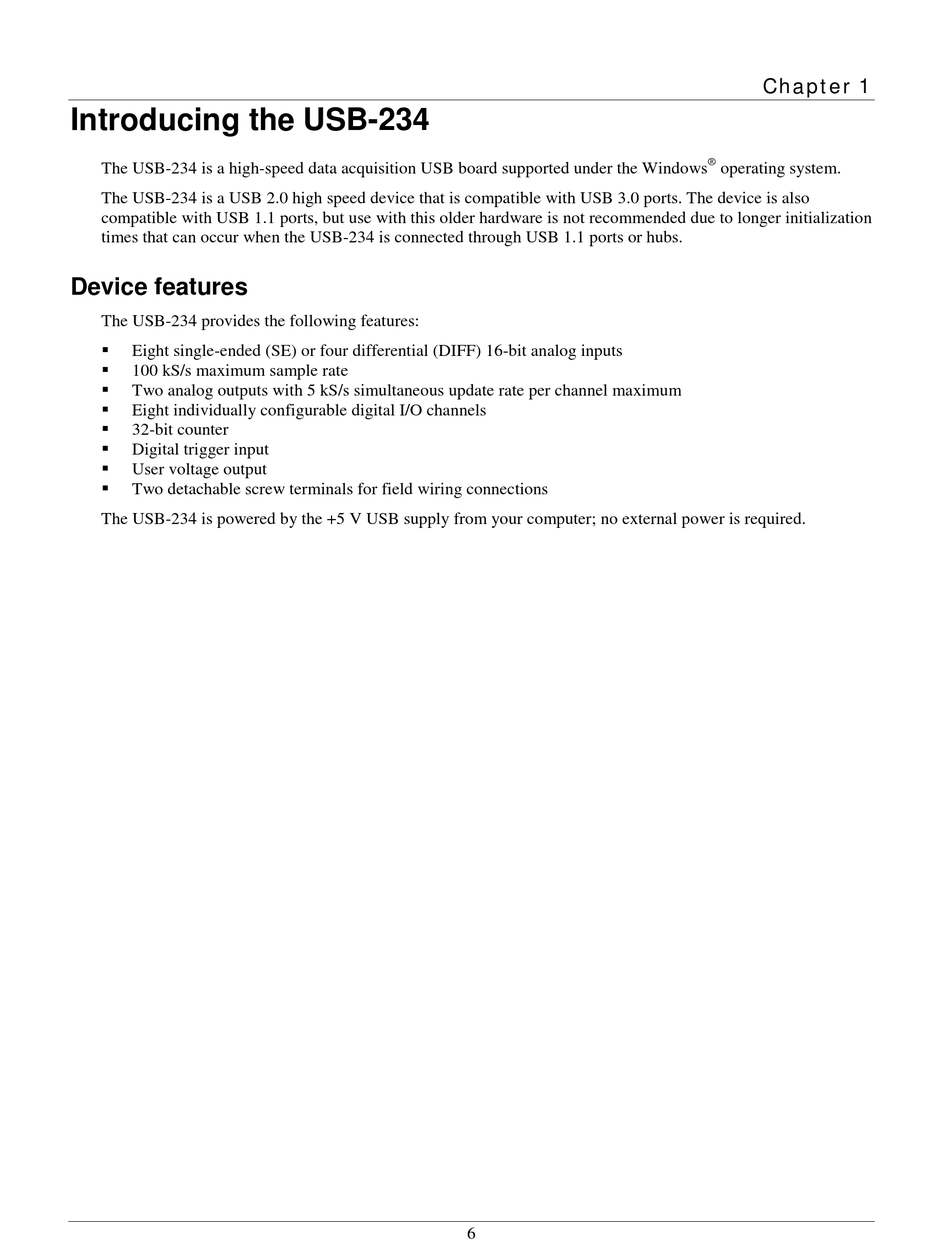

Introducing the USB-234

The USB-234 is a high-speed data acquisition USB board supported under the Windows
The USB-234 is a USB 2.0 high speed device that is compatible with USB 3.0 ports. The device is also
compatible with USB 1.1 ports, but use with this older hardware is not recommended due to longer initialization
times that can occur when the USB-234 is connected through USB 1.1 ports or hubs.

Device features

The USB-234 provides the following features:

Eight single-ended (SE) or four differential (DIFF) 16-bit analog inputs

100 kS/s maximum sample rate

Two analog outputs with 5 kS/s simultaneous update rate per channel maximum

Eight individually configurable digital I/O channels

32-bit counter

Digital trigger input

User voltage output

Two detachable screw terminals for field wiring connections
The USB-234 is powered by the +5 V USB supply from your computer; no external power is required.
6
Chapter 1
®
operating system.
