Remote Controller RCM3211
Installation Guide
Note
Do not connect power to the water heater before the remote controller has been properly installed.

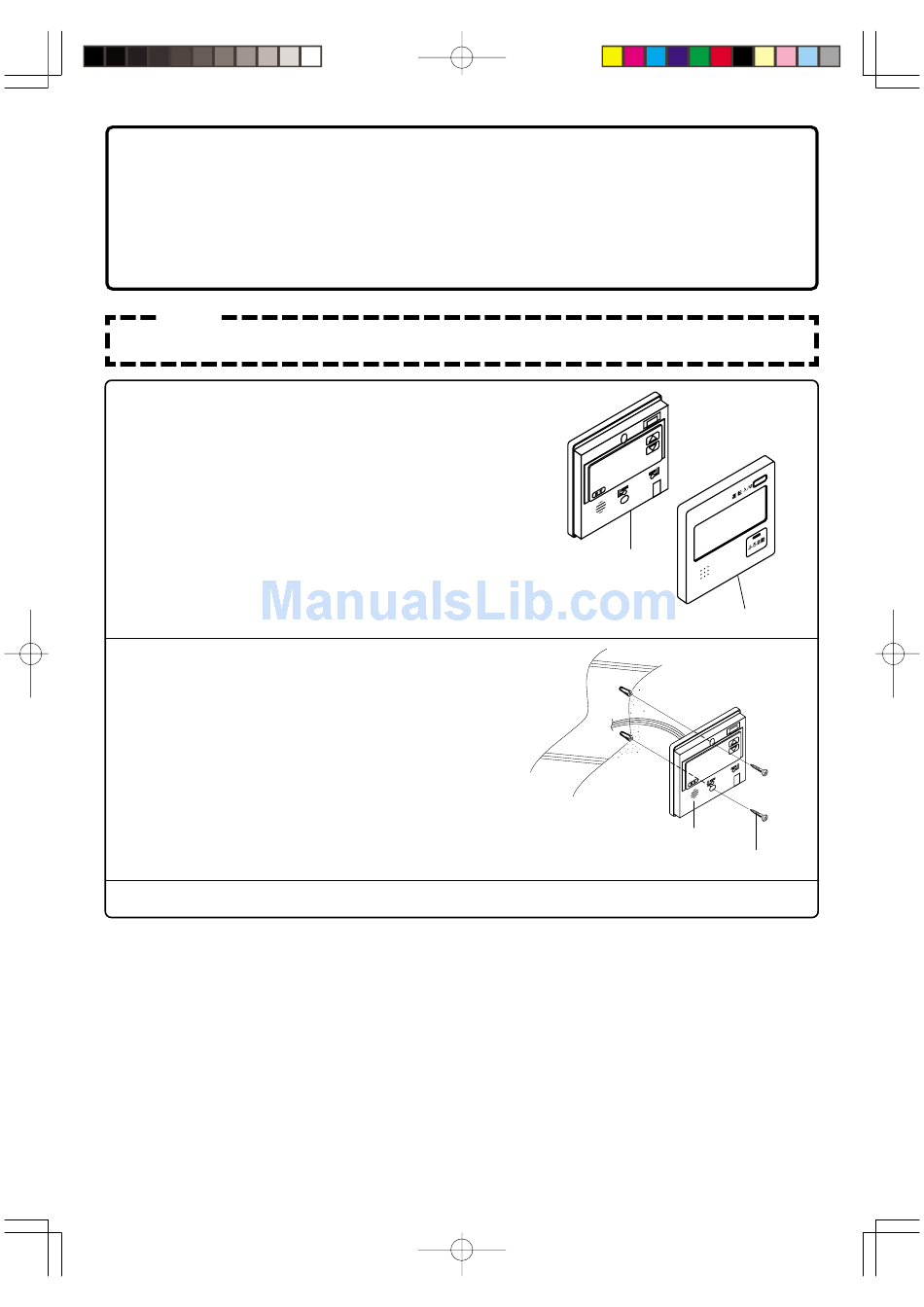

(1) Remove the decorative cover.
(The decorative cover is attached very simply.)
Connect the Y-shaped terminal to the terminal block at the
back of the remote controller.
* In the case of exposed wiring (attachment to the wall), first
open up the cord intake on the main remote controller
body using pliers. (Take care not to damage the board in
the process.)
(2) Position the holes (diameter: 6 mm X depth: 25 - 30 mm) to
secure the remote controller for the kitchen, and knock in all
the raw plugs. Next, secure it using oval-headed wood
screws.
* The screws must be tightened manually, and the
remote controller secured properly without rattling.
(3) Replace the decorative cover.
74
For Installers:
Read this installation guide
carefully before carrying out
installation.
Robert Bosch (Australia) Pty. Ltd.
Main remote
controller body
Decorative cover
Main remote controller body
Oval-headed wood screws
