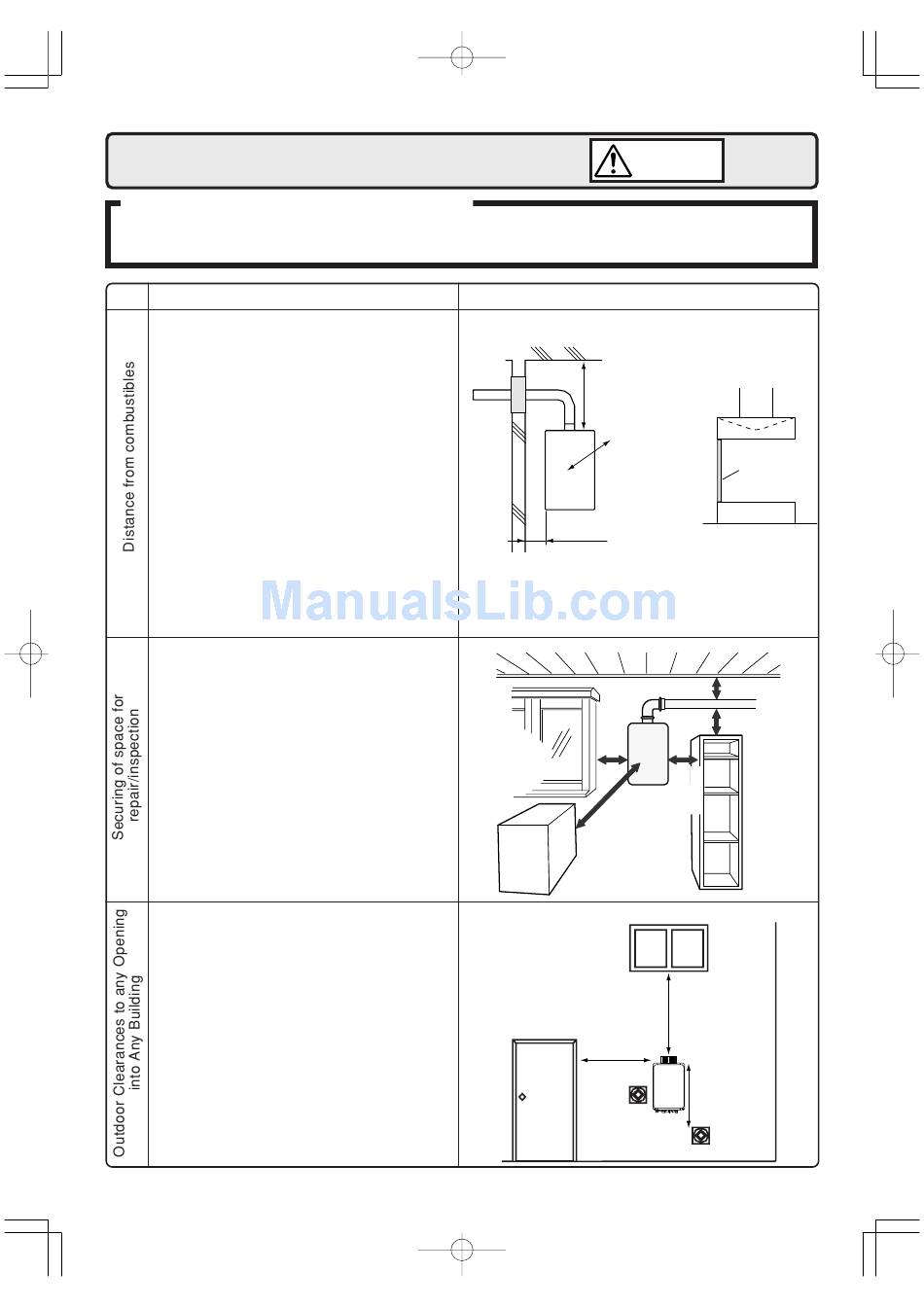

Installation Clearances

Before installing, check for the following:
Install in accordance with relevant building and mechanical codes, as well as any local, state
or national regulations.
Item
• Maintain the following clearances
from both combustible and
non-combustible materials.
• If the unit will be installed in the vicinity of
a permanent kitchen range or stove that
has the possibility of generating steam
that contains fats or oils, use a dividing
plate or other measure to ensure that the
unit is not exposed to air containing such
impurities.
* The dividing plate should be incombust-
ible and the width must exceed that of
the device.
* Do not remove mounting brackets to
reduce air gap at rear.
In Accordance To AS5601
• If possible, leave 200mm or more on ei-
ther side of the unit to facilitate inspec-
tion.
• If possible, leave 600mm or more in front
of the unit to facilitate maintenance
and service if necessary.
• Maintain the following clearances to
any opening in any building:
1.5m below and 0.5m horizontally from
any door, window or gravity air inlet.
1m above any forced air inlet.
500mm below an overhang.
56
Check
Caution
Illustration
300mm Indoor
500mm Outdoor
600mm Outdoor
Exhaust hood
100mm Indoor
500mm Indoor
600mm Outdoor
Min: 75mm
200mm
Min: 75mm
or
more
200mm
or
more
600mm
or more
1500mm
500mm
1000mm
(unit: mm)
Dividing plate
Range
(unit: mm)
(unit: mm)
