ControlWave Instruction Manual (CI-ControlWave)

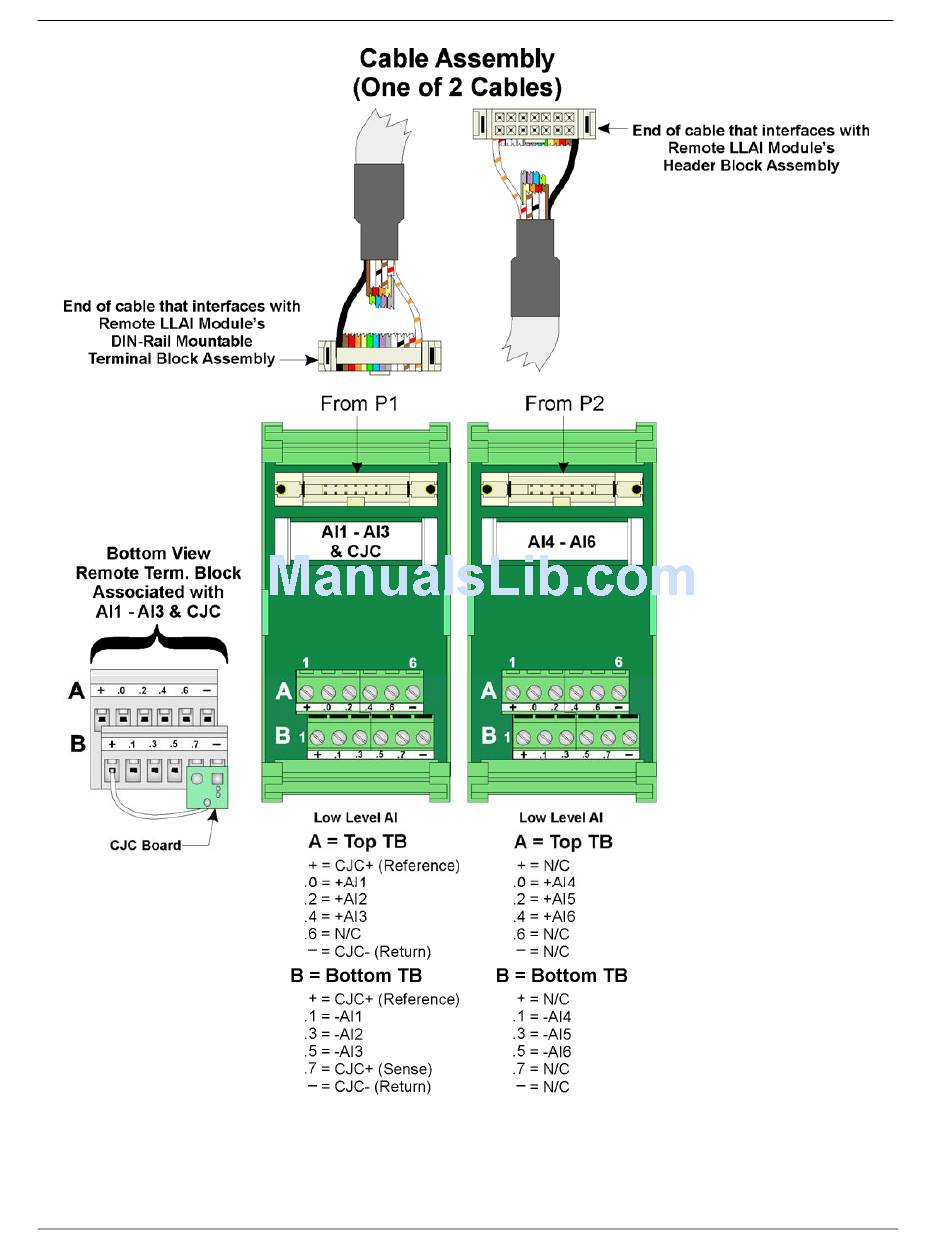

Figure 3-35. Remote DIN-Rail Mountable Terminal Block Assembly Assignments
for Isolated LLAI
Module Operation
3-42
I/O Modules
Revised Nov-2010
