5.2 Removing or Replacing Components

Caution

5.2.1 Accessing Modules for Testing

5.2.2 Removing/Replacing the Bezel

Revised Nov-2010
ControlWave Instruction Manual (CI-ControlWave)

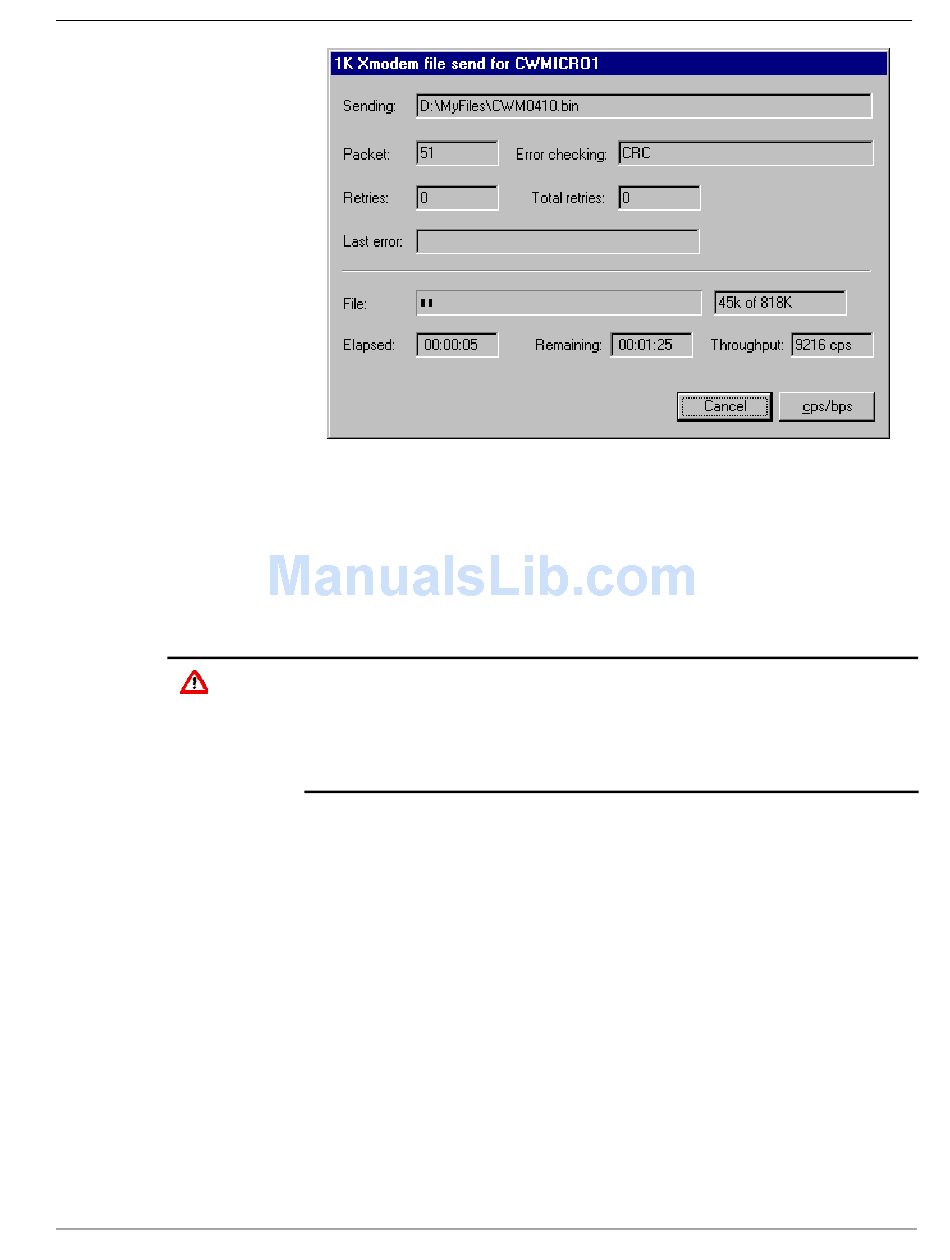

Figure 5-4. HyperTerminal
This section provides information on accessing ControlWave modules
for testing, as well as removal/replacement procedures.
Field repairs to ControlWave process automation controllers are strictly
limited to the replacement of complete modules. All modules (CPU,
PSSM, and I/O) are factory sealed to prevent tampering. Breaking the
seal and/or replacing module components constitutes tampering and
voids the product warranty. Return defective modules or housings to
the factory for authorized service.
Only technically qualified personnel should test and/or replace
ControlWave modules. Read completely the disassembly and test
procedures described in this manual before starting. Any damage to the
ControlWave resulting from improper handling or incorrect service
procedures is not covered under the product warranty agreement. If you
cannot properly perform these procedures, obtain authorization and then
return the device to the factory for evaluation and repairs.
Before you can remove the CPU module or the PSSM module you must
remove the bezel.
Service & Troubleshooting
(Download in Process)
5-5
