Wiring the Module Figure 3-21 shows field wiring assignments for a locally terminated

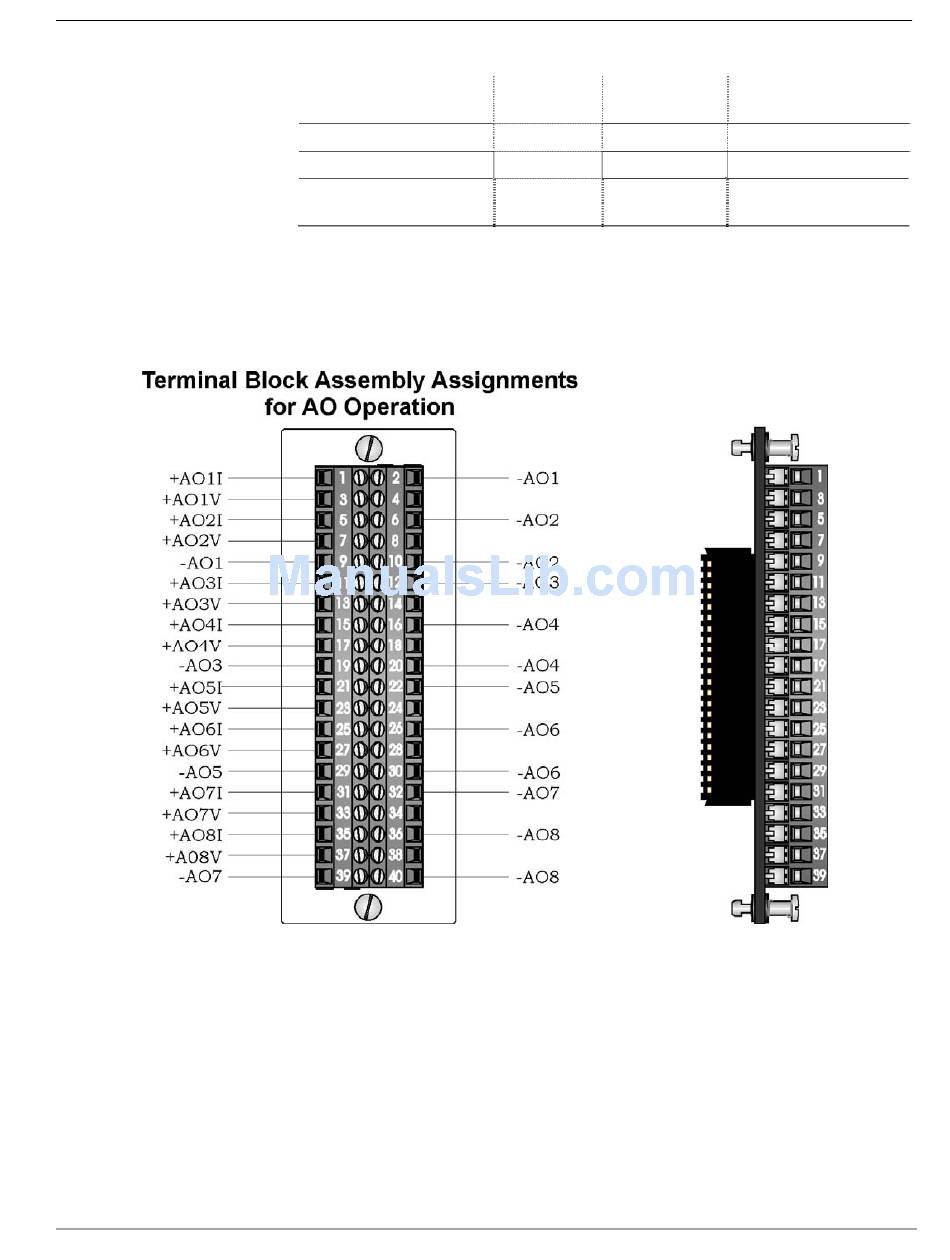

Figure 3-21. Local AO Module Terminal Blocks Assembly Assignments
Revised Nov-2010
Table 3-9. Analog Output Module Configurations
Part Number
396353-01-0
396353-11-8
396353-20-7
AO module. Figure 3-22 shows field wiring assignments for a
remotely terminated AO module.
I/O Modules
ControlWave Instruction Manual (CI-ControlWave)
Number of Termination
AOs Connector
8 local
8 remote
8 remote
Notes
4-20mA
4-20mA
4-20mA AO Readback
on this module
