Introducing the USB-2404-60

Overview: USB-2404-60 features

This user's guide contains all of the information you need to connect the USB-2404-60 to your computer and to
the signals you want to measure.
The USB-2404-60 is a USB 2.0 high-speed device that is supported under popular Microsoft
operating systems. The USB-2404-60 is fully compatible with both USB 1.1 and USB 2.0 ports.
The USB-2404-60 provides four channels of 24-bit simultaneous analog inputs.
The maximum sampling rate is 50 kS/s per channel, and the input voltage range is ±60 V, nominal.
An anti-alias filter removes noise that may be present in the signals prior to conversion. A 250 Vrms channel-
to-channel and channel-to-ground isolation protects the device and computer from ground spikes, and ensures a
reliable data stream. An on-board LED indicates the status of the device.
Field connections are made to four 2-position detachable screw terminals. Ten additional two-position
connectors are available with the optional ACC-102 connector kit.
The USB 2.0 high-speed driver transfers data at rates up to 480 Mbps. The USB-2404-60 is powered by the
+5 volt USB supply from your computer. No external power is required.

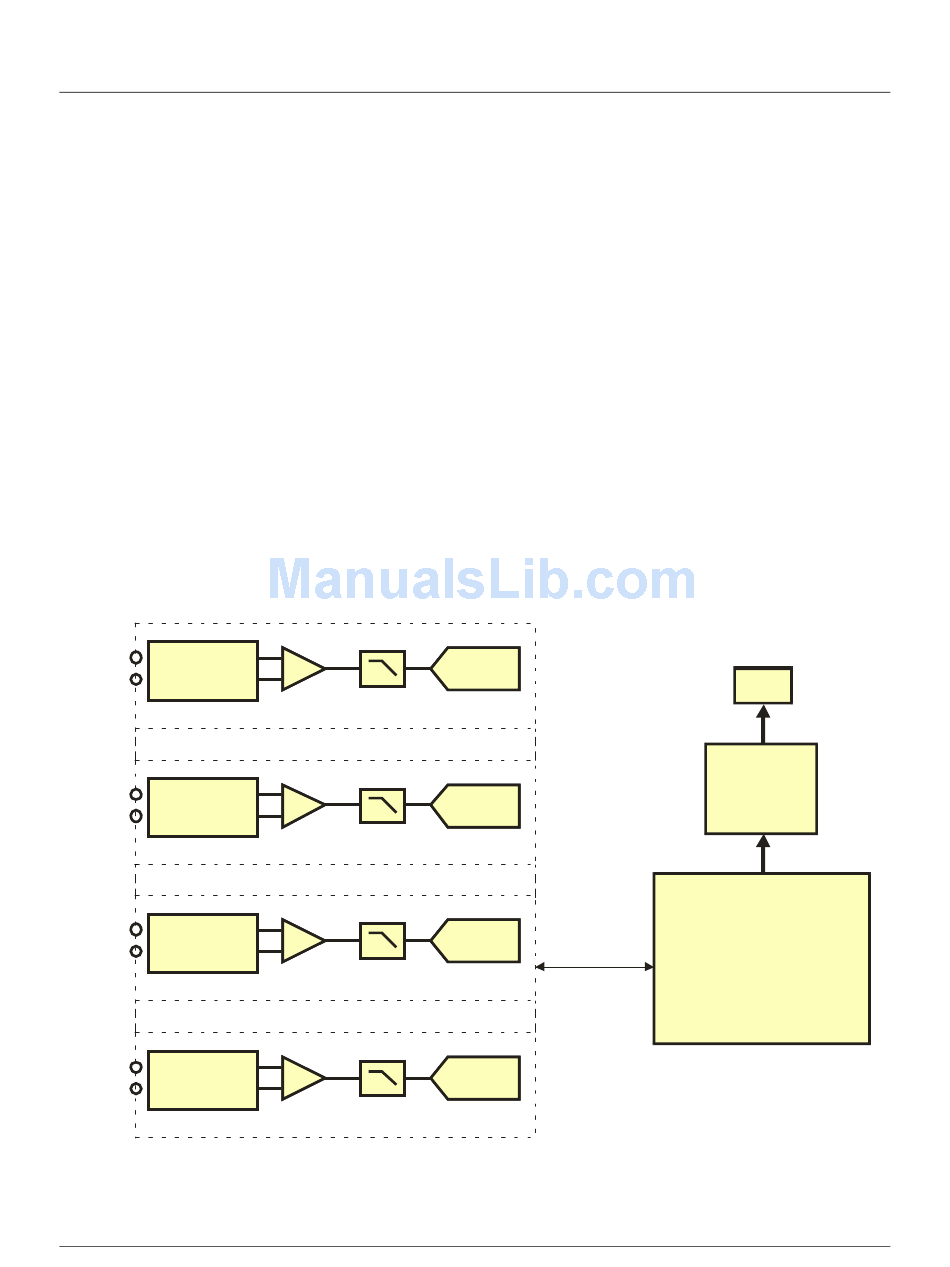

USB-2404-60 block diagram

USB-2404-60 functions are illustrated in the block diagram shown here.
CH0+
Overvoltage Overvoltage
CH 0-
Protection Protection
CH1+
Overvoltage Overvoltage
CH 1-
Protection Protection
CH2+
Overvoltage Overvoltage
CH 2-
Protection Protection
CH3+
Overvoltage Overvoltage
CH 3-
Protection Protection
+ +
- -
Amplifier Amplifier Prefilter Prefilter
Isolation barrier
+ +
- -
Amplifier Amplifier Prefilter Prefilter
Isolation barrier
+ +
- -
Amplifier Amplifier Prefilter Prefilter
Isolation barrier
+ +
- -
Amplifier Amplifier Prefilter Prefilter
Figure 1. USB-2404-60 functional block diagram
Isolated Isolated
ADC ADC
Isolated Isolated
ADC ADC
Isolated Isolated
ADC ADC
Isolated Isolated
ADC ADC
6
Chapter 1
® ®
Windows
USB
USB
Hi-Speed
USB 2.0
Compliant
Interface
USB
Microcontroller
