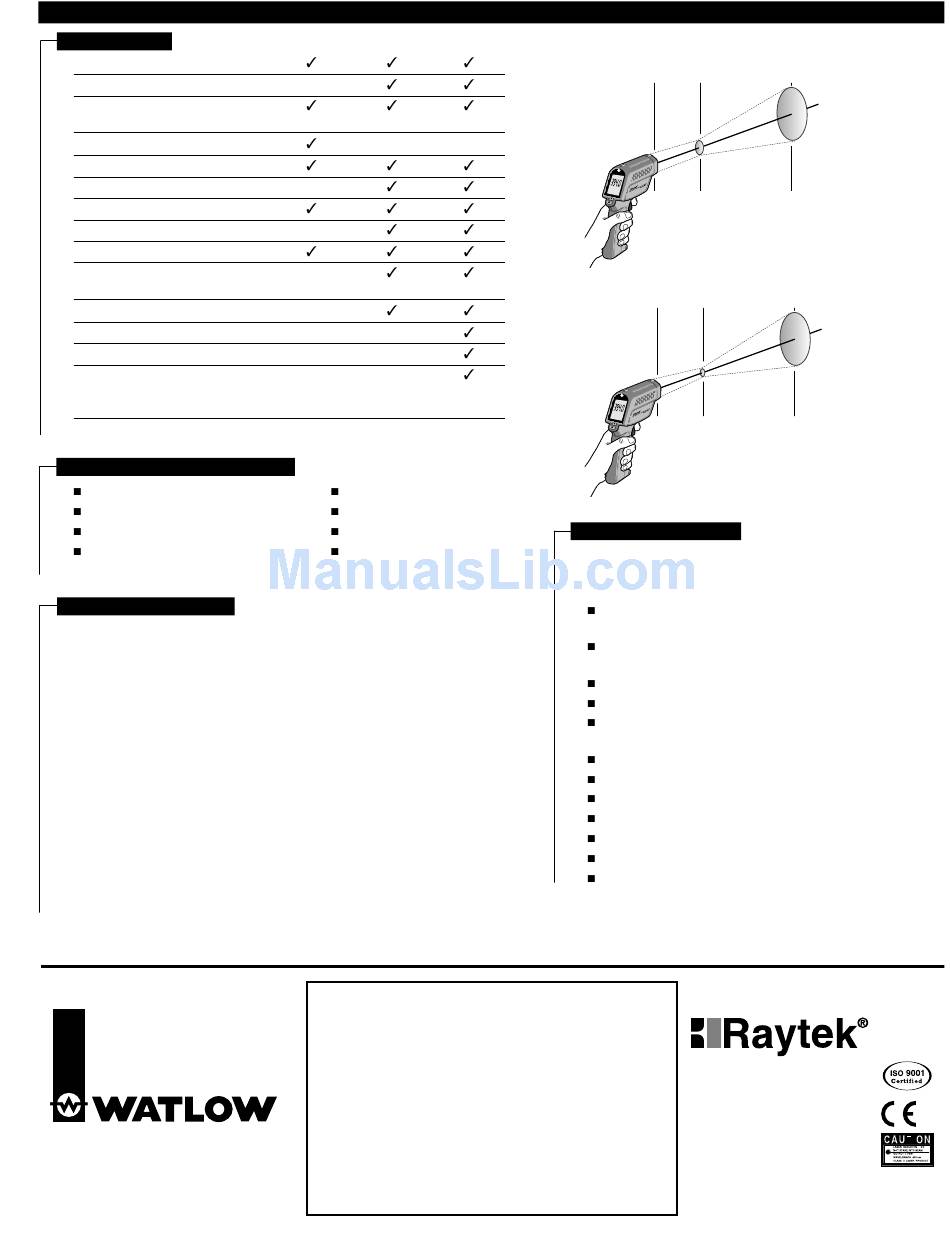

R A Y N G E R M X P O R T A B L E N O N C O N T A C T T H E R M O M E T E R S
F E A T U R E S
Adjustable emissivity
On-board emissivity table
*16-point laser circle spot; meets IEC
Class 2 & FDA Class II requirements
*Single Laser Class III
Audible/visible High alarm
Audible/visible Low alarm
MAX and MIN temperature
DIF and AVG temperature
Bar graph display
Data output: RS232 or
1 mV per degree (°C or °F)
100 points of data logging
Windows-compatible
Data Graphing Software
Power Supply (110 or 220V),
RS232 Computer Cable, 1.5 m (60 in),
K thermocouple probe
*MX2 available with either 16-point class II, or single point class III laser sighting system.
O P T I O N S / A C C E S S O R I E S
Windows-based Data Graphing Software*
RS232 computer cable*
Thermocouple K probe*
Plug-in Power Supply (110 or 220V)*
*Standard with Raynger MX4+
S P E C I F I C A T I O N S
Temperature range
Accuracy*
Repeatability*
Response time
Spectral response
Display resolution
Ambient operating range
Relative humidity
Storage temperature
Power
Tripod mount
Dimensions
Weight
*only at 23°C (73°F)
For Sales and Ordering Contact:
5710 Kenosha Street
Richmond, Illinois 60071 USA
Phone: +1 (815) 678-2211
FAX: +1 (815) 678-3961
Internet: www.watlow.com
e-mail: info@watlow.com
MX2 MX4
-
-
-
-
-
- -
- -
- -
Thermistor (NTC) probe
Portable thermal printer
Calibration Certification
Soft pouch
-30 to 900°C (-25 to 1600°F), MX2, MX4, MXCF
-50 to 500°C (-58 to 932°F), MXSZ
±1% of reading or ±1°C (±2°F), whichever is greater
±0.5% of reading or ±1°C (±2°F), whichever is greater
(95%) 250 mSec
8 to 14 µm, thermopile detector
tenth degree reading up to 900°C (0.2°F to 999.8°F)
0 to 50°C (32 to 120°F)
10-95% RH noncondensing @ up to 30°C (86°F)
-30 to 50°C (-25 to 122°F) without battery
2 AA batteries, DC power for MX4 and MX4+
1/4-20 UNC
200 x 170 x 50 mm (7.9 x 6.7 x 2 inches)
480 g (1 lb. 6 oz)
Your Authorized Watlow Distributor Is:
Target Spot Sizes and Distances
MX4+
-
A P P L I C A T I O N S
The rugged, ergonomic MX has many uses:
check for hot spots in electrical panels, circuit
breakers, generators, and gearboxes
monitor supply and return registers, air stratification,
and duct leakage
monitor temperatures of gasoline and diesel
engine cylinders and railroad axles and bearings
food preparation and storage
Industrial predictive and preventative maintenance.
Checking for icing and deicing on planes
and asphalt
Checking for depleted refrigeration media
Cold storage and walk-in refrigeration applications
Frozen food safety and processing
ISO 9000 proactive maintenance programs
Checking for bearing failures and motor misalignment
Power distribution trouble shooting
Electrical bench work in the shop or lab
25mm 19mm 286mm
@ 0m @1.15m @10m
1.0" 0.76" 11"
@ 0" @ 3'10" @ 32.8'
MX2, MX4, MX4+ and MXSZ
D:S = 60:1 at Focus Point
25mm 6mm 70mm
@ 0mm @300mm @1000mm
1.0" 0.24" 2.81"
@ 0" @ 11.4" @ 40"
MXCF (Close Focus)
D:S = 50:1 at Focus Point
For Service and
Warranty Contact:
Worldwide Headquarters
Raytek Corporation
Santa Cruz, CA USA
Tel: 1 831 458 1110
800 866 5478 (U.S. and Canada only)
Fax: 1 831 425 4561
www.raytek.com
Raytek, the Raytek logo, and Thermalert are registered trademarks
of Raytek Corporation.
©2001 Raytek Corporation, Printed in USA, 3/01 Rev. A
Specifications subject to change without notice. 3-1022
RIC-MX-0401
