soundsation AXIS III User Manual
  1. Manuals
  2. Brands
  3. soundsation Manuals
  4. DJ Equipment
  5. AXIS III
  6. User manual

soundsation AXIS III User Manual

3x10w 4in1 cree led 3-head moving light
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

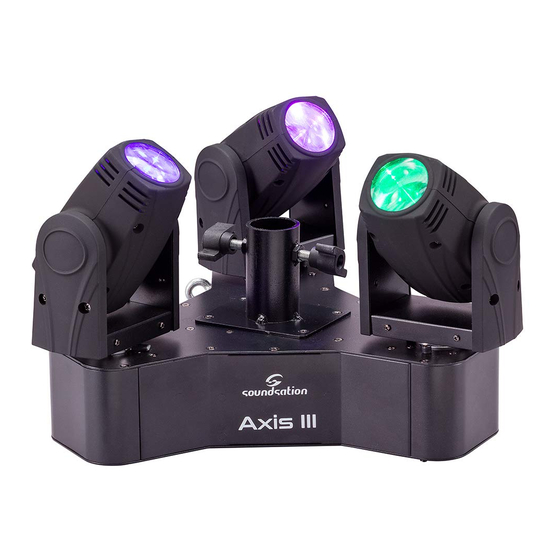

3X10W 4IN1 CREE LED 3-HEAD MOVING LIGHT

USER MANUAL

Please read this manual carefully and proper take care of this manual.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AXIS III and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for soundsation AXIS III

Summary of Contents for soundsation AXIS III

  • Page 1: User Manual

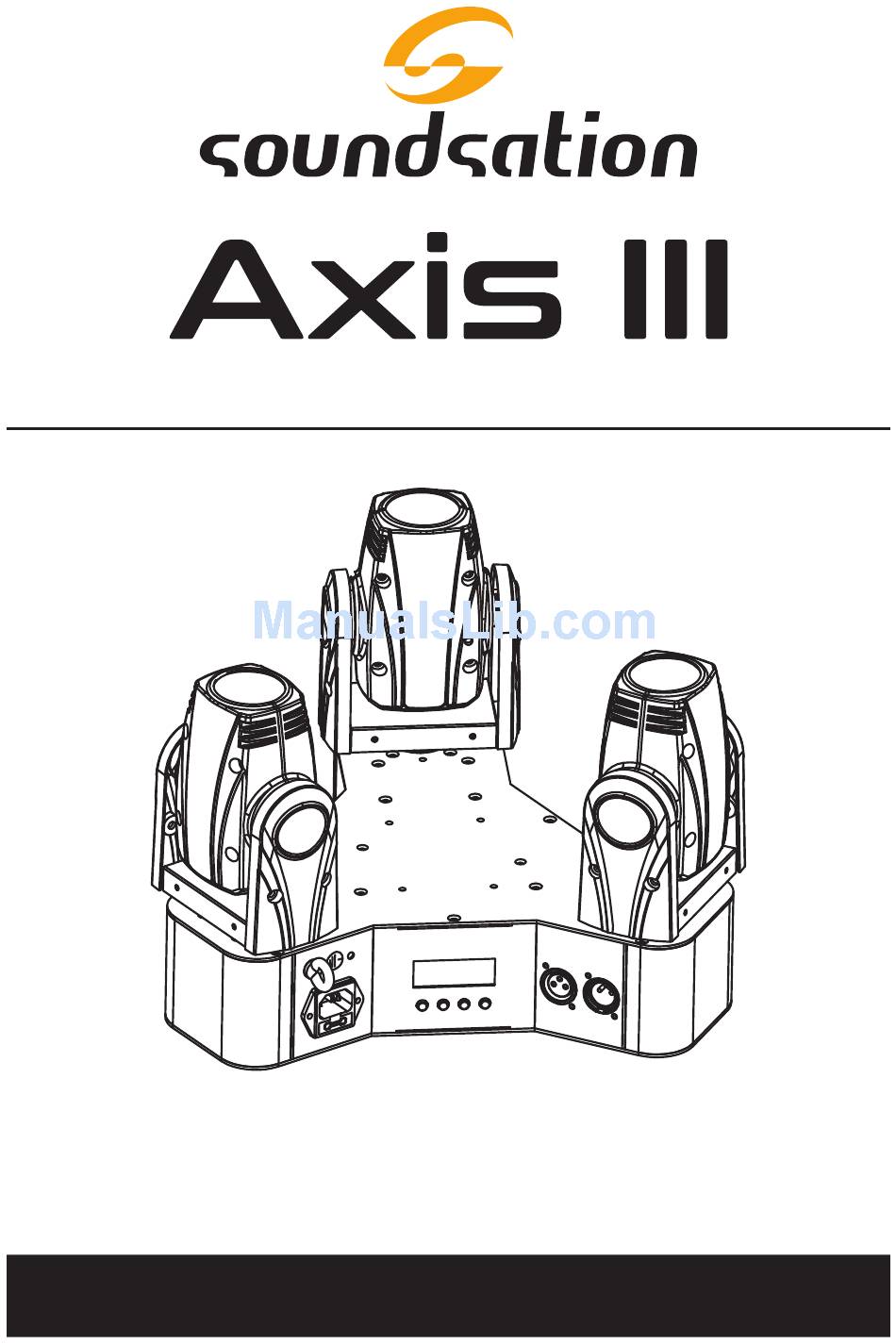

    3X10W 4IN1 CREE LED 3-HEAD MOVING LIGHT USER MANUAL Please read this manual carefully and proper take care of this manual.

  • Page 2: Table Of Contents

    ENGLISH Dear customer, First of all thanks for purchasing a SOUNDSATION® product. Our mission is to satisfy all possible needs of musical instrument, professional audio and lighting users offering a wide range of products using the latest technologies. We hope you will be satisfied with this item and, if you want to collaborate, we are looking for a feedback from you about the operation of the product and possible im- provements to introduce in the next future.
  • Page 3 ENGLISH AXIS III User manual IMPORTANT SAFETY SYMBOLS The symbol is used to indicate that some hazardous live terminals are involved within this apparatus, even under the normal operating con- ditions, which may be sufficient to constitute the risk of electric shock or death.

  • Page 4: Power Supply

    ENGLISH AXIS III User manual f Follow all instructions Water / Moisture The apparatus should be protected from moisture and rain and can not be used near water; for example near a bathtub, a kitchen sink, a swimming pool, etc.

  • Page 5: Introduction

    INTRODUCTION Thank you for purchasing our AXIS III 3-head moving light. Enjoy your new equipment and make sure to read this manual carefully before operation! This user manual is made to provide both an overview of controls, as well as informa- tion on how to use them.

  • Page 6: Overview

    2. OVERVIEW AXIS III 3-head moving light is part of a wider range of SOUNDSATION DMX intelligent LED Moving Head Lights. This lighting is compact and light weight and very easy to use.

  • Page 7: Dmx Connection

    ENGLISH AXIS III User manual expert. 5. DMX CONNECTION DMX fixtures are designed to receive data through a serial Daisy Chain. A Daisy Chain connection is where the DATA OUT of one fixture connects to the DATA IN of the next fixture.

  • Page 8: Front & Rear Panels

    However, two are the most common standards: 5-Pin XLR and 3-Pin XLR system. If you wish to connect AXIS III to a 5-Pin XLR input fixture, you need to use an adapter-cable or make it by yourself.
  • Page 9 ENGLISH AXIS III User manual flashes, then press UP/DOWN buttons to choose the desired value. Press ENTER but- ton again to confirm, or wait for 10 seconds, or press the MENU long time to go back to main mode. Main Function as follows:...

  • Page 10: Channel Mode

    ENGLISH AXIS III User manual return to main menu. Channel Mode and press ENTER button to confirm. Press UP/DOWN to choose the Choose ChNd desired channel mode, like (6 channels), or (9 channels), or (11 channels), 1 1Ch (21 channels) mode. Press ENTER button to save. Wait for 10 seconds or press 21Ch MENU long time to return to main menu.

  • Page 11: Dmx/Master/Slave Modes Operation

    If there are just two lights, you could set the second light as slave light for better show. sl 2 8.3. DMX Controller If a group of AXIS III is controlled by a DMX controller, then you need to set the DMX...

  • Page 12: Dmx Channel Modes

    ENGLISH AXIS III User manual address code to control the light. The address code value ranges from 1 to 512. All fixtures in the same network must be set to same DMX address.Press MENU button and select menu. Press ENTER button, address will flash. Use UP /DOWN to select Addr DMX512 address.

  • Page 13: Technical Specifications

    ENGLISH AXIS III User manual 000-255 First head driver speed, fast to slow 000-007 Blackout 008-024 025-041 042-057 058-074 075-090 R + G 091-107 R + B 108-123 R + W 124-140 G + B 141-156 G + W 157-173...

  • Page 14: Warranty And Service

    SOUNDSATION shall satisfy the warranty obligations by remedying any material or manufacturing faults free of charge at SOUNDSATION’s discretion either by repair or by exchanging individual parts or the entire appliance. Any defective parts removed from a product during the course of a warranty claim shall become the property of SOUNDSATION.
  • Page 15 Questo prodotto viene importato nella UE da FRENEXPORT SPA – Via Enzo Ferrari, 10 - 62017 Porto Recanati - Italy www.soundsa tionmusic.com Soundsation® is a registered trademark of FRENEXPORT SPA - Italy Soundsation® è un marchio di fabbrica registrato della FRENEXPORT SPA - Italy...
  • Page 16 www.soundsa tionmusic.com Ver 1.0 - Nov. 2017...

Table of Contents
