Radiodetection RD7000+ User Manual page 2

RD7000+ locator
2
1
3
4
5
6
7
10
13
14
15
16
17
18 19 20
8
8 9
11 12
24
25
21 22 23
6

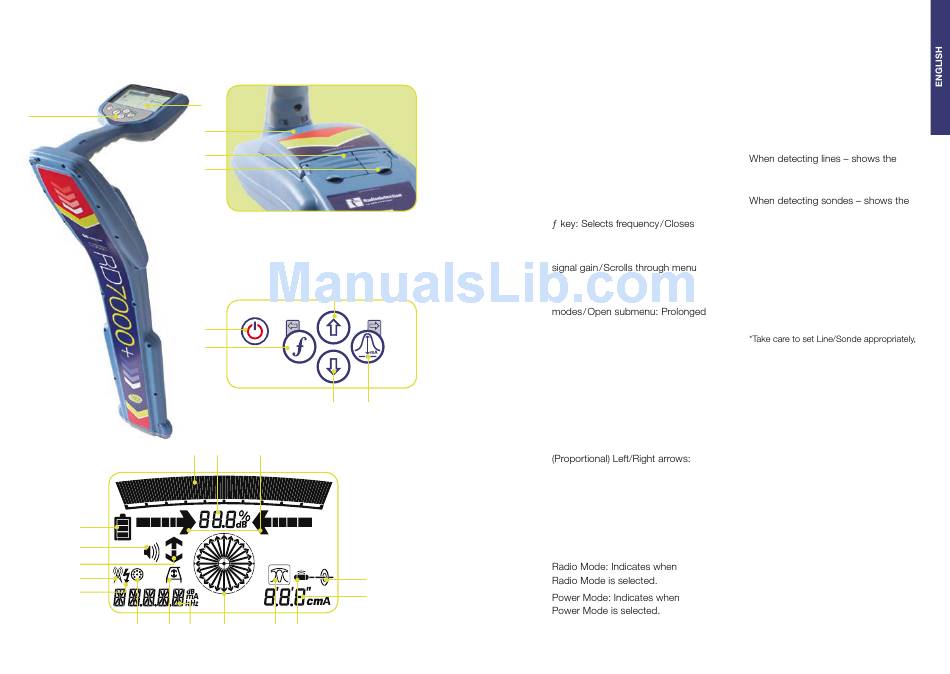

Locator features
1. Keypad.
2. LCD screen.
3. Battery compartment
(USB connector inside).
4. Accessory socket.
5. Headphone jack.
Locator keypad
6. Power key: Switches the unit on
and off. Opens the locator menu.
7.
submenu.
8. Up and down arrows: Adjusts the
options.
9. Antenna key: Toggle between antenna
key press toggles between depth and
current display on the LCD.
Locator display icons
10. Bargraph: Indicates strength of locate
signal and peak marker.
11. Signal strength: Numerical indication
of signal strength and dB reading
when using Fault Find mode.
12.
Indicates the location of the line
relative to the locator.
13. Battery icon: Indicates the battery level.
14. Volume icon: Displays the volume level.
15. Fault-Find arrows
(PL and TL models only).
16.
17.
18. Accessory indicator: Indicates when
an accessory is connected and in use.
19. A-Frame icon: Indicates when the
A-Frame is connected and in use.
20. Operating mode indicator.
21. Compass:
direction of the located cable or pipe
relative to the locator.
direction of the longitudinal axis of the
located sonde relative to the locator.
22. Indicates antenna selection.
23. Sonde icon: Indicates that the unit is
set to receive signals from sondes*.
24. Line icon: Indicates that the unit is set
to receive signals from lines*.
25. Depth or current indicator.
otherwise the Compass display and depth
display will be incorrect.
7
