Summary of Contents for Radiodetection rd7000+

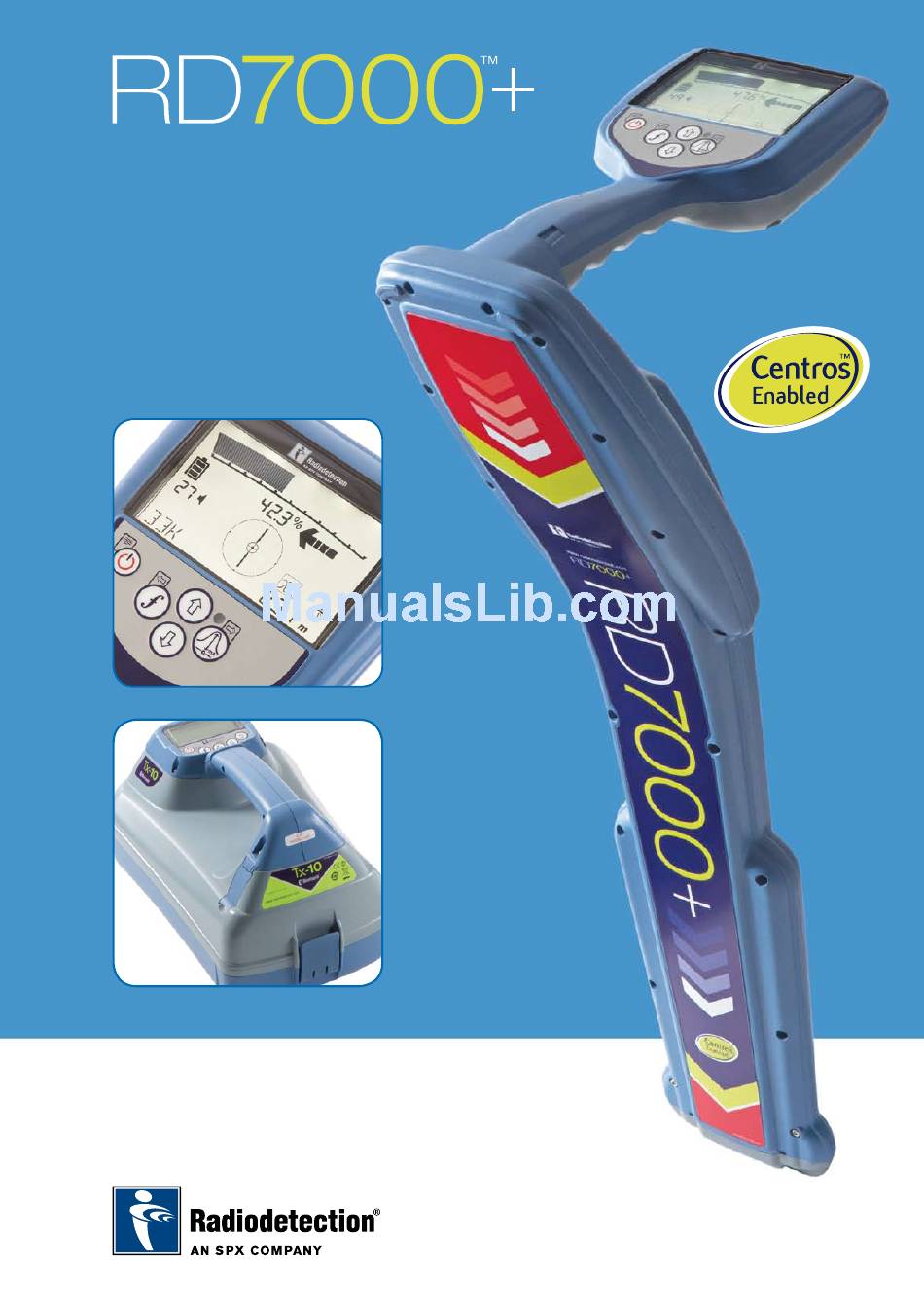

  • Page 1 User Guide...
  • Page 2 This guide is intended as a portable quick reference only. For detailed instructions, please refer to the RD7000+ operation manual, which can be viewed or downloaded from the Radiodetection website at: www.radiodetection.com. Having accessed the Radiodetection website, go to: Downloads > Cable and Pipe Locators > User Manuals > RD7000+ Operation...

  • Page 3: Extended Warranty

    ™ eCAL is a novel Radiodetection technique that allows the user to validate the original factory calibration of the RD7000+ locator, providing the user with the confidence that the locator continues to meet its original factory calibration. eCAL also carries out a functional test on the locator providing the user with the confidence that the locator continues to provide the same performance as it did when it first left the factory.

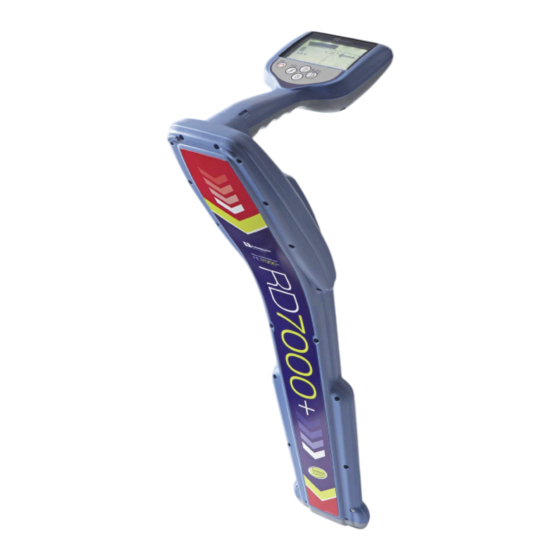

  • Page 4 RD7000+ locator...
  • Page 5 Locator features Keypad. Accessory indicator: Indicates when an accessory is connected and in use. LCD screen. A-Frame icon: Indicates when the Battery compartment A-Frame is connected and in use. (USB connector inside). Operating mode indicator. Accessory socket. Compass: Headphone jack. When detecting lines –...
  • Page 6 Tx-1, Tx-3 and Tx-10 transmitters...

  • Page 7: Transmitter Features

    Transmitter features Keypad. CD Mode indicator: Indicates that the transmitter is in Current Direction Mode LCD. (Tx-10 model only) Removable accessory tray. Voltage warning indicator: Indicates Transmitter keypad that the transmitter is outputting potentially hazardous voltage levels. Power key: Switches the unit on Volume icon: Displays the volume level.

  • Page 8: Before You Begin

    Before you begin IMPORTANT! Please read this section before you attempt to operate the RD7000+! System setup It is important that you set up the system according to your personal preferences and operating requirements for your country before you conduct your first survey. You can set the system up using the RD7000+ menu as described below.
  • Page 9 To navigate the locator menu: First power up the locator. Momentarily press the key to enter the menu. Use the arrows to scroll through the menu options. Press the key to enter the option’s submenu. Use the arrows to select the required selection. Press the key to accept your selection and return to the main menu.
  • Page 10 Examples of using the menu, selecting options and making changes Power / mains frequency (locator only) Select the correct frequency (50 or 60Hz) for your country or region’s national power supply. To change power frequency on the locator: Press the key momentarily to enter the menu.
  • Page 11 Press the locator key or transmitter key to enter the BATT submenu. Press the keys to select the correct battery type. Press the key to accept your selection and return to the main menu. Press the key momentarily to return to the main operation screen. Locating pipes and cables Passive Frequencies Passive frequency detection takes advantage of signals that may already be present on...

  • Page 12: Fault Finding

    In these situations a stethoscope antenna should be used to locate or identify individual target lines. Radiodetection supplies a range of stethoscopes to suit most applications. To use a stethoscope, connect it to the locators accessory socket. The locator will automatically detect the device and filter out location modes that are irrelevant.
  • Page 13 Centros Manager ™ Centros Manager is a Radiodetection PC application which is available as a free download. From time to time Radiodetection will release new software for the RD7000+ locator and transmitter which may improve performance, stability and may include new features.
  • Page 14 To validate your RD7000+, you must first carry out the following: Register your RD7000+ locator at www.radiodetection.com/extendedwarranty. See page  for more details. Purchase an eCAL key at www.radiodetection.com/ecal or alternatively contact your local Radiodetection representative. Download Centros Manager at www.radiodetection.com/centrosmanager.
  • Page 15 The original factory calibration results for the RD7000+ locator can be retrieved from the unit. Each time the RD7000+ is calibrated either at Radiodetection or an approved Radiodetection service centre, the calibration results are stored within the locator. To...

  • Page 16: Important Notices

    Important notices When reporting any problems to your Radiodetection Dealer or Supplier it is important to quote the unit serial number and the purchase date. WARNING! This equipment is NOT approved for use in areas where hazardous gases may be present.

  • Page 17: Fcc And Industry Canada Statements

    Radiodetection or an approved repair center. Radiodetection products, including this user guide, are under continuous development and are subject to change without notice. Go to: www.radiodetection.com or contact your local Radiodetection representative for the latest information regarding the...

  • Page 18: Warranty

    Statement of warranty conditions The sole and exclusive warranty for any Radiodetection product found to be defective is repair or replacement of the defective product at Radiodetection’s sole discretion. Repaired parts or replacement products will be provided by Radiodetection on an exchange basis and will be either new or refurbished to be functionally equivalent to new.
  • Page 19 Use of the product with accessories, peripheral equipment and other products of a type, condition and standard other than prescribed by Radiodetection. viii. Repair or attempted repair by persons who are not Radiodetection warranted and certified repair houses.
  • Page 20 Notes...
  • Page 21 Notes...
  • Page 22 Radiodetection Ltd. and SPX Corporation. Due to a policy of continued development, we reserve the right to alter or amend any published specification without notice. This document may not be copied, reproduced, transmitted, modified or used, in whole or in part, without the prior written consent of Radiodetection Ltd. 90/UG088INT/01...
