Operation options
52
8.1.2

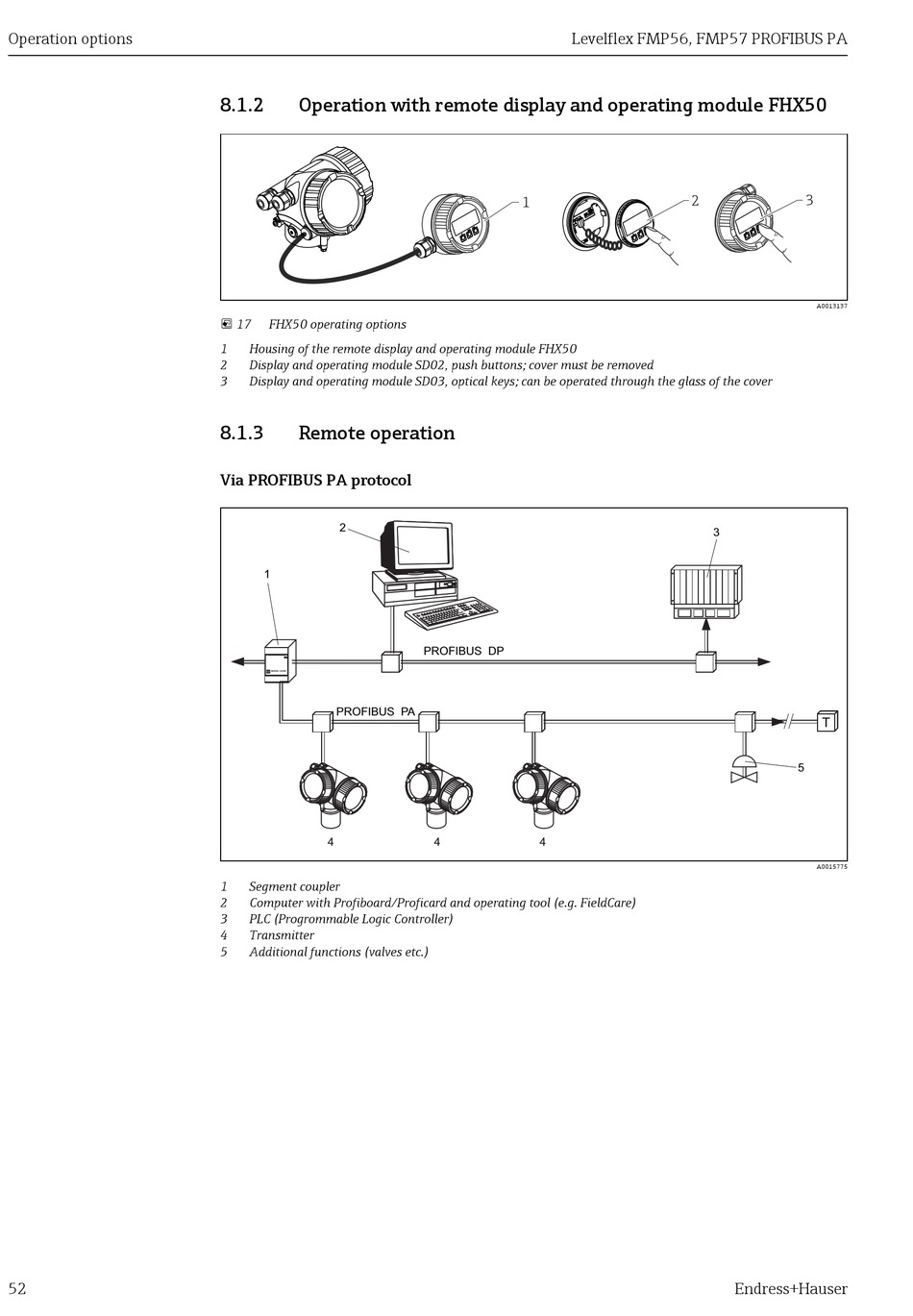

Operation with remote display and operating module FHX50

 17 FHX50 operating options
1 Housing of the remote display and operating module FHX50
2 Display and operating module SD02, push buttons; cover must be removed
3 Display and operating module SD03, optical keys; can be operated through the glass of the cover
8.1.3

Remote operation

Via PROFIBUS PA protocol
2
1
ENDRESS + HAUSER
PROFIBUS PA
4
1 Segment coupler
2 Computer with Profiboard/Proficard and operating tool (e.g. FieldCare)
3 PLC (Progrommable Logic Controller)
4 Transmitter
5 Additional functions (valves etc.)
Levelflex FMP56, FMP57 PROFIBUS PA
1
PROFIBUS DP
4 4
2 3
A0013137
3
T
5
A0015775
