Levelflex FMP56, FMP57 PROFIBUS PA
Endress+Hauser
36
32
28
24
20
16
12
8
4
0
0

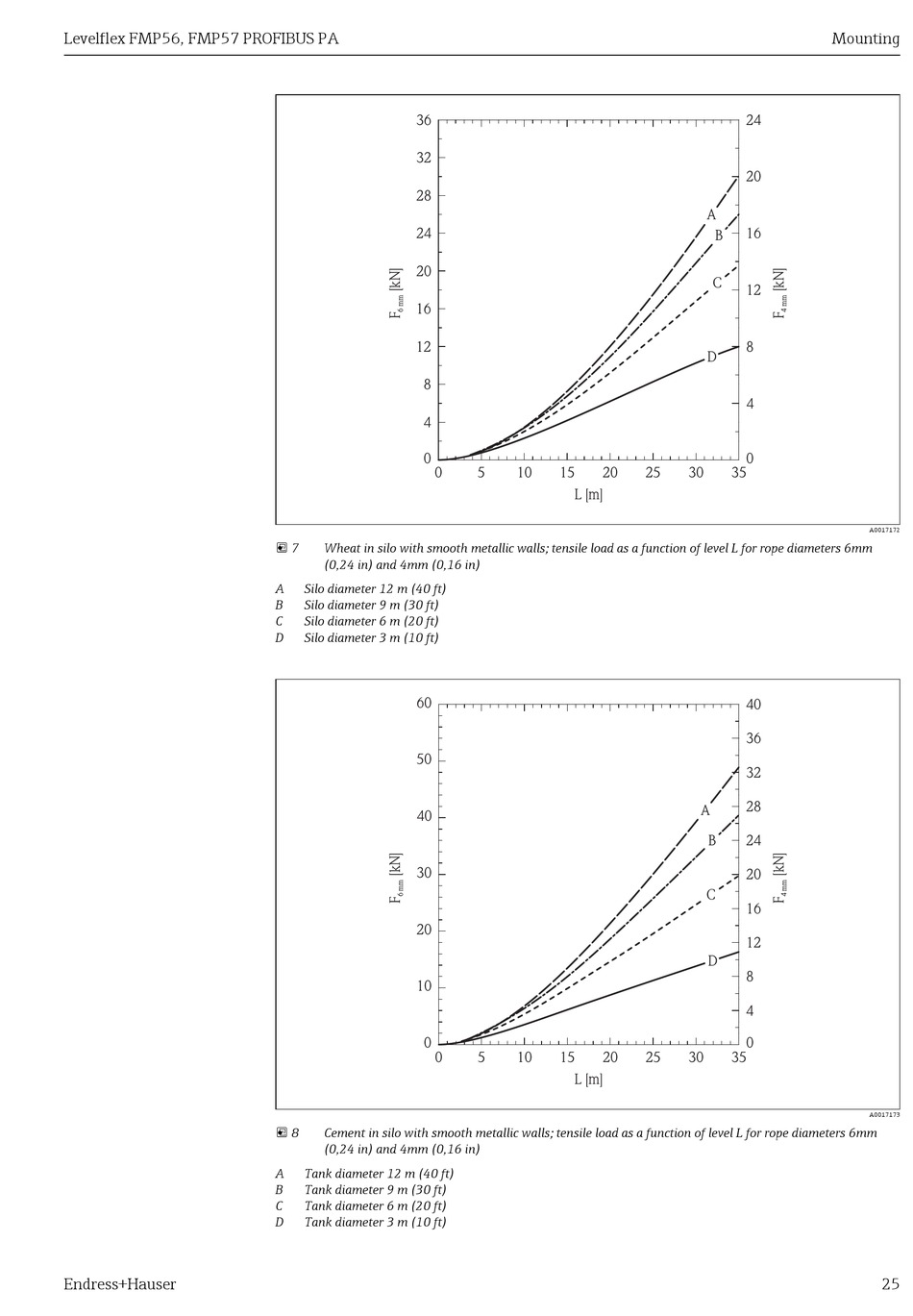

 7 Wheat in silo with smooth metallic walls; tensile load as a function of level L for rope diameters 6mm
(0,24 in) and 4mm (0,16 in)
A Silo diameter 12 m (40 ft)
B Silo diameter 9 m (30 ft)
C Silo diameter 6 m (20 ft)
D Silo diameter 3 m (10 ft)
60
50
40
30
20
10
0
0
 8 Cement in silo with smooth metallic walls; tensile load as a function of level L for rope diameters 6mm
(0,24 in) and 4mm (0,16 in)
A Tank diameter 12 m (40 ft)
B Tank diameter 9 m (30 ft)
C Tank diameter 6 m (20 ft)
D Tank diameter 3 m (10 ft)
5 10 15 20 25
L [m]
5 10 15 20 25
L [m]
Mounting
24
20
A
16
B
C
12
8
D
4
0
30 35
40
36
32
28
A
B 24
20
C
16
12
D
8
4
0
30 35
A0017172
A0017173
