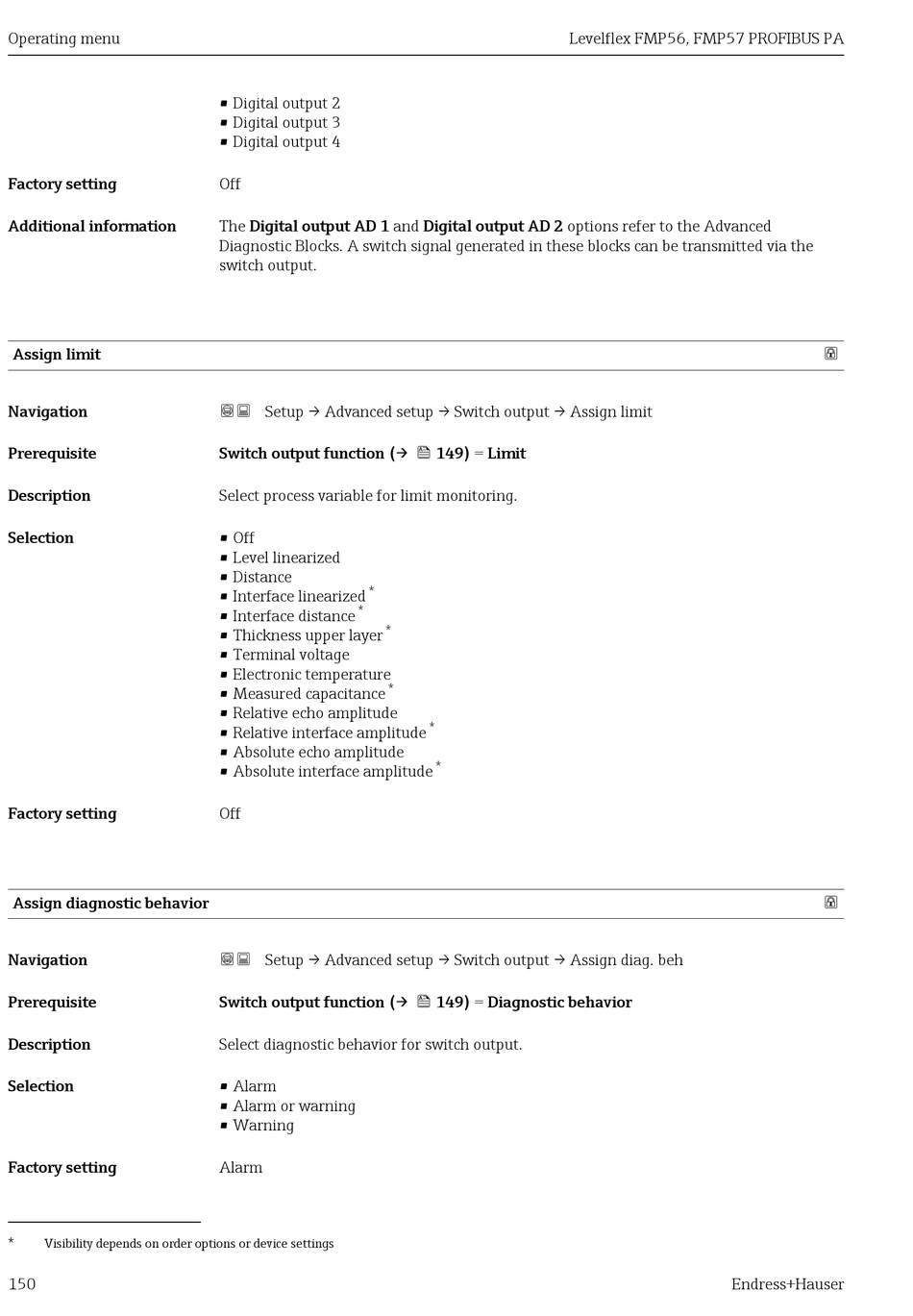

Endress+Hauser Levelflex FMP56 Operating Instructions Manual page 150

Operating menu
Factory setting
Additional information
Assign limit
Navigation
Prerequisite
Description
Selection
Factory setting
Assign diagnostic behavior
Navigation
Prerequisite
Description
Selection
Factory setting
* Visibility depends on order options or device settings
150
• Digital output 2
• Digital output 3
• Digital output 4
Off
The Digital output AD 1 and Digital output AD 2 options refer to the Advanced
Diagnostic Blocks. A switch signal generated in these blocks can be transmitted via the
switch output.
 Setup → Advanced setup → Switch output → Assign limit
Switch output function (→  149) = Limit
Select process variable for limit monitoring.
• Off
• Level linearized
• Distance
*
• Interface linearized
*
• Interface distance
*
• Thickness upper layer
• Terminal voltage
• Electronic temperature
*
• Measured capacitance
• Relative echo amplitude
• Relative interface amplitude
• Absolute echo amplitude
• Absolute interface amplitude
Off
 Setup → Advanced setup → Switch output → Assign diag. beh
Switch output function (→  149) = Diagnostic behavior
Select diagnostic behavior for switch output.
• Alarm
• Alarm or warning
• Warning
Alarm
Levelflex FMP56, FMP57 PROFIBUS PA
*
*


Endress+Hauser
