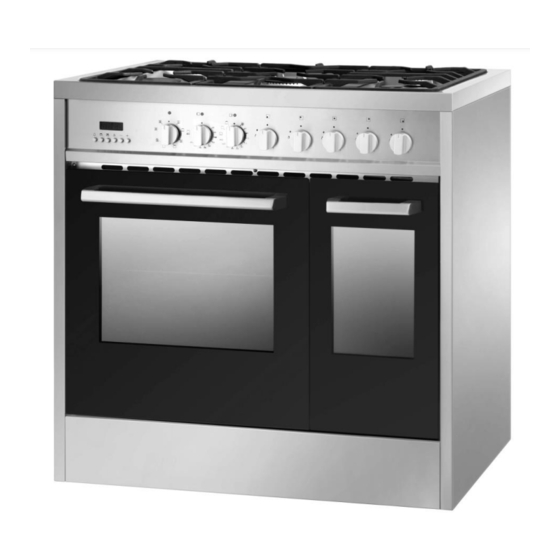

Elba EPRC-D9890TWSS Owner's Manual

Prof. range cooker (double oven)
Hide thumbs

Advertisement

Table of Contents

PROF. RANGE COOKER
(DOUBLE OVEN)
MODEL: EPRC-D9890TW(SS)
Owner's Manual
Please read this manual carefully before
operating your set.
Retain it for future reference.
Record model number and serial number
of the set.
See the label attached on the set and
quote this information to your dealer
when you require service.
For The Warranty Terms & Conditions, Please Refer To Warranty Certificate

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EPRC-D9890TWSS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Elba EPRC-D9890TWSS

Summary of Contents for Elba EPRC-D9890TWSS

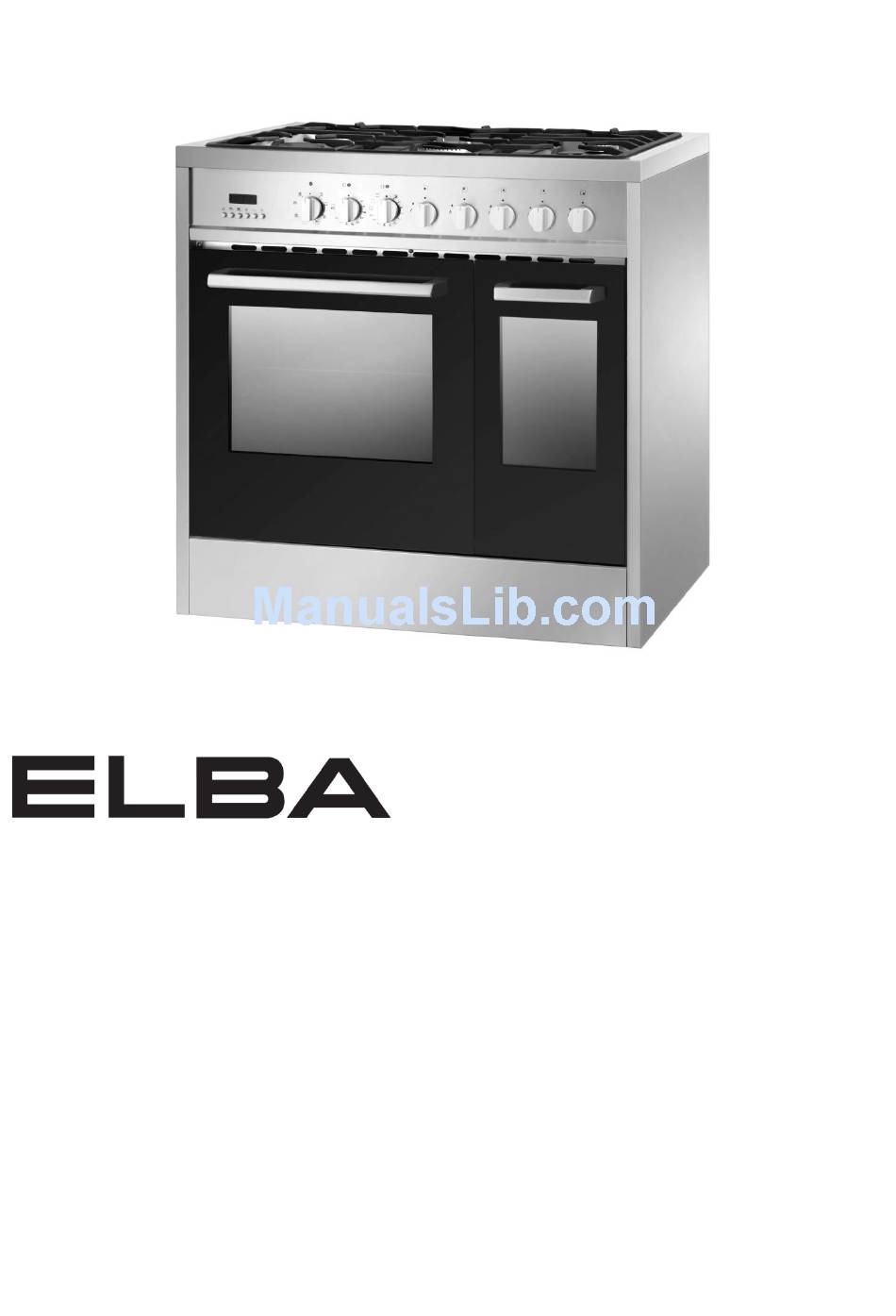

  • Page 1 PROF. RANGE COOKER (DOUBLE OVEN) MODEL: EPRC-D9890TW(SS) Owner’s Manual Please read this manual carefully before operating your set. Retain it for future reference. Record model number and serial number of the set. See the label attached on the set and quote this information to your dealer when you require service.

  • Page 2: Safety Precautions

    Please read this instruction carefully. It is advisable to keep this instruction manual in a safe place for future reference. SAFETY PRECAUTIONS 1. Keep electrical appliances out of reach from children. Do not let them to operate the appliances without supervision. 2.

  • Page 3: Instructions For Installation

    INSTRUCTIONS FOR INSTALLATION DIMENSIONS AND INSTALLATION PROCEDURES WARNING: a) Prior to the installation, ensure that the local distribution conditions (nature of the gas and gas pressure) and the adjustment of the appliance are compatible; b) Make sure the appliance is not connected to the combustion products evacuation device.

  • Page 4: Electrical Connection

    The appliance is supplied with an anti-tilting chain to prevent the appliance from tilting forward and accidental damage to the gas pipe. Take the expansion with hook and make an adequate hole in the wall behind, at the same height as the chain fixing area.

  • Page 5: Electrical Features

    ELECTRICAL FEATURES Right Oven Upper Grill Element 1200W Top Heating Element 800W Bottom Heating Element 750W Left Oven Oven light 2 x 25W Upper Grill Element 2250W Top Heating Element 1800W Bottom Heating Element 1250W Circular Heating Element 1800W Ventilator Motor Cooling fan VENTILATION In general, the appliance should have adequate ventilation for complete...

  • Page 6: Adaptation To Different Type Of Gas

    ADAPTATION TO DIFFERENT TYPE OF GAS To adapt the appliance to a gas different from which it was set up (see gas type label at the marking plate) proceed as follows: 1) Remove the grids. 2) Remove the burner caps and burner heads. Unscrew and remove the nozzles.
  • Page 7 BURNER AND NOZZLE CHARACTERISTIC TABLE Natural Gas Bypass Burner (mm) Output MJ/h Nozzle Size (mm) Output MJ/h Nozzle Size (mm) Rapid 0.44 10.80 0.88 11.00 1.50 Semi Rapid 0.34 6.30 0.68 6.60 1.16 Fish / BBQ 0.55 10.80 0.88 11.00 1.50 Auxiliary 0.29...

  • Page 8: Description Of Symbols

    DESCRIPTION OF SYMBOLS Front Left Burner Rear Left Burner Center Burner Rear Right Burner Front Right Burner Electric Oven Thermostat Left Oven Operation Right Oven Operation IGNITION AND OPERATION OF THE BURNERS In order to ignite a burner, it is necessary to depress the knob while rotating it anti- clockwise until the index is aligned with the position corresponding to the flame required.
  • Page 9 Once the ignition has taken place, adjust the flame according to your needs. For lower gas consumption and a better yield, use saucepans with diameter suitable for the burners. Avoid having the flame coming up from the side of the saucepan (see the container table).
  • Page 10 ELECTRIC OVEN FUNCTION KNOB Each of the functions listed below can be used only together with the correct temperature. The function selector knob and thermostat knob are used to select various oven functions and to choose the cooking temperatures best corresponding to the food to be cooked.
  • Page 11 TOP ELEMENT COOKING Ideal for browning food at the end of cooking. TOP GRILLING Use for toasting and melting cheese or browning. The cooking time should be no longer than 5 minutes. FAN ASSISTED GRILLING Use of the grill element and fan for grilling meats, vegetables and poultry. Preheat the oven, place the food on the grilling rack with baking tray and place in the middle of the oven.

  • Page 12: Electronic Programmer

    ELECTRONIC PROGRAMMER The LED Display will show the current time (0:00- 24:00). When the power is on, the screen will show 3 digit and AUTO. To set the clock for the first time, press button then press + or – button to set the minute and hour. MANUAL OPERATION SETTING If the AUTO is flashing, press the button to remove the AUTO function.

  • Page 13: Cooling Ventilation

    Set the cooking end time (23 hours 59 Minutes maximum) Press the button to set the cooking end time. The oven will start immediately and “AUTO” flashing. When the cooking end time reaches, the oven will with turn off automatically. The function “AUTO” will be flashing and the alarm beeps. After pressing the button, the beep will stop.
  • Page 14 Function Level Preheating Temperature Cooking Weight Knob Food to be cooked from Time Time (kg) Setting Bottom (Minutes) (ºC) (Minutes) Top Element Cooking Browning food to perfect cooking 8-10 Soles and cuttlefish Squid and prawn Kebabs Top Grilling Cod filet 10-15 Grilled vegetables Veal steak...

  • Page 15: Maintenance And Cleaning

    MAINTENANCE AND CLEANING Do not use jet steam cleaner for cleaning. Before any operation disconnect the appliance from the power supply. Wash the enamel parts with lukewarm water and mild detergent. Do not use abrasive detergent to clean the appliance. Wash the burner spreader frequently with boiling water and detergent to make sure remove any deposits after cooking which could block the flame outlet.

  • Page 16: Cleaning The Oven Door

    CLEANING THE OVEN DOOR In any case that you need to remove the oven door for better and thorough cleaning, you are required to dissemble the oven door from the appliance. Open the door completely. Lift up and turn the small levers located on the two hinges of the oven door.

  • Page 17: Main Specifications

    MAIN SPECIFICATIONS Rated Voltage: 220-240V / 50Hz Oven Capacity: 70 Litres (Left) + 36 Litres (Right) Oven Output Power: 3.45kW (Left) + 1.8kW (Right) Burner Ratings: 1 x Triple Ring Burner (3.8kW x 1) 1 x Rapid Burner (3.0kW x 1) 2 x Semi Rapid Burner (1.75kW x 2) 1 x Auxiliary Burner (1.0kW x 1) Product Dimension: 898mm (W) x 900mm (H) x 600mm (D)
