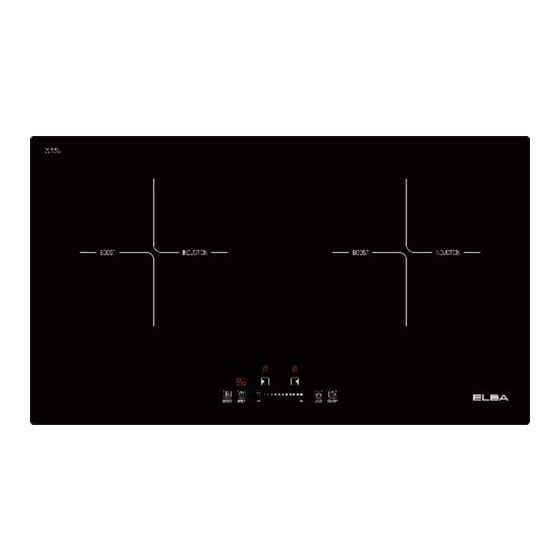

BUILT IN INDUCTION COOKER
MODEL: EDIC-K3082ST(BK)
EIC-K7082ST(BK)
EIC-K6083ST(BK)
EIC-K7094FZ(BK)
Owner's Manual
Please read this manual carefully before
operating your set.
Retain it for future reference.
Record model number and serial number
of the set.
See the label attached on the set and
quote this information to your dealer
when you require service.
For The Warranty Terms & Conditions, Please Refer To Warranty Certificate

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EDIC-K3082ST(BK) and is the answer not in the manual?

Questions and answers

Related Manuals for Elba EDIC-K3082ST(BK)

Summary of Contents for Elba EDIC-K3082ST(BK)

  • Page 1 BUILT IN INDUCTION COOKER MODEL: EDIC-K3082ST(BK) EIC-K7082ST(BK) EIC-K6083ST(BK) EIC-K7094FZ(BK) Owner’s Manual Please read this manual carefully before operating your set. Retain it for future reference. Record model number and serial number of the set. See the label attached on the set and quote this information to your dealer when you require service.

  • Page 2: Safety Precautions

    We recommend that you read the instructions in this owner’s manual carefully before using it for the best performance and to extend the lifespan of your appliance, as it will provide you with all the instructions you require to ensure its safe installation, use and maintenance.
  • Page 3  Never use metal scouring pads or sharp scrapers which will damage the glass surface leading to broken or scratches.  In order to avoid burn or electric shock, never put too much food or metal utensils on the cooktop. ...

  • Page 4: Selection Of Installation Equipment

    Installation Selection of installation equipment Cut out the work surface according to the sizes shown in the drawing. For the purpose of installation and use, a minimum of 50mm space shall be preserved around the hole. Be sure that the thickness of the work surface is at least 30mm. Please select heat-resistant work surface material to avoid larger deformation caused by the heat radiation from the appliance.

  • Page 5: Before Locating The Fixing Brackets

    Before locating the fixing brackets The unit should be placed on a stable, smooth surface (use the packaging). Do not apply force onto the controls protruding from the hob. Fix the hob on the work surface by screw four brackets on the bottom of hob (see picture) after installation. Adjust the bracket position to suit for different work surface’s thickness.

  • Page 6: Connecting The Hob To The Mains Power Supply

    Connecting the hob to the mains power supply The power supply should be connected in compliance with the relevant standard, or a single-pole circuit breaker. The method of connection is shown below. EIC-K6083ST(BK) EIC-K7094FZ(BK) 1. If the cable is damaged or needs replacing, this should be done by an authorized technician using the proper tools, so as to avoid any accidents.

  • Page 7: Product Overview

    Product Overview Top View 1. Min/Max. 1200/1500W zone 2. Min/Max. 1800/2100W zone 3. Control panel EDIC-K3082ST(BK) 1. Max. 1400W zone 2. Min/Max. 1800/2200W zone 3. Max. 1800W zone 4. Control panel EIC-K6083ST(BK)

  • Page 8: Control Panel

    1. Min/Max. 1800/2100W zone 2. Min/Max. 1800/2100W zone 3. Control panel EIC-K7082ST(BK) 1. Min/Max. 1800/2100W zone 2. Min/Max. 1800/2100W zone 3. Min/Max. 1800/2100W zone 4. Min/Max. 1800/2100W zone 5. Min/Max. 3000/3600W zone (Flexi Slide) 6. Control panel EIC-K7094FZ(BK) Control Panel 1.
  • Page 9 EIC-K6083ST(BK) 1. ON/OFF 2. Power Control 3. Boost Control 4. Child Lock 5. Heating Zone 6. Timer Control EIC-K7082ST(BK) EIC-K7094FZ(BK)

  • Page 10: Using The Touch Controls

    Using the Touch Controls • The controls respond to sensor touch, so you don’t need to apply any pressure. • Use the ball of your finger, not its tip. • You will hear a beep corresponding to the sensor touch function. •...
  • Page 11 Using Suitable Cookware for Induction Use cookware made from ferromagnetic materials which are compatible with the induction principle. Look for the induction symbol on the packaging or on the bottom of the pan. We recommend cookware made from cast iron, enamel coated steel or stainless steel cookware designed for induction cooking.
  • Page 12 EIC-K7082ST(BK) Size of burner (mm) The minimum cookware (diameter /mm) EIC-K7094FZ(BK) Size of burner (mm) The minimum cookware (diameter /mm) 210 x 190 Flexi Slide Zone...

  • Page 13: Using Your Induction Hob

    Using your Induction Hob To start cooking After power on, the buzzer beeps once. All the indicators light up for 1 second then go out. Indicating the induction hob has entered the state of standby mode. Touch the ON/OFF control. All the indicators show “-“. Place a suitable pan on the cooking zone that you wish to use.

  • Page 14: When You Have Finished Cooking

    When you have finished cooking 1. Touching the heating zone selection control that you wish to switch off. 2. Turn the cooking zone off by touching “-” button until display show “0” (For Sliding Touch model) / by sliding to left to area “0” until display show “0” (For Sensor Touch model).

  • Page 15: Using The Boost Function

    Using the boost function 1. Select the zone with boost function required. until power level indication shows “P”. 2. Touch boost control NOTE: Boost function will only last for 5 minutes by default, after that the boost zone will return to level 9 automatically.
  • Page 16 Using Flexi Slide function (Only applicable for EIC-K7094FZ(BK)) • This may be used as a single zone or two individual zones depending on the cooking needs under different situations. • It is made of two independent inductors that can be controlled separately. When the Flexi Slide is turned on, only the zone covered by the cookware is activated (This function only works on model EIC-K7094FZ(BK)).
  • Page 17 As a single zone (Flexi Slide) Activate Flexi Slide function To activate the Flexi Slide function, press the two heating zone selection keys simultaneously. 2. The buzzer beeps indicating that the induction hob enters selection of Flexi Slide, and the corresponding indicator will flash. 3.

  • Page 18: Locking The Controls

    Locking the Controls • You can lock the controls to prevent unintended use (for example children accidentally turning the cooking zones on). • When the controls are locked, all the controls except the ON/OFF control are disabled. To lock the controls button for 3 seconds.

  • Page 19: Using The Timer As A Minute Minder

    Using the Timer You can use the timer in two different ways: • Use it as a minute minder. In this case, the timer will not turn any cooking zone off when the set time is up. • Use it to turn off after the set time is up. You can set the timer for up to 99 minutes. Using the Timer as a Minute Minder If you are not selecting any cooking zone Make sure the cooktop is turned on and the zone selection key is not activated...
  • Page 20 When the time is set, it will begin to countdown immediately. The display will show the remaining time. Buzzer will beep for 30 seconds and the timer indicator shows “- -” when the setting time finished. Setting the timer to switch off one or more cooking zones If you are selected any cooking zone Touching the heating zone selection control that you want to set the timer.
  • Page 21 Set the timer setting by touching “+” button (For Sensor Touch Model) / sliding the controls to right (For Sliding Touch model). Now the timer will appear from 05 minutes become 95 minutes. When the time is set, it will begin to countdown immediately. The display will show the remaining time.

  • Page 22: Cancel The Timer

    Cancel the timer Touch the heating zone selection control that you wish to cancel the timer. Touch the timer control and the indicator will flash. Touch the “-” button (For Sensor Touch Model) / touch the slider control (For Sliding Touch model) to left to set the timer to “00”...

  • Page 23: Cooking Guidelines

    Model: EIC-K7082ST(BK) This model comes with total rated power: 3,600W. When the two cooking zones are activated, the total power sharing function will limit the maximum power to use. For example, when two cooking zones are activated, if one of the cooking zones has activated the Boost function, the power sharing function will lower down another cooking zone if the power is more than 3,600W.
  • Page 24 tender stews because the flavour develops without overcooking the food. • You should also cook egg-based and flour-thickened sauces below boiling point. • Some tasks including cooking rice by the absorption method may require a setting higher than the lowest setting to ensure the food is cooked properly in the time recommended.

  • Page 25: Heat Settings

    Heat Settings The settings below are reference guidelines only. The exact setting will vary depending on several factors, including your cookware and the amount of food you are cooking. Experiment with the hob to find the best settings that suit you. Purpose Heat Setting •...

  • Page 26: Cleaning And Maintenance

    Cleaning and Maintenance What? How? Important!  When the power is switched off, there Everyday soiling on 1. Switch off the power. will be no ‘hot surface’ indication but 2. Apply a cooktop cleaner while the glass (fingerprints, glass is still warm. (Not hot!) the cooking zone may still be hot! Take marks, stains left by extreme care.
  • Page 27 Troubleshooting Guides Problem Possible causes What to do The cooktop cannot be No power. Make sure the cooktop is connected to turned on. the power supply and it is switched on. Check whether there is a power outage in your area. If you’ve checked everything and the problem persists, contact the service center.

  • Page 28: Technical Specification

    Technical Specification Model EDIC-K3082ST(BK) Cooking Zones 2 Zones Supply Voltage 220-240V~ 50/60Hz Total Power 2900W Product Size (W X D X H) 290 x 520 x 58 mm Built-in Dimension (W X D) 270 X 490 mm Model EIC-K6083ST(BK) Cooking Zones 3 Zones Supply Voltage 220-240V~ 50/60Hz...
