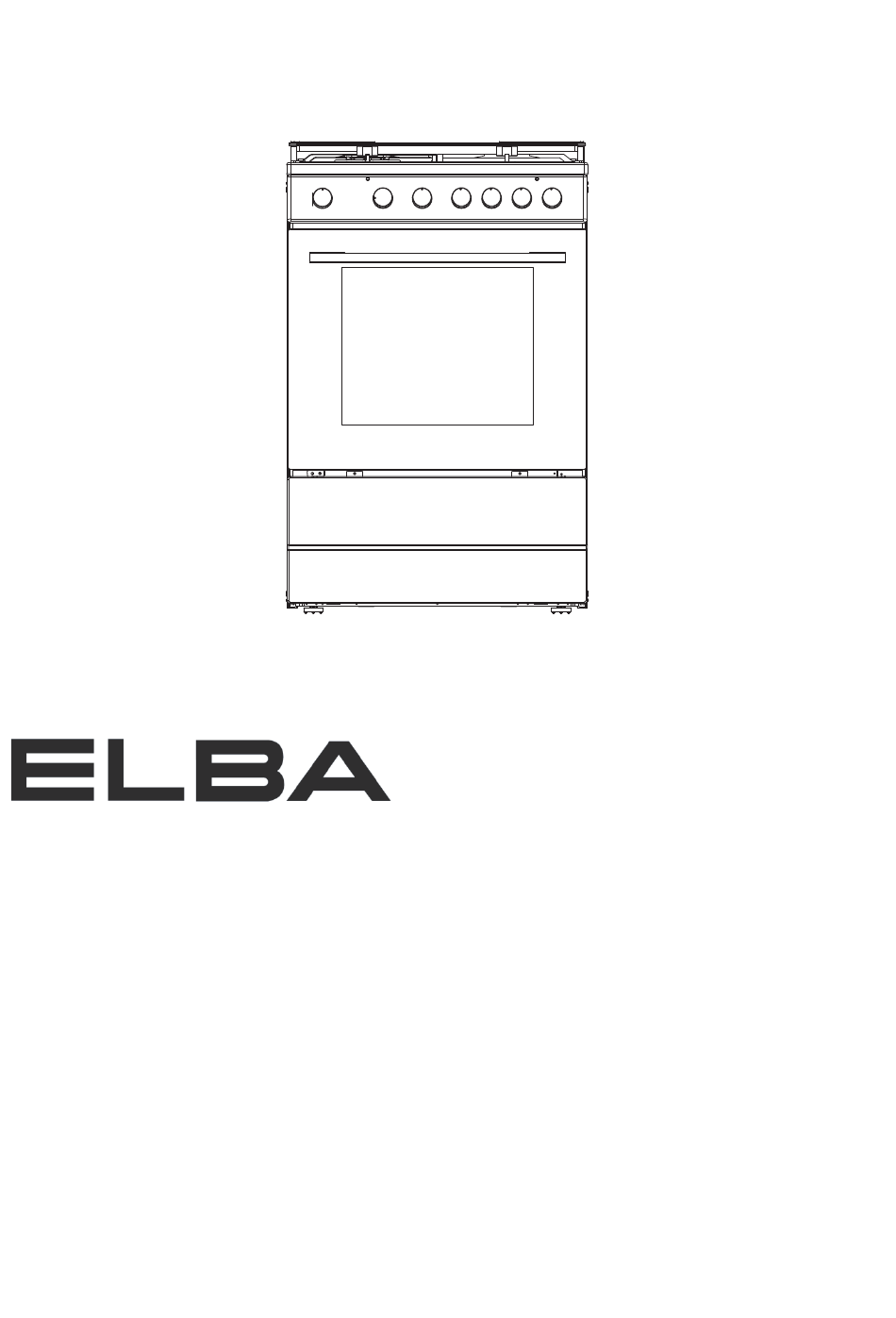

GAS COOKER

MODEL: EGC-N6704G(BK)

EGC-N6784E(SS)

Owner's Manual

Please read this manual carefully before

operating your set.

Retain it for future reference.

Record model number and serial number

of the set.

See the label attached on the set and

quote this information to your dealer

when you require service.

For The Warranty Terms & Conditions, Please Refer To Warranty Certificate

Table of Contents

Need help?

Do you have a question about the EGC-N6704G BK and is the answer not in the manual?

Questions and answers

Summary of Contents for Elba EGC-N6704G BK

Page 1 GAS COOKER MODEL: EGC-N6704G(BK) EGC-N6784E(SS) Owner’s Manual Please read this manual carefully before operating your set. Retain it for future reference. Record model number and serial number of the set. See the label attached on the set and quote this information to your dealer when you require service.
Page 2: Instructions For Installation
INSTRUCTIONS FOR INSTALLATION WARNING: a. Prior to installation, ensure that the local distribution conditions (nature of the gas and gas pressure) and the adjustment of the appliance are compatible; b. The adjustment conditions for the appliance are stated on marking plate; c.
Page 3: Connection Of The Feeding Cable To The Mains
CONNECTION OF THE FEEDING CABLE TO THE MAINS Connect the feeding cable to a plug suitable for the load indicated on the rating plate of the product. In case of a direct connection to the mains (cable without plug), it is necessary to insert a suitable omnipolar switch before the appliance, with minimum opening between contacts of 3 mm (the grounding wire should not be interrupted by the switch).
Page 4: Conditions Of Use
We recommend that you read the instructions in this Manual carefully before use for the best performance and to extend the life of your appliance, as it will provide you with all the instructions required to ensure its safe installation, use and maintenance.
Page 5: Warnings For Use Of Oven, And Appliance Hob
4. WARNINGS FOR USE OF OVEN, AND APPLIANCE HOB 4.1 Oven warnings Do not push down or apply any weight on an open oven door. Do not line oven with foil or place anything on the bottom of the oven while baking to avoid permanent damage, as trapped heat will crack or damage the enamel floor of the oven cavity liner.
Page 6 7. SPECIFICATIONS OF PRODUCT STRUCTURE 7.1 Description of electric cooker fan (forced & conventional oven) 1. Cooker Burner 2. Cooker 3. Control Panel 4. Guide bracket 5. Shelf 6. Baking tray 7. Oven Door 8. Cover glass 9. Side panel 10.
Page 7: Using The Oven
7.3 Fitting oven shelves Ensure shelf orientation is correct (refer to the picture). Slide into the oven at an angle, until the raised back of the shelf is past the stopper on the side runners. Lower the front of the shelf and push in until the stopper is reached. NOTE: The shelf cannot be put on the top ledge.
Page 8 OVEN FUNCTION LAMP The lamp of the oven is on, with no heating elements operated (electrical resistances). This function is to display the food inside the oven until the function is switched off. CONVENTIONAL HEATING The heat is provided from the top and bottom elements. The oven must be preheated before the food is placed inside.
Page 9 2) Grill Function Using the grill To turn on the electric grill function, simply turn the gas oven thermostat knob to the position The cooking temperature is set by turning the grill thermostat knob clockwise to the value required, between Min. and Max.
Page 10: Using The Hotplates Of Your Cooker
9. USING THE HOTPLATES OF YOUR COOKER 9.1 The hob control knobs The symbols on the control knobs mean the following: No gas flow Maximum gas flow Minimum gas flow All operating positions must be set between the maximum and minimum flow settings, and never between the maximum setting and the closed position.
Page 11: Get To Know Your Oven
10. GET TO KNOW YOUR OVEN Get to know your new oven with this Simple Test Cake Although we strive for a perfect performing oven, it is possible that there will be some variation in colour when baking. Therefore, we suggest this simple, easy and delicious to make Simple Test Cake, it can help you understand your new oven.
Page 12: Fitting Oven Accessories And Cleaning
11. FITTING OVEN ACCESSORIES AND CLEANING 11.1 Safety warnings about cleaning Always make sure that the cooker is turned off before cleaning. Always clean cooker immediately after use. Do not use steam cleaners. These may cause moisture build-up. Do not use caustic-based cleaners. These will damage aluminums parts, and remove enamel gloss. 11.2 Cleaning the enamel Keep enamel clean by wiping it with a soft cloth dipped in warm soapy water.
Page 13 11.5 Cleaning the Oven Open the door fully. Remove oven shelves and side racks. Clean in hot soapy water. 11.6 Cleaning the oven door / How to remove the oven doors For a more thorough clean, you can remove and disassemble the oven door. Proceed as follows: Oven door structures 1 remove and assemble procedure: Open the door to the full extent (fig.1);...
Page 14: Main Specification
MAIN SPECIFICATION NOTICE This product must not b e disposed together with domestic waste. It has to be disposed at an authorized place for recycling of electrical and electronic appliances. By collecting and recycling waste, you help to save natural resources and make sure the product is disposed in an environmental friendly and healthy way.
