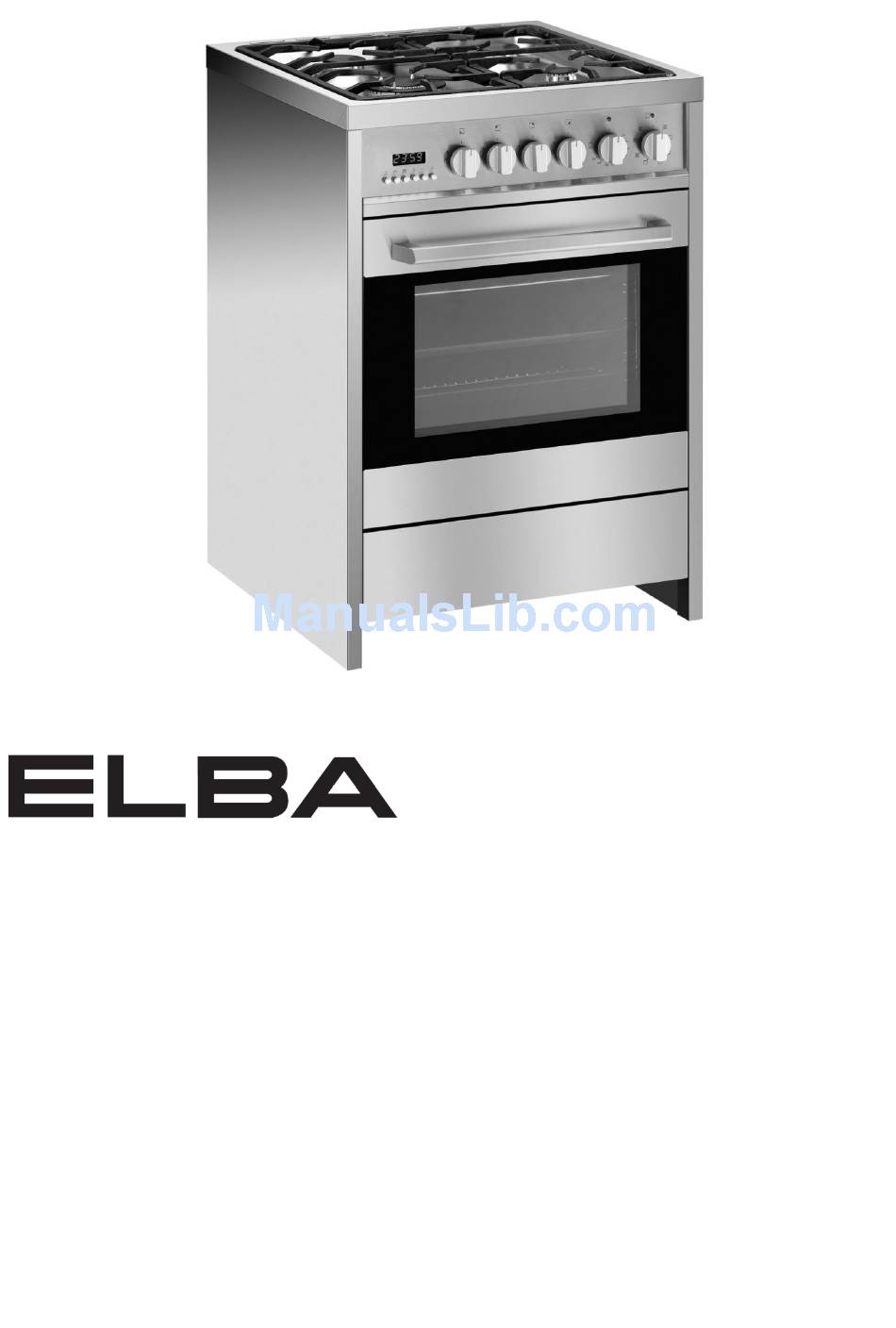

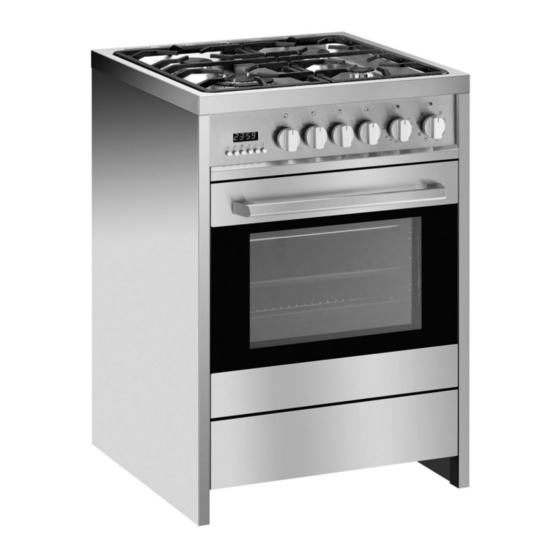

PROF. RANGE COOKER
MODEL: EPRC-A6456GE(SS)
Owner's Manual
Please read this manual carefully before
operating your set.
Retain it for future reference.
Record model number and serial number
of the set.
See the label attached on the set and
quote this information to your dealer
when you require service.
For The Warranty Terms & Conditions, Please Refer To Warranty Certificate
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Elba EPRC-A6456GE
Summary of Contents for Elba EPRC-A6456GE
- Page 1 PROF. RANGE COOKER MODEL: EPRC-A6456GE(SS) Owner’s Manual Please read this manual carefully before operating your set. Retain it for future reference. Record model number and serial number of the set. See the label attached on the set and quote this information to your dealer when you require service.
-
Page 2: Table Of Contents
INDEX Cautions Page 3-4 Instructions for installation: Dimensions and installation features Page 5 Electrical connection Page 6-7 Ventilation and gas connection Page 7 Abnormal Operation Page 8 Instructions for use: Description of the main parts of the appliance Page 8 Ignition and operation of the burners Page 9 Advice on the use of gas burners... -
Page 3: Cautions
Please read this instruction carefully. It is advisable to keep this instruction manual in a safe place for future reference. SAFETY PRECAUTIONS Keep electrical appliances out of reach from children. Do not let them to operate the appliances without supervision. This product is for household and indoor use only. - Page 4 Before maintenance or cleaning, disconnect the appliance from the mains and wait for it to cool down. Always use oven gloves to remove and replace food in the oven. Do not remove the plug by pulling the cable. Do not store or place flammable liquids or items in the vicinity of this appliance.
-
Page 5: Instructions For Installation
INSTRUCTIONS FOR INSTALLATION DIMENSIONS AND INSTALLATION FEATURES WARNING: Prior to installation, ensure that the local distribution conditions (nature of the gas and gas pressure) and the adjustment of the appliance are compatible; The adjustment conditions for this appliance are stated on marking plate; This appliance is not connected to a combustion products evacuation device. -
Page 6: Electrical Connection
The cooker is supplied with an anti-tilting chain to prevent the appliance from tilting forward and accidental damage to the gas pipe. Take the expansion with hook and make an adequate hole in the wall behind, at the same height as the chain fixing area. -
Page 7: Ventilation And Gas Connection
Before connecting to the mains, make sure that: 1) The electrical counter, the safety valve, the feeding line and the socket are adequate to with stand the maximum load required (see rating plate). 2) The supply system is regularly grounded, according to the regulations in force. 3) The socket or the omnipolar switch can easily be reached after the installation of the oven. -
Page 8: Abnormal Operation
ABNORMAL OPERATION ANY OF THE FOLLOWING ARE CONSIDERED TO BE ABNORMAL OPERATION AND MAY REQUIRE IMMEDIATE SERVICING: Yellow tipping of the hob burner flame. Sooting up of cooking utensils. Burners not igniting properly. Burners failing to remain alight. Burners extinguished by oven door. Gas valves, which are difficult to turn. -
Page 9: Ignition And Operation Of The Burners
DESCRIPTIONS OF SYMBOLS IGNITION AND OPERATION OF THE BURNERS In order to ignite a burner, it is necessary to depress the knob while rotating it anti- clockwise, until the index is aligned with the position corresponding to the maximum gas delivery (i.e. the large flame symbol). As far as the models equipped with a safety valve are concerned, once the flame is lit hold the knob depressed for about 3-4 seconds till the device keeps the burner automatically lit. -
Page 10: Advice On The Use Of Gas Burners
RECOMMENDATIONS In case of electric power failure, it is necessary to carry out the above-described operations by putting a gas lighter or a flame near the burner (in such an event, pay the utmost attention not to burn yourself). The safety valve (for models where such item is provided) intervenes in case of accidental flame failure, blocking the gas delivery (e.g. - Page 11 INSTRUCTIONS FOR USE - OVEN ELECTRIC OVEN THERMOSTAT KNOB Selection of cooking temperature is carried out by turning the knob clockwise to the required temperature, between 60º to MAX. If the appliance is operating with an electric oven, the warning light will come on when the oven is heating up. When it goes out it means that it reaches the required temperature.
-
Page 12: Oven Function
OVEN FUNCTIONS The oven door must be closed for all cooking methods. LAMP The lamp of the oven is on, with no heating elements operated (electrical resistances). During oven operation the lamp will always remain on. TRADITIONAL COOKING THERMOSTAT SELECTOR SWITCH FROM 60º TO MAX The heat is provided from the top and bottom elements. -
Page 13: Electronic Programmer
ELECTRONIC PROGRAMMER Showing time (0:00-24:00). The screen shows 3 flashing number and “AUTO” if the power is on. In order to set correct time, press the button ( ) first, then + or - button to carry forward backward the figure until the exact time shows. -
Page 14: Instruction For Cooking
INSTRUCTIONS FOR COOKING... -
Page 17: Maintenance And Cleaning
MAINTENANCE AND CLEANING Do not use jet of steam for cleaning. Before any operation disconnect the appliance electrically. Wash the enamel parts with lukewarm water and detergent. Do not use abrasive products. Wash the burner spreader frequently with hot water and detergent. - Page 18 CLEANING THE OVEN WARNING: Ensure that all controls are in the “OFF” position and wait for the grill element to cool down. 1) Support the front of the grill element while you remove the knurled screw retaining the element. 2) Lower the front of the element carefully to the rest position. 3) When cleaning the oven make sure do not apply any forces to the grill element 4) When the cleaning is completed, carefully remove any cleaning chemicals...
- Page 19 MAIN SPECIFICATION Rated Voltage : 220-240V/50Hz Oven Light : 300/E14 x 1 Oven Capacity : 56 Litres Rated Power : 2 x Semi Rapid Burner (1.75kW x 2) 1 Triple Ring Burner (3.50kW x 1) 1 Auxiliary burner (1.00kW x 1) Product Dimension : 600mm (W) x 910mm (H) x 600mm (D) NOTICE This product must not be disposed together with domestic waste.
