YASKAWA
Varispeed G5/F7/G7 OPTION CARD
PG SPEED CONTROLLER CARD PG-B2
INSTRUCTIONS
Upon receipt of the product and prior to initial operation, read these instructions
thoroughly and retain them for future reference.
YASKAWA
MANUAL NO. TOBP C730600 09A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PG-B2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for YASKAWA PG-B2

Summary of Contents for YASKAWA PG-B2

  • Page 1 YASKAWA Varispeed G5/F7/G7 OPTION CARD PG SPEED CONTROLLER CARD PG-B2 INSTRUCTIONS Upon receipt of the product and prior to initial operation, read these instructions thoroughly and retain them for future reference. YASKAWA MANUAL NO. TOBP C730600 09A...
  • Page 2 Yaskawa. No patent liability is assumed with respect to the use of the information contained herein. Moreover, because Yaskawa is con- stantly striving to improve its high-quality products, the information contained in this manual is subject to change without notice.

  • Page 3: Notes For Safe Operation

    1. Before installing the Encoder (PG) Feedback Card (the PG-B2 card), read this manual and the man- ual for the installation of the drive. 2. Before connecting the PG-B2 card or external terminals, turn OFF the main power to the drive and verify that the CHARGE indicator lamp of the Drive is OFF.

  • Page 4: Table Of Contents

    6 Application of Encoder (PG) - - - - - - - - - - - - - - - - - - - - - - - 13 7 PG-B2 Card Parameter List - - - - - - - - - - - - - - - - - - - - - - - 14...

  • Page 5: Inspection After Delivery

    Prior to shipment, all Yaskawa products undergo rigorous inspection procedures to ensure accu- racy and reliability. We recommend checking the following items upon receipt. • Check that the code number (73600-A013X) and product type (PG-B2) labeled on the actual card correspond to product ordered.

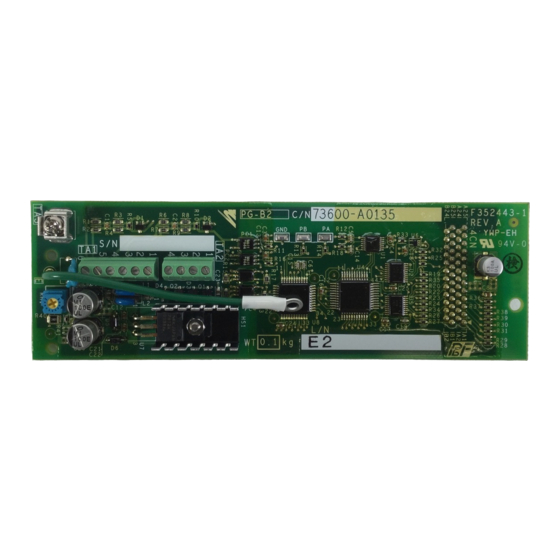

  • Page 6: Introduction And Component Names

    Using standard software, the PG-B2 card can be used for closed loop control (Flux Vector or V/F with PG). The marker (C or Z) pulse cannot be used from the encoder.

  • Page 7: Installation Procedure

    3. Align the two holes of the PG-B2 card and projections as shown in the detailed side view, first at location (a) and then at (b), and precisely place the card on the option A connector.
  • Page 8 Option A Option A installation spacer Note: Be sure to remove the option clip before installing the PG-B2 card. If the card is installed with the clip attached, the card cannot be cor- rectly installed, and the card will perform poorly.

  • Page 9: Interconnection

    4 Interconnection Interconnection Fig. 4 shows interconnection between the Drive, the PG-B2 card, and peripheral equipment. Inverter Motor Varispeed G7 Pulse A Pulse B Pulse monitor outputs Pulse A Pulse B E (G) Pulse A Pulse B (Forward rotation) Grounding lead wire Note: The PG terminal symbols are the examples when using a Yaskawa’s motor.

  • Page 10: Wiring

    In general, motor forward direction is counterclockwise (CCW) as viewed from the load shaft. For YASKAWA’s motor, phase A of PG output leads phase B by a phase angle of 90° in clockwise (CW) rotation. According to PG, phase A lags phase B by a phase angle of 90°...

  • Page 11: Wiring Precautions

    5 Wiring Wiring Precautions Make sure of the followings when wiring. • Separate the control signal wires (terminal blocks TA1 and TA2) of the PG-B2 card from the main NOTE circuit wires and other power cables. • Use a shielded wire to connect the encoder (PG). Connect the wires as shown in Fig. 5 to prevent noise interference.
  • Page 12 − 28-16 Strip back insulation for a distance of 0.22 inches (5.5 mm) on wire leads connected to the PG-B2 card. 0.22 in. (5.5mm) Fig. 6 Connecting Wire End for Terminal Blocks TA1 and TA2 Side Notes on selecting cables NOTE •...

  • Page 13: Application Of Encoder (Pg)

    6 Application of Encoder (PG) Application of Encoder (PG) The maximum frequency of the encoder (PG) output pulses that can be detected is 32,767 Hz. Therefore, select a PG that outputs about 20 kHz at the motor rotation speed at maximum frequency output.

  • Page 14: Pg-B2 Card Parameter List

    PG-B2 Card Parameter List If using the PG-B2 card with any Yaskawa drives other than the G5, F7, or G7, refer to the instruction manual of the drive being used. Table 3 PG-B2 Card Parameter List PG-B2 Card Parameter List...
  • Page 15 7 PG-B2 Card Parameter List Table 3 PG-B2 Card Parameter List (cont’d) PG-B2 Card Parameter List Digital Digital Param- Parameter Setting Factory Change Data Selection Control Method Operator Operator eter Name Range Setting During G5, G7, F7 Function Display Opera-...

  • Page 16: Revision History

    New edition that was created by binding together the Japanese version (TO-C736-40.2) and the English version (TOE-C736-40.2) of the VARISPEED-616G5 OPTION CARD PG SPEED CON- − − TROLLER CARD PG-B2 INSTRUCTIONS and by adding information on the Varispeed F7 and the Varispeed G7 Inverters. Back cover August 2005...
