NEPSI Zone 1, Zone 21
Gas and dust explosion
protection
Design of measuring
system
8
Determine the temperature class for gas in relation to the ambient T
Determine the maximum surface temperature for dust in relation to the max. ambient temperature T
max. medium temperature T
M
Example
Device: compact version, Promag 53 , DN 25, PTFE
Max. ambient temperature: T
a
Max. medium temperature: T
M
Promag 5*P**-************
1) 2)
PFA; PTFE

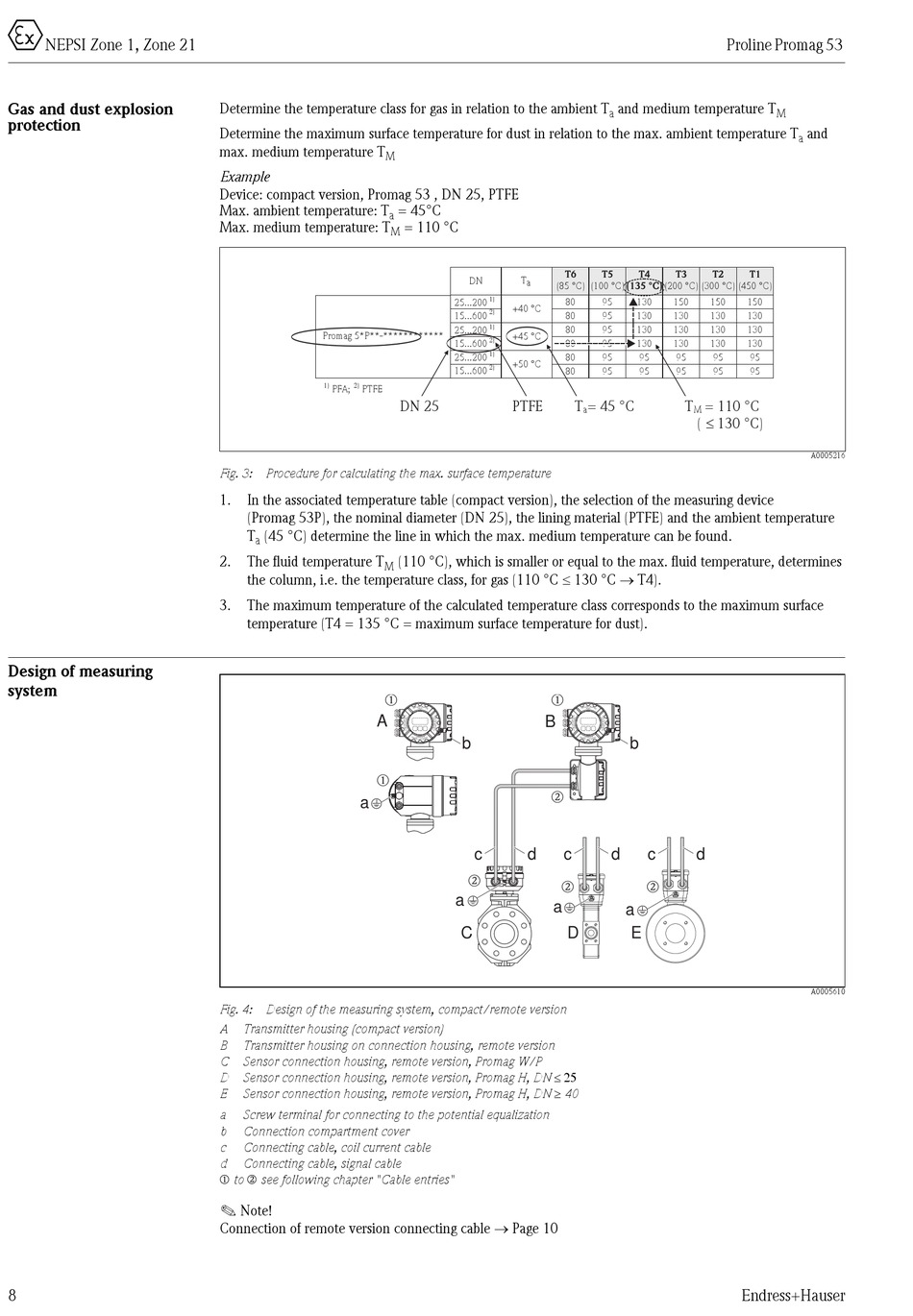

Fig. 3: Procedure for calculating the max. surface temperature
1. In the associated temperature table (compact version), the selection of the measuring device
(Promag 53P), the nominal diameter (DN 25), the lining material (PTFE) and the ambient temperature
T (45 °C) determine the line in which the max. medium temperature can be found.
a
2. The fluid temperature T
M
the column, i.e. the temperature class, for gas (110 °C  130 °C T4).
3. The maximum temperature of the calculated temperature class corresponds to the maximum surface
temperature (T4 = 135 °C = maximum surface temperature for dust).
m
A
m
a
Fig. 4: Design of the measuring system, compact/remote version
A Transmitter housing (compact version)
B Transmitter housing on connection housing, remote version
C Sensor connection housing, remote version, Promag W/P
Sensor connection housing, remote version, Promag H, DN 
D
Sensor connection housing, remote version, Promag H, DN  40
E
a Screw terminal for connecting to the potential equalization
b Connection compartment cover
c Connecting cable, coil current cable
d Connecting cable, signal cable
m to n see following chapter "Cable entries"
!
Note!
Connection of remote version connecting cable Page 10
