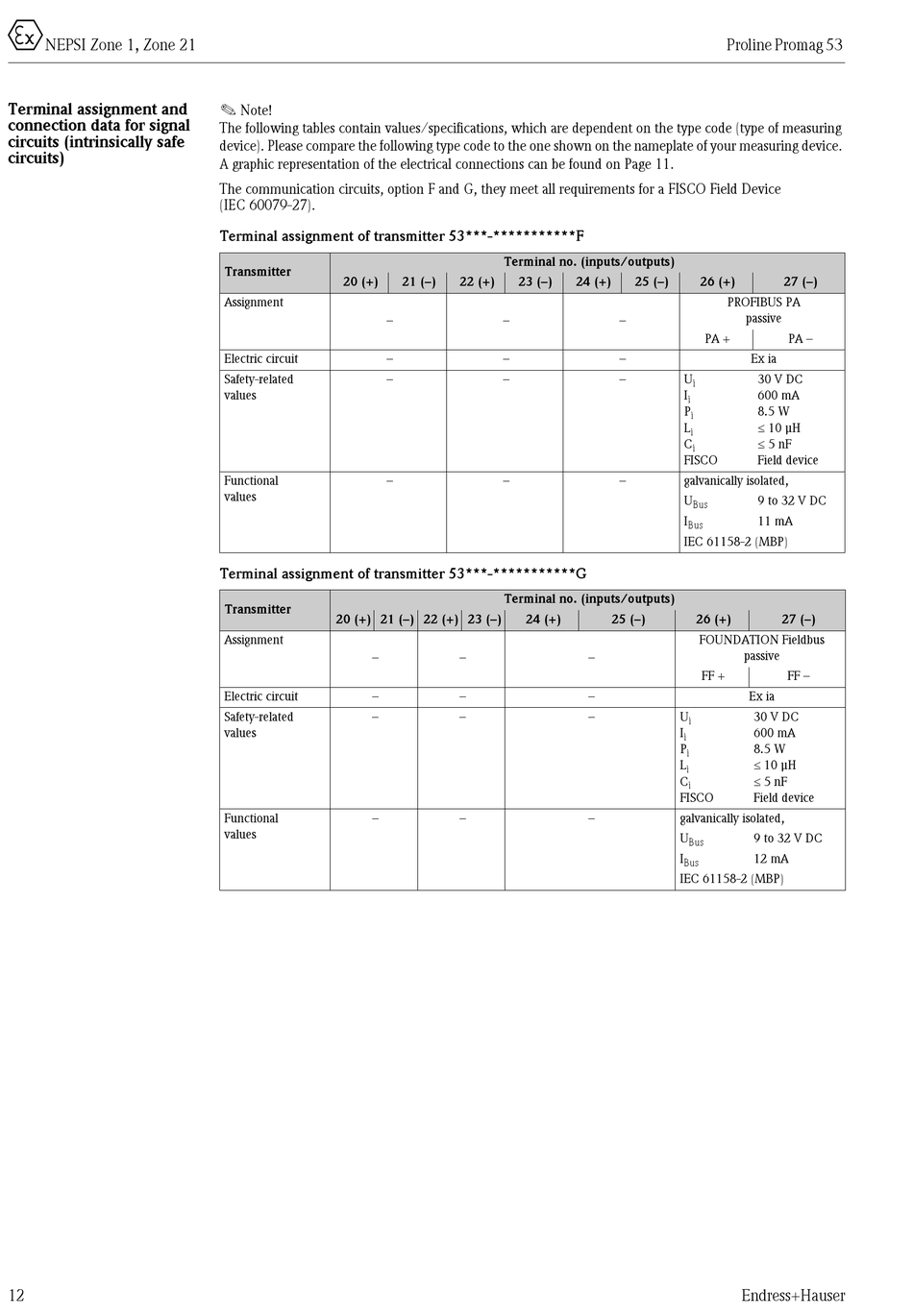

NEPSI Zone 1, Zone 21
Terminal assignment and
connection data for signal
circuits (intrinsically safe
circuits)
12
!
Note!
The following tables contain values/specifications, which are dependent on the type code (type of measuring
device). Please compare the following type code to the one shown on the nameplate of your measuring device.
A graphic representation of the electrical connections can be found on Page 11.
The communication circuits, option F and G, they meet all requirements for a FISCO Field Device
(IEC 60079-27).
Terminal assignment of transmitter 53***-***********F
Transmitter
20 (+)
Assignment
–
Electric circuit
–
Safety-related
–
values
Functional
–
values
Terminal assignment of transmitter 53***-***********G
Transmitter
20 (+) 21 (–) 22 (+) 23 (–)
Assignment
–
Electric circuit
–
Safety-related
–
values
Functional
–
values
Terminal no. (inputs/outputs)
21 (–)
22 (+)
23 (–)
–
–
–
–
Terminal no. (inputs/outputs)
24 (+)
–
–
–
–
Proline Promag 53
24 (+)
25 (–)
26 (+)
PROFIBUS PA
passive
–
PA +
–
–
U
i
I
i
P
i
L
i
C
i
FISCO
–
galvanically isolated,
U
Bus
I
Bus
IEC 61158-2 (MBP)
25 (–)
26 (+)
FOUNDATION Fieldbus
passive
–
FF +
–
–
U
i
I
i
P
i
L
i
C
i
FISCO
–
galvanically isolated,
U
Bus
I
Bus
IEC 61158-2 (MBP)
Endress+Hauser
27 (–)
PA –
Ex ia
30 V DC
600 mA
8.5 W
10 μH
5 nF
Field device
9 to 32 V DC
11 mA
27 (–)
FF –
Ex ia
30 V DC
600 mA
8.5 W
10 μH
5 nF
Field device
9 to 32 V DC
12 mA
