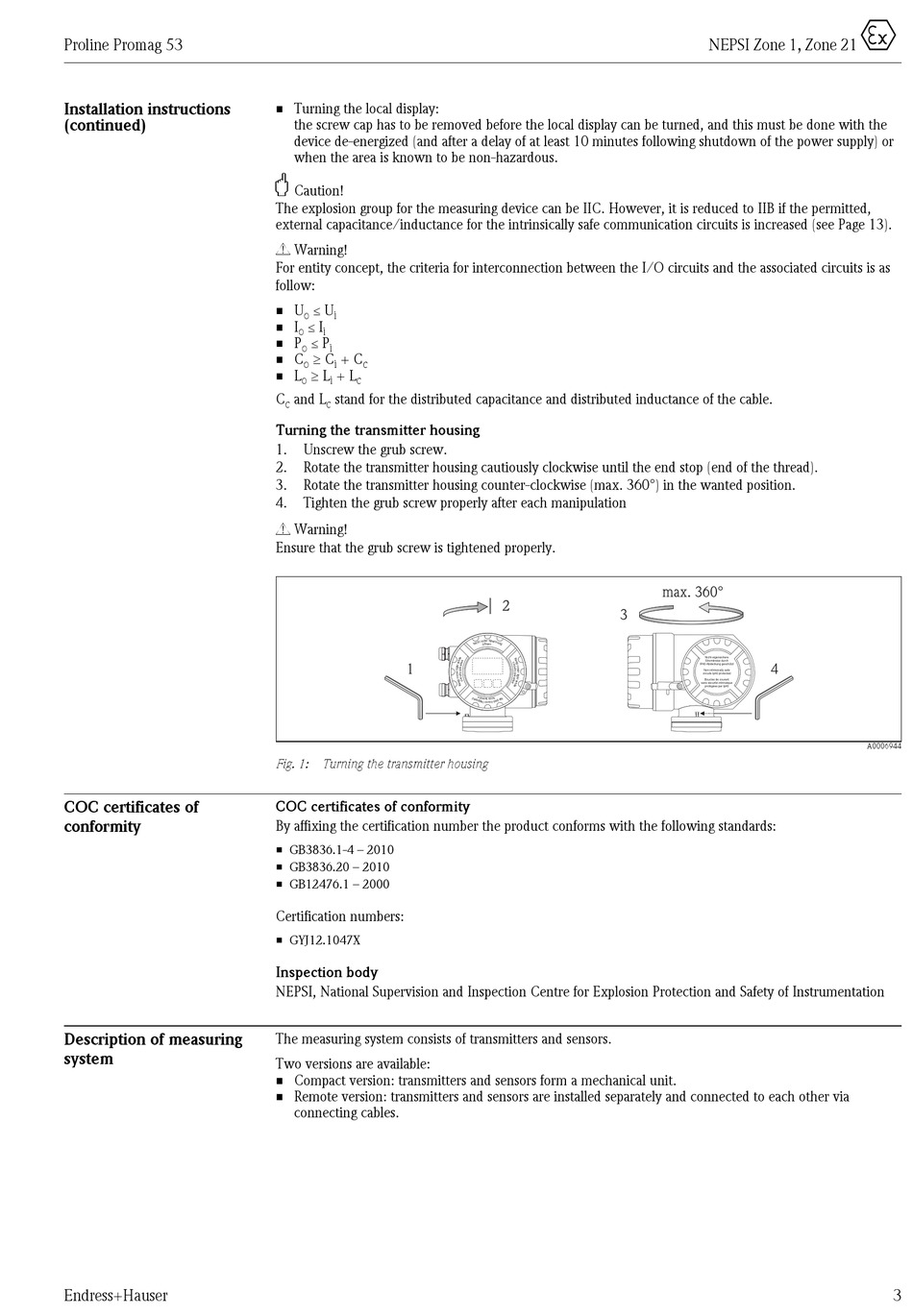

Proline Promag 53
Installation instructions
(continued)
COC certificates of
conformity
Description of measuring
system
Endress+Hauser
• Turning the local display:
the screw cap has to be removed before the local display can be turned, and this must be done with the
device de-energized (and after a delay of at least 10 minutes following shutdown of the power supply) or
when the area is known to be non-hazardous.
"
Caution!
The explosion group for the measuring device can be IIC. However, it is reduced to IIB if the permitted,
external capacitance/inductance for the intrinsically safe communication circuits is increased (see Page 13).
#
Warning!
For entity concept, the criteria for interconnection between the I/O circuits and the associated circuits is as
follow:

• U U
o i

• I I
o i

• P P
o i
 C
• C + C
o i c
 L
• L + L
o i c
C and L stand for the distributed capacitance and distributed inductance of the cable.
c c
Turning the transmitter housing
1. Unscrew the grub screw.
2. Rotate the transmitter housing cautiously clockwise until the end stop (end of the thread).
3. Rotate the transmitter housing counter-clockwise (max. 360°) in the wanted position.
4. Tighten the grub screw properly after each manipulation
#
Warning!
Ensure that the grub screw is tightened properly.
1
Fig. 1: Turning the transmitter housing

COC certificates of conformity

By affixing the certification number the product conforms with the following standards:
• GB3836.1-4 – 2010
• GB3836.20 – 2010
• GB12476.1 – 2000
Certification numbers:
• GYJ12.1047X
Inspection body
NEPSI, National Supervision and Inspection Centre for Explosion Protection and Safety of Instrumentation
The measuring system consists of transmitters and sensors.
Two versions are available:
• Compact version: transmitters and sensors form a mechanical unit.
• Remote version: transmitters and sensors are installed separately and connected to each other via
connecting cables.
2
3
r
NEPSI Zone 1, Zone 21
max. 360°
Nicht-eigensichere
Stromkreise durch
IP40-Abdeckung geschützt
4
Non-intrinsically safe
circuits Ip40 protected
Boucles de courant
sans sécurité intrinsèque
protégées par Ip40
0
A0006944
