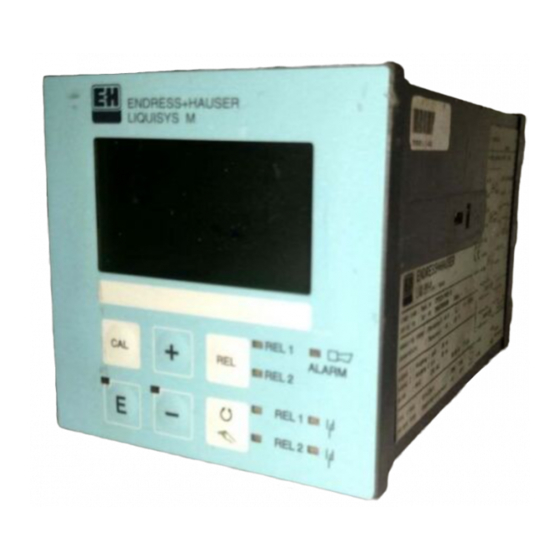

Endress+Hauser Liquisys M COM 223 Operating Instructions Manual

Transmitter for dissolved oxygen
Hide thumbs Also See for Liquisys M COM 223:
Table of Contents

Advertisement

Quick Links

Download this manual
BA 199C/07/en/12.01
No. 51500272
Software version 2.20 or higher
Quality made by
Endress+Hauser
ISO 9001
Liquisys M
COM 223 / 253
Transmitter for
Dissolved Oxygen
Operating Instructions
ENDRESS+HAUSER
LIQUISYS M
Endress Hauser
The Power of Know How
ENDRESS+HAUSER
LIQUISYS M
