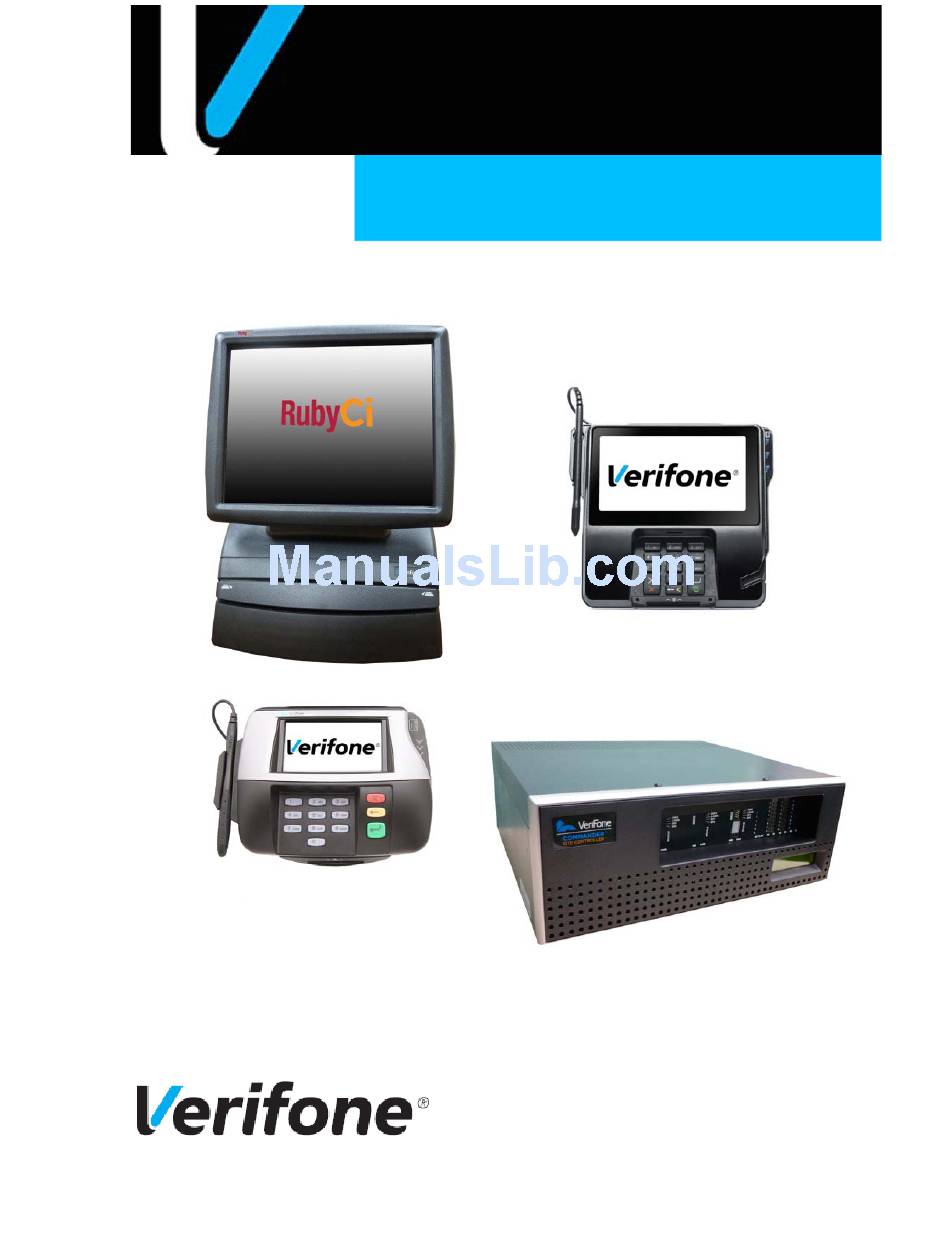

- Page 1 Commander Site Controller First Data Rapid Connect EMV Configuration Guide Date: October 27, 2016...
- Page 2 Verifone, Ruby SuperSystem, and Secure PumpPAY are registered trademarks of Verifone, Inc. Ruby Card, iOrder, and Commander Site Controller are trademarks of Verifone. All other brand names and trademarks mentioned in this document are the properties of their respective...
-
Page 3: Revision History
Revision History Date Description 10/27/2016 Initial Documentation Release... -
Page 4: Table Of Contents
Configuration Client Access....... 3 Commander Site Controller ......3 BuyPass Rapid Connect . -
Page 5: Overview
Sites may also contact support via phone by calling the branded dedicated support line. VASCs may contact the Verifone VASC Helpdesk at 888-777-3536, or through Tech Support Chat/Email Assistance on the Premier Portal at http://premier.verifone.com. For First Data Support, contact the First Data BuyPass Helpdesk. -
Page 6: System Requirements
MX900 Series devices require Kernel 7.00+. MX800 Series devices require Kernel 4.00+ and must have RFS18. MX800 Series devices without RFS18 must be upgraded at the Verifone repair facility. How to Tell if Your MX800 Series PINpad is EMV Capable at support.verifone.com. -
Page 7: Configuring Emv
Verifone solutions for EMV. Configuration Client Access Commander Site Controller Access the Configuration Client for Commander Site Controller at the following address: https://192.168.31.11/ConfigClient.html, or by logging into the Configuration Manager in the CSR Functions on the register. -
Page 8: Buypass Rapid Connect
Request to have the merchant account converted to Rapid Connect and setup for EMV processing on a Verifone POS system. Prior to calling the First Data Merchant Helpdesk for conversion, know the BuyPass Communications Transport currently in-use: BuyPass IP or BuyPass Datawire. -
Page 9: Buypass Configuration For Rapid Connect
To ensure proper configuration of the Verifone Viper EMV Solution, the merchant’s First Data profile must be set to allow for Rapid Connect~EMV processing. Contact the First Data Merchant’s Helpdesk for assistance. -
Page 10: Finding The Dealer Id And Terminal Id
Finding the Dealer ID and Terminal ID Existing accounts using First Data Buypass Atlanta Native Enhanced Network (ATL 105) use a formatted 13-character Dealer ID. The Buypass ATL105 formatted string consists of the following: • a 2-character terminal type code •... -
Page 11: Buypass Fep Configuration
BuyPass FEP Configuration 1. Navigate to the Payment Controller>EPS Configuration>BuyPass Configuration>FEP. 2. Select the BuyPass Codec for Rapid Connect from the drop-down menu: UMF. 3. Enter/Confirm the 6-digit Rapid Connect Dealer ID. 4. Enter/Confirm the 3-digit Terminal ID. Dealer and ID values shown as examples only. - Page 12 Failure to close the Daily Report will cause batches to not reconcile with the previous network configuration. 8. Click [Save]. 9. Reboot the Commander Site Controller. Failure to reboot the Commander Site Controller, or RubyCi, may prevent successful communications to the Payment Host.
-
Page 13: Testing Rapid Connect Communications
Testing Rapid Connect Communications After completing the BuyPass Rapid Connect communications updates, and rebooting the Commander Site Controller, it is recommended to test communications to the host prior to continuing with enabling EMV. 1. Log on to the POS, and select the CSR Functions button. -
Page 14: Buypass Emv Configuration
BuyPass EMV Configuration EMV functions are disabled in the production software distribution and must be manually enabled at the site. CAPK tables are downloaded from the BuyPass host during the EMV CA Public Key File Download initiated from POS Network Menu. Accessing EMV Configuration If the BuyPass Production Signed software installation is a new installation, all menu selections to configure the system for EMV transaction processing are immediately... - Page 15 Functions can be updated to the user's roles through the Configuration Client. 1. Navigate to Security>Manage Users. 2. The Configure Users tab will be displayed. 3. Click to select the User ID and confirm the assigned Role. 4. Click to select the Configure Roles tab 5.
- Page 16 The Functions list is displayed with items listed alphabetically. 7. Scroll down the Functions list and locate uemvcfg - Update EMV Configuration and uemvinit - Update EMV Initialization. 8. Click the checkboxes to activate the uemvcfg and uemvinit functions. 9. Scroll down the Functions list and locate vemvcfg - View EMV Configuration and vemvinit - View EMV Initialization.
- Page 17 12. Click [Save]. 13. Log out of the Configuration Client. 14. Log into the Configuration Client for permission updates to be applied.
-
Page 18: Enabling Emv
Enabling EMV In order to process EMV transactions, EMV must be enabled on the Site Controller. 1. Navigate to Payment Controller>EPS Configuration>EPS Global Configuration> EMV Configuration. 2. Click the checkbox to select and enable <Contact>. Contactless EMV is not available and cannot be enabled at this time. 3. -
Page 19: Capk File Download
CAPK File Download New functionality has been added to the POS EPS Network Functions to allow a download of the EMV Certification Authority Public Keys file. 1. Navigate the POS menu to CSR Functions>Network Menu>EPS Network Functions. 2. Select “Perform EMV CA Public Key File Download”. When the download completes, the EPS will send configurations to connected PINpads, enabling EMV capabilities. -
Page 20: First Data Emv Links
First Data EMV Links EMV: A to Z (Terms and Definitions) www.firstdata.com/downloads/marketing-merchant/EMV-A-toZ.pdf First Data’s Program on EMV www.firstdata.com/downloads/marketing-merchant/EMV_ISV_Webinar_Presentation.pdf First Data’s EMV for Merchants www.firstdata.com/en_us/all-features/emv/emv-for-merchants.html...
