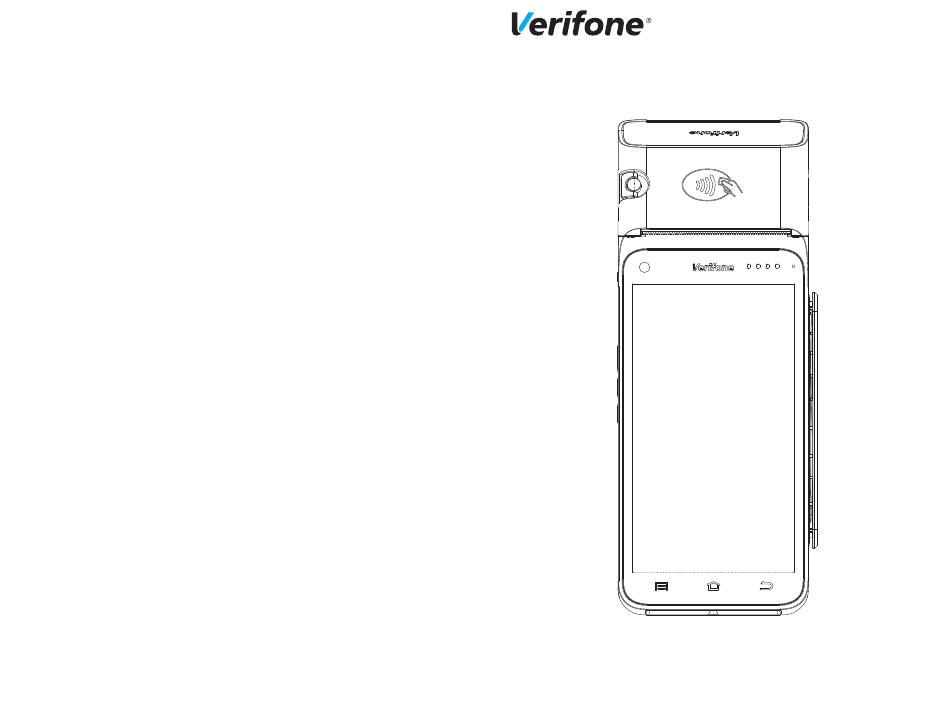

- Page 1 User Manual T650p Petro Smart POS Terminal Verifone, Inc. Verifone Part Number: DOC560-012-EN-A, Revision A02...
-
Page 2: User Instruction
POS Terminal User Manual User Instruction Thank you very much for choosing VERIFONE products, please read this instruction before use so that you could know the performance deepl y . Please keep this instruction for your reference if you have problem during use. -
Page 3: Basic Configuration
IC card slot 9.Where appropriate, references to other EU Directives which have been applied , declare that the design, manufacturing and inspection of the T650p Petro described Verifone., Inc ab ove is in conformity with the provisions of the ATEX Directive 2014/34/EU. - Page 4 It is powered by recharging battery SCUD SX18650-2S1P. 1400 West Stanford Ranch Road Suite 150 Rocklin CA 95765 USA T650p Petro is comprised of electrical circuits,caremas(front camera and rear camera), printer,display unit,touch screen,IC card reader,memory card,MIC,Speaker,RF card reader and magnetic card slot.
-
Page 5: Terminal Specification
Connect the Type C cable to POS terminal, connect the other connector to 5V/2A power adaptor to charge. 3.Terminal specification Item Specification Model Name T650p Petro ARM Cortex-A7 Quad-core CPU Memory 2G RAM+16G ROM Flash Operating System Android 8.x secure payment system Display 5.5 inch IPS screen, resolution 1280×720... - Page 6 POS Terminal User Manual Contactless card Support ISO/IEC 14443 Type A&B, MiFare card, conform to reader qPBOC, PAYPASS and PAYWAVE standard Rear camera High pixel customized camera with flash, autofocus(optional) Professional camera with 1D/2D barcode fast recognition Front camera algorithm(optional) 1 x USB port Physical interface 3.5mm Audio jack port...
-
Page 7: Security Provisions
[Model: T650p Petro] is in compliance with Directive 2014/53/EU. The content text of the EU declaration of conformity is available on https://www.verifone.com/en/us/verifone-regulatory-and-compliance-sheets. 4.13 Please use Verifone verified power adaptor for battery charging; the temperature range under battery charging mode is 0 to 45 (Over Temperature protection ±... -
Page 8: Packing List
8.Packing list Serial No. Name Functional T650p Petro POS Terminal Main function USB-C charging cable Charging User Manual Guidance Paper roll Print material Power adaptor Power supply Battery Power supply T650p Petro Declaration of Conformity CE Declaration...
