VeriFone X990 User Manual

Thank you very much for choosing VERIFONE products, please read this manual before deployment so that you could know
the performance deeply. Please keep this manual for your reference.
Our company will try best to adopt new technologies, new components, new software to improve products. The feature, function
and operation described in this document may be different from the performance of the selling products, in some cases, image
is prototype devices. Please inquiry the company or agent for appropriate update.
The device should be installed by after sale service personnel. Our company shall not be liable for any consequences arising
from unauthorized changes to the equipment, replacement of the connected equipment and cables not as specified.
The Product Manual applies to Model X990 & X990 Dual WiFi & X990 Global.
Verifone Systems (China) Inc. reserves the right to change product technical specification without prior notice.

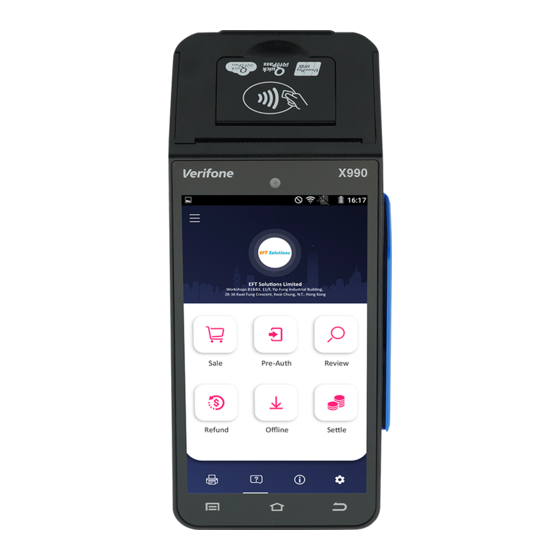

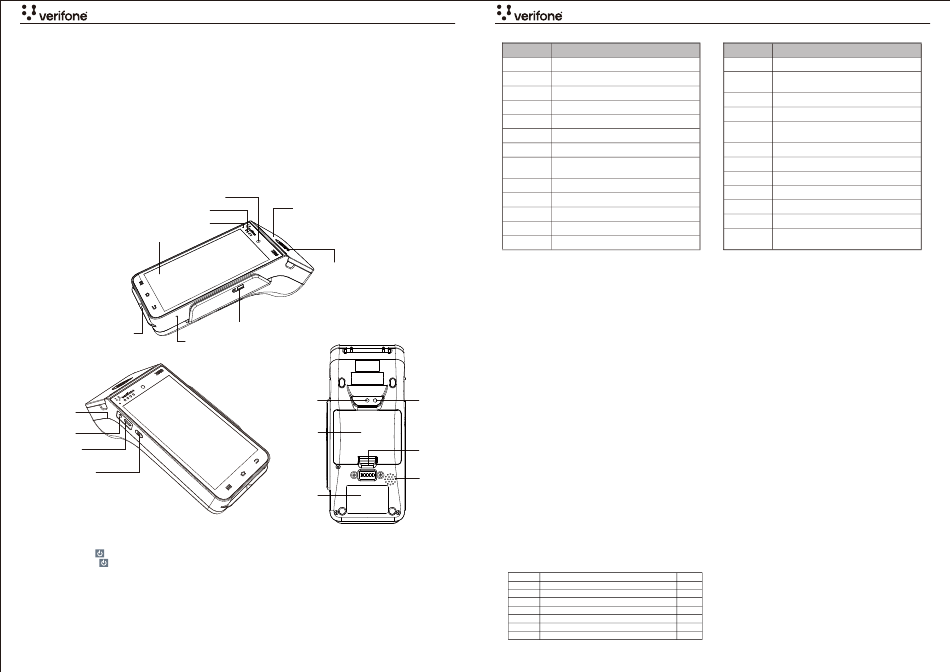

1. Overview
Front camera
CTLS LED indicators
Charging LED
Touch screen
Smart card
Microphone
Fingerprint(optional)
The headset port
(optional)
USB-C port
ON/OFF button
2. User instruction
2.1 ON/OFF instruction
POWER ON: press " " ON/OFF button for 3 seconds
POWER OFF: press " " ON/OFF button for 3 seconds and then press " power off " on the screen
2.2 Magnetic stripe card
Put the magnetic card into the magnetic card slot to read, magnetic side towards the LCD. Keep it smooth, uniform when
swiping the card.
2.3 Smart card
Insert smart card into the smart card slot, the metal pads of the smart card should facing up, please refer to card identification.
2.4 Contactless card
Tab the contactless card near the contactless card reader zone on the device, to make contactless card transaction.
Put one contactless card one time to avoid confliction if putting more then one card.
2.5 Charging
Connect the USB-C cable to POS terminal, connect the other end of the cable to the 5V/2A power adaptor to charge the terminal.
POS Terminal User Manual
User Manual
Paper cabin
CLTS/NFC card
reading area
Magnetic stripe
Rear camera
Battery cover
Nameplate
3. Terminal specification
Item
Product X990
Model Name X990, X990 Dual WiFi, X990 Global
CPU 32-bit high performance CPU
Memory 1G RAM + 8G ROM Flash (Extendable to 2G RAM+16G Flash)
Operating System VanOS secure payment system, based on Android 7.x
Display 5.5 inch IPS screen, 1280×720
Extended storage Micro-SD card interface
Built-in virtual PIN entry keypad
PINPad Support Master Key/Session Key, Fixed, DUKPT etc
Support DES, 3DES, RSA, SHA-256 and AES algorithm etc
Touch Screen Capacitive touch screen, support e-signature
Smart card Conform to ISO7816, PBOC and EMV Level 1 & 2
Magnetic Stripe Support ISO7811 1/2/3track, bi-directional reading
Support ISO/IEC 14443 Type A&B, Mifare card conform to
Contactless
qPBOC, PAYPASS and PAYWAVE spec
Rear camera Optional camera with flash, high resolution, auto focus
4. Instruction for installation and usage
4.1 Please charge the terminal within the specified voltage range, don't use too low or too high voltage.
4.2 Please make sure the connection is correct when connecting the device to the host and/or the power adaptor.
4.3 Don't damage the cable, if the cable is damaged, do not use it anymore.
4.4 Don't expose the terminal with direct sunlight, high temperature, humidity, dusty or strong corrosive gas.
4.5 Stay away from liquid, don't use the product where the water may pour over or enter into, don't operate the product with
wet hand.
4.6 It is strictly prohibited to open the terminal without permission, otherwise the terminal will fail, the consequence will be at
your own risk.
4.7 If the terminal fails, please contact maintenance personnel, user is not allowed to maintain or repair the terminal without
permission.
4.8 Be sure to use the original battery or specified type of battery, otherwise it may cause the risk of explosion, prohibit the
impact, extrusion, heating, short circuit or put the battery nto the fire, the battery is prohibited to use after soaking.
4.9 Please remember to close the battery cover after replacing the battery.
4.10 It is strictly prohibited to charge and replace batteries in dangerous places.
The flash light
4.11 Adapter shall be installed near the equipment and shall be easily accessible.
4.12 Risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries according to the instructions.
4.13 Hereby, [Verifone Systems (China) Inc.] declares that the radio equipment type [Model: X990, X990 Dual WiFi, X990
Global] is in compliance with Directive 2014/53/EU. The full content of the EU declaration of conformity is available on
www.verifone.cn website.
USB Token
4.14 ONLY use Verifone qualified power adaptor for battery charging. For the battery, the charging temperature is 0℃±3℃ to
(Inner, optional)
40℃±3℃, the operating temperature is 0℃ to 45℃. Do not operate and use the terminal beyond the above temperature
range, otherwise it may cause the risk of explosion.
Speaker
5. Password anti-peep instruction
1. Using body or hand to block when entering the password to prevent it from peeping.
2. The monitor range should as far as possible from the placement of the terminal when installing the surveillance camera, so
as to avoid the cardholder's password leakage.
3. Clients and merchants need to conduct routine inspection to ensure that the terminal has not been changed and there are
no suspicious objects within the smart card and magnetic card slot.
6. Packing list
Serial No. Name
1 X990 POS Terminal
2
USB-C charging cable
3 User Manual
4 Paper roll
5 Power adaptor
Battery
6
7 X990 Declaration of Conformity
Specification Item
Optional professional camera, equiped with fast 1d/2d barcode
Front camera
recognition algorithm
USB TYPE C
Optional 3.5mm headset jack
Physical interface
2 x SAM, 1 x SIM or 1 x SAM, 2 x SIM
4 contactless LEDs
LED indicators
1 two-color charging indicator
Multimedia Built-in buzzer, speaker, microphone
Built-in high-speed thermal printer with print speed greater
Printer
than 25 lines per second, support paper roll with width of
58mm and diameter of 40mm
GPS Built-in GPS, support A-GPS, Glonass, Beidou
Battery 2600mAh/7.2V
Connectivity 4G, compatible with 3G and 2G, Wi-Fi, Bluetooth
Input: AC 100V～240V/50～60Hz/0.3～0.5A
Power adaptor
Output: DC 5V/2A
Options Fingerprint, USB Token
Accessories Optional, feature base
Operating temperature：0℃～45℃
Environmental
storage temperature：-20℃～70℃
condition
Relative humidity：5%～90% (Non-condensing)
Verifone Systems (China) Inc.
Phone: +86 13910835232
E-mail: support@Verifone.cn
Qty www.verifone.com
Room 301, ZhuoMing Plaza, No. 1069, South Huihe Street, Chaoyang District, Beijing, China
1
1 Verifone Inc.
2560 N, 1st Street, Suite 220 San Jose, California 95131, USA
1
1
Verifone Holding GmbH
Seilerweg, 2F, Bad Hersfeld 36251, Germany
1
1
Verifone UK Ltd.
1
3 Roundwood Avenue Stockley Park Uxbridge, UB11 1AF, UK
Công ty TNHH Gini
Phòng U3, Tầng 4, Tòa nhà Broadway E, Số 2 Bertrand Russell, Phường Tân Phú, Quận 7,
TP. HCM, Việt Nam.
