Figure 8 – Thick Stub Loaded Message Box - CML Microcircuits PE0601 Series User Manual

Evaluation Kit for CMX7x6x
Click on the message box 'OK' button and the application will proceed to programme the Function
Image™ into the serial memory on the PE0601 card. Progress is shown visually on the progress
bar. When programming is complete a message box will be displayed indicating if the operation
was successful or not.
© 2011 CML Microsystems Plc

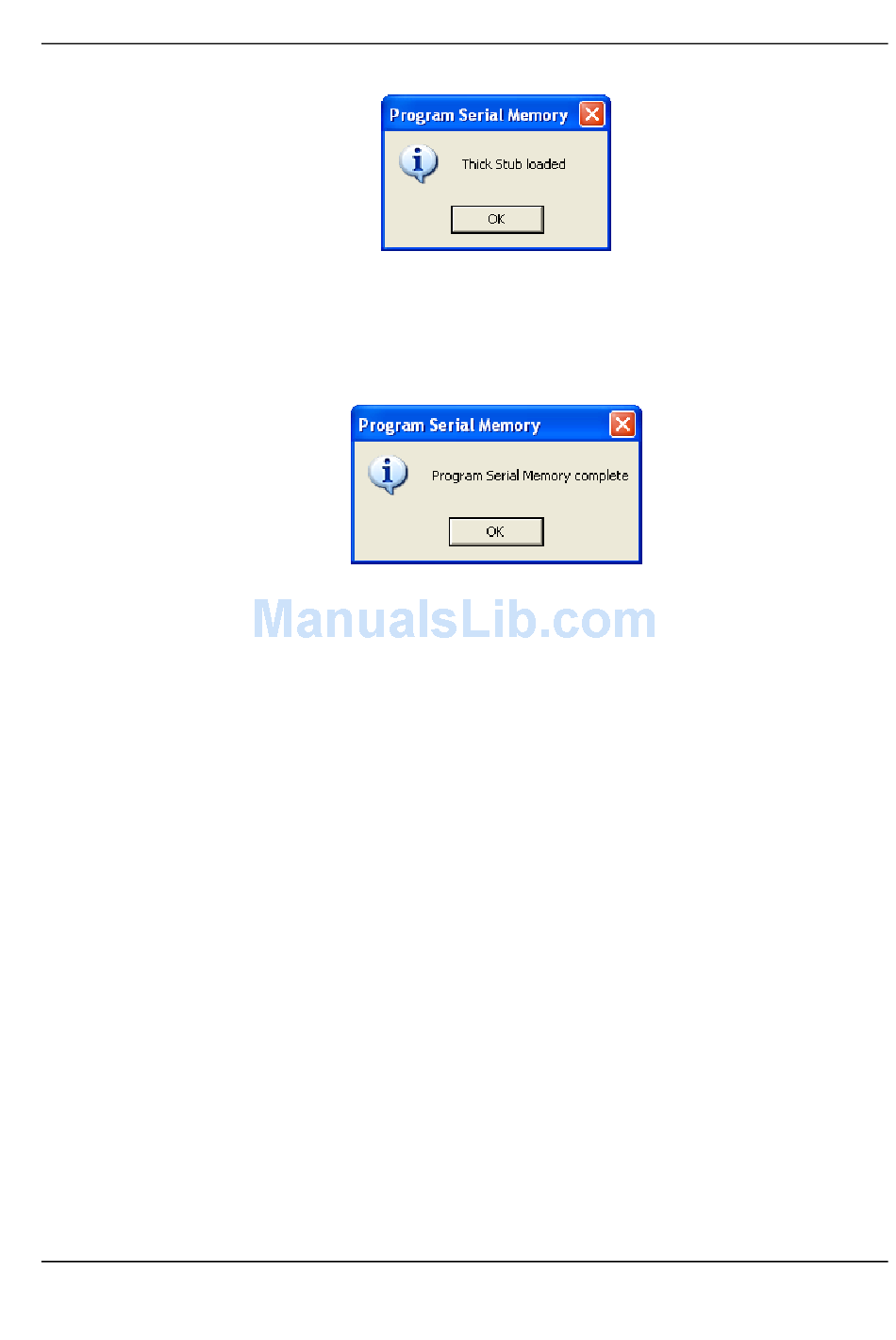

Figure 8 – Thick Stub Loaded Message Box
Figure 9 – Program Serial Memory Complete Message Box
