Evaluation Kit for CMX7x6x
6.3.2

Load Function Image

It is assumed that the serial memory has been programmed with the Function Image™ prior to
using this load method. This can be carried out with the serial memory in circuit using the
ES0002xx 'Program Serial Memory' tab.
Use the 'Function Image™ Load' tab. Select Function Image™ Source: 'Serial Memory'.
Select target board.
Click the 'Load' button. The progress of the download is shown visually on the progress bar
and when the download has completed a message box will be displayed indicating if the
result of the download operation was successful or not.
© 2011 CML Microsystems Plc
TM
from Serial Memory Device

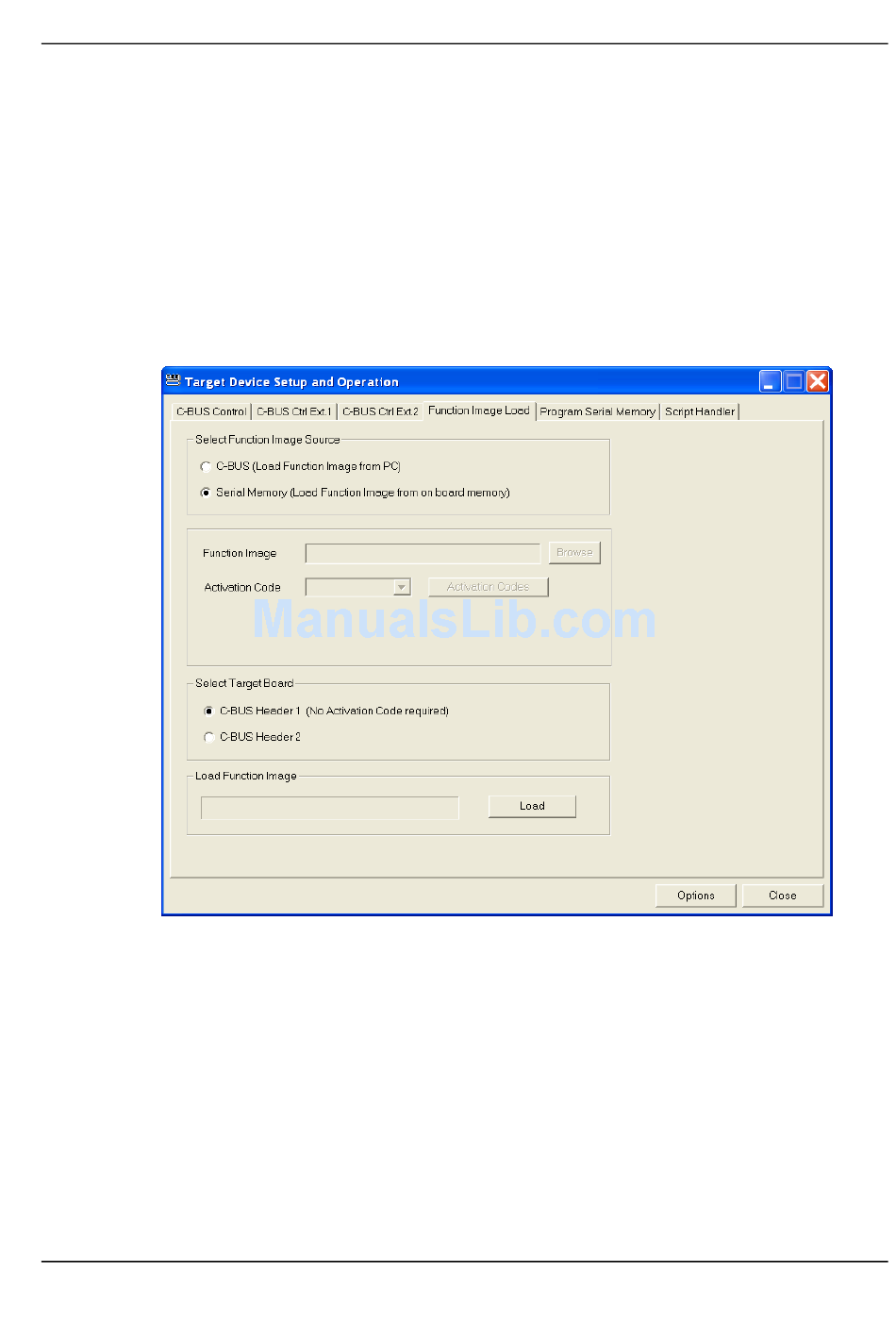

Figure 6 – Function Image™ Load Tab – from Serial Memory
27
PE0601-xxxx
UM0601/2
