COMMUNICATION SEMICONDUCTORS
UM0601/2 April 2011
Features
• CMX7x6x FirmASIC
• Serial Flash Option for Function Image
circuit programming
• On-board supply regulators operate from a single
5 volt supply
• Instrumentation interface to differential I and Q
signals (requires additional –5 volt supply)
Brief Description
1

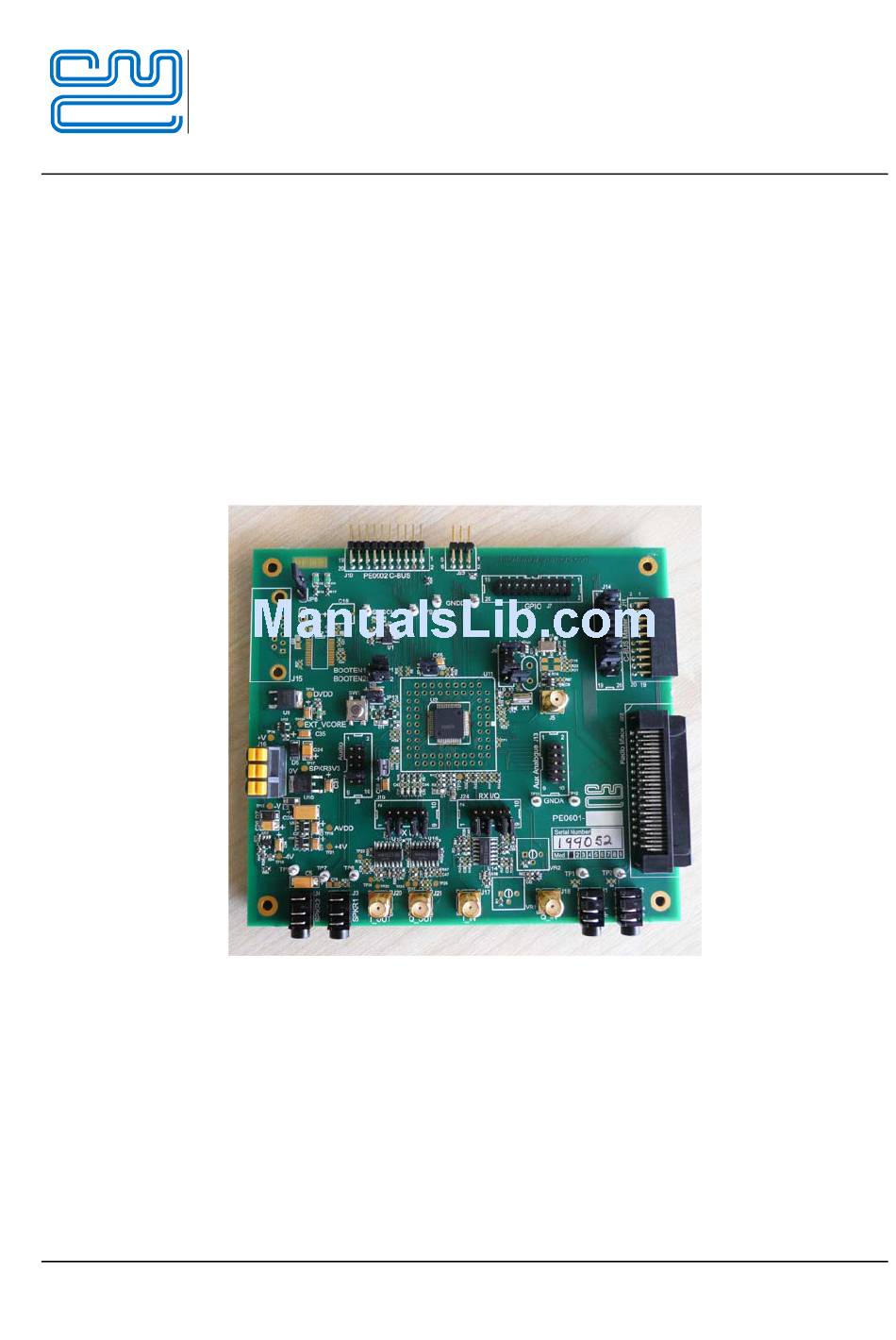

The PE0601-xxxx Platform Evaluation Kit is designed to assist in the evaluation and application
development of the CMX7x6x range of FirmASIC
comprising a CMX7x6x target IC and appropriate supporting components and circuitry.
The board also incorporates all of the necessary power-supply regulation facilities for operation from a
single 5 volt supply, or a dual +/-5 volt supply if the instrumentation interface is required.
The board is fitted with a C-BUS connector allowing the PE0601 to be operated by connection to either of
the two C-BUS ports on a CML PE0002 Interface Card, and used with the associated PC GUI software, or
by direct connection between the CMX7x6x C-BUS and the user's µC development application or
emulation system.
© 2011 CML Microsystems Plc
CML Microcircuits
®
product range evaluation
• Command and control by PC via the
PE0002 interface card or user's µC
development application or emulator
TM
• 19.2MHz oscillator, user crystal or
with in-
external clock input to CMX7x6x
• On-board access to all CMX7x6x
signals, commands and data
•
Interfaces to RF daughterboard with
all necessary signals
®
products. The kit is in the form of a populated PCB
PE0601-xxxx
Evaluation Kit
User Manual
Provisional Issue
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for CML Microcircuits PE0601 Series
Summary of Contents for CML Microcircuits PE0601 Series
-
Page 1: Brief Description
PE0601-xxxx CML Microcircuits Evaluation Kit User Manual COMMUNICATION SEMICONDUCTORS UM0601/2 April 2011 Provisional Issue Features ® • CMX7x6x FirmASIC • Command and control by PC via the product range evaluation PE0002 interface card or user’s µC development application or emulator •... - Page 2 Evaluation Kit for CMX7x6x PE0601-xxxx The CMX7x6x Function Image (FI) can be loaded, on power-up, directly into the on-board target IC using the PE0002 interface or the user's system. Alternatively, it can be automatically loaded from the on- board serial memory, on power-up. In this case, the on-board serial memory has to be pre-loaded with the FI by using the 'Program Serial Memory' tab on the PE0002 GUI software, or by the user’s system utilising the appropriate ‘thick stub’...
-
Page 3: Table Of Contents
Evaluation Kit for CMX7x6x PE0601-xxxx CONTENTS Section Page Brief Description......................1 History......................4 Preliminary Information ....................6 Laboratory Equipment ..................6 Handling Precautions ..................6 2.2.1 Static Protection ..................6 2.2.2 Contents - Unpacking ................6 Approvals......................6 Quick Start .........................7 With PE0002....................7 3.1.1 Setting-Up....................7 3.1.2 Operation ....................7 Without PE0002....................8 Signal Lists.........................9 Circuit Schematics and Board Layouts ..............20... -
Page 4: History
Evaluation Kit for CMX7x6x PE0601-xxxx Table Page Table 1 – Signal List......................15 Table 2 – Test Points ......................16 Table 3 – Jumpers ......................18 Table 4 – LEDs ......................... 19 Table 5 – Clock Select Jumper Positions ................. 22 Table 6 –... -
Page 5: Figure 1 – Block Diagram
Evaluation Kit for CMX7x6x PE0601-xxxx SSP/GPIO, J7 Serial C-BUS Memory Master, Clocks (19.2MHz default) +V, J23 +3V3D CMX7x6x Core Auxiliary +3v3 ADC & DAC, Speaker +3V3A Interface, +4V0 -4V0 Instrumentation Interface Audio Audio Outputs, Inputs, J3/4 J1/2 I/Q_OUT I/Q_IN Figure 1 – Block Diagram ©... -
Page 6: Preliminary Information
Evaluation Kit for CMX7x6x PE0601-xxxx Preliminary Information ® The PE0601-xxxx is designed to support the CMX7x6x range of FirmASIC devices using their respective Function Image The PE0601-xxxx is supplied with a customer specified target device fitted where xxxx in the product code is the numerical part of the target device product code. -
Page 7: Quick Start
Evaluation Kit for CMX7x6x PE0601-xxxx Quick Start This section is divided into two sub-sections. The first is for those users who are using the PE0601 with a PE0002 controller card and its Windows PC GUI software. The second is for users who are using the PE0601 by itself, without a PE0002. -
Page 8: Without Pe0002
Evaluation Kit for CMX7x6x PE0601-xxxx 2. From the on-board PE0601 serial memory. To use this method the serial memory must first be programmed with the FI by using the 'Program Serial Memory' tab on the PE0002 GUI software. The PE0601 should now be ready for evaluation of the CMX7x6x with the chosen FI. Please note that to access the CML Technical Portal you need to be authorised by a member of the CML sales staff. -
Page 9: Signal Lists
Evaluation Kit for CMX7x6x PE0601-xxxx Signal Lists CONNECTOR PINOUT Connector Connector Signal Signal Description Ref. Pin No. Name Type Audio 1 input. RING GNDA Analogue ground. SLEEVE Audio 2 input. RING GNDA Analogue ground. SLEEVE SPKR1_P Speaker 1 (8ohm) +ve. RING SPKR1_N Speaker 1 (8ohm) -ve. - Page 10 Evaluation Kit for CMX7x6x PE0601-xxxx CONNECTOR PINOUT Connector Connector Signal Signal Description Ref. Pin No. Name Type GPIO10/SYS CMX7x6x signal, FI dependent. CLK2 GPIO11/SYS CMX7x6x signal, FI dependent. CLK1 GPIO12/MOSI CMX7x6x signal, FI dependent. /SDO GPIO13/SSO CMX7x6x signal, FI dependent. UT1/FSO GPIO14/MISO CMX7x6x signal, FI dependent.
- Page 11 Evaluation Kit for CMX7x6x PE0601-xxxx CONNECTOR PINOUT Connector Connector Signal Signal Description Ref. Pin No. Name Type Serial clock input. Connects to host μC. SCLK RF_SCLK RF Serial Clock. Serial data output. Connects to host μC. RDATA Interrupt request. Connects to host μC. IRQN 11, 12 GNDD...
- Page 12 Evaluation Kit for CMX7x6x PE0601-xxxx CONNECTOR PINOUT Connector Connector Signal Signal Description Ref. Pin No. Name Type AUXADC0 Auxiliary ADC input. AUXDAC3 Auxiliary DAC output. 9, 10 GNDA Analogue ground. External supply voltage, nominally +5 volt. External supply ground. Optional external negative supply voltage, nominally -5 volt.
- Page 13 Evaluation Kit for CMX7x6x PE0601-xxxx CONNECTOR PINOUT Connector Connector Signal Signal Description Ref. Pin No. Name Type GNDD Digital ground. GPIO13/SSO CMX7x6x signal, FI dependent. UT1/FSO GPIO2/SSOU CMX7x6x signal, FI dependent. GNDD Digital ground. GPIO11/SYS CMX7x6x signal, FI dependent. CLK1 GNDD Digital ground.
- Page 14 Evaluation Kit for CMX7x6x PE0601-xxxx CONNECTOR PINOUT Connector Connector Signal Signal Description Ref. Pin No. Name Type GNDA Analogue ground. AUXADC0 Auxiliary ADC input. AUXADC2 Auxiliary ADC input. GNDA Analogue ground. AUXDAC3 Auxiliary DAC output. AUXDAC1 Auxiliary DAC output. 46, 47, 48 GNDA Analogue ground.
-
Page 15: Table 1 – Signal List
Evaluation Kit for CMX7x6x PE0601-xxxx CONNECTOR PINOUT Connector Connector Signal Signal Description Ref. Pin No. Name Type Q_INN_I Q channel input negative, instrumentation output. Q_INN Q channel negative positive. Table 1 – Signal List Notes: Bidirectional High impedance Input Not connected Output Power supply connection ©... -
Page 16: Table 2 – Test Points
Evaluation Kit for CMX7x6x PE0601-xxxx TEST POINTS Test Point Default Description Ref. Measurement Loop – IP1 - Audio 1 inverting input. Loop – IP2 - Audio 2 inverting input. 3.3V Pad – CMX7x6x V BIAS CMX7x6x Loop – CMX7x6x GPIO11/SYSCLK1 - FI dependent. dependent CMX7x6x Loop –... - Page 17 Evaluation Kit for CMX7x6x PE0601-xxxx JUMPERS Link Default Positions Description Ref. Position Open Manual BootEn1 control (short = LO). Open Manual BootEn2 control (short = LO). Open Allow CMX7x6x GPIO3/4 to drive LEDs D2/3. JP11 Short Isolates analogue supply rail from CMX7x6x. JP13 Short Isolates digital supply rail from CMX7x6x.
-
Page 18: Table 3 – Jumpers
Evaluation Kit for CMX7x6x PE0601-xxxx JUMPERS Link Default Positions Description Ref. Position Open Isolates I channel input +ve from instrumentation interface. Open Isolates I channel input -ve from instrumentation interface. Open Isolates Q channel input +ve from instrumentation interface. 9-10 Open Isolates Q channel input -ve from instrumentation interface. -
Page 19: Table 4 – Leds
Evaluation Kit for CMX7x6x PE0601-xxxx LEDs LED Ref. Description Indicates state of GPIO3 if JP8 fitted. Indicates state of GPIO4 if JP8 fitted. Indicates that the digital supply voltage is present. Table 4 – LEDs © 2011 CML Microsystems Plc UM0601/2... -
Page 20: Circuit Schematics And Board Layouts
Evaluation Kit for CMX7x6x PE0601-xxxx Circuit Schematics and Board Layouts For clarity, circuit schematics are available as separate high-resolution files. These can be obtained via the CML website. 138.0 PE0002 C-BUS TP10 GNDD GPIO SYSCLK1 SYSCLK2 BOOTEN1 TP20 BOOTEN2 20 19 TP16 9 10 DVDD... -
Page 21: Figure 4 – Pcb Layout: Bottom
Evaluation Kit for CMX7x6x PE0601-xxxx C66 C63 Figure 4 – PCB Layout: Bottom © 2011 CML Microsystems Plc UM0601/2... -
Page 22: Detailed Description
Evaluation Kit for CMX7x6x PE0601-xxxx Detailed Description Hardware Description The PE0601 as shipped may not have the optimum configuration or component values for all function images. Check the PE0601 schematic against recommendations in the specific CMX7x6x datasheet. 6.1.1 Power Supplies The board is fitted with six voltage regulators. -
Page 23: Control Interface
Evaluation Kit for CMX7x6x PE0601-xxxx As an alternative to the 19.2MHz oscillator a more accurate TCXO could be used with the following component changes: Reference Action Description Designator Remove 100nF 0603 18kohm 0603 0R 0603 15kohm 0603 Golledge GTXO-83 series TCXO, or similar Table 6 –... -
Page 24: Rf Transceiver Interface
Evaluation Kit for CMX7x6x PE0601-xxxx The CMX7x6x device audio input amplifiers for IP1 and IP2 are configured as ac coupled, unity gain, inverting amplifiers. The inputs to these circuits are fed from connectors J1 and J2 respectively. The CMX7x6x device speaker outputs, SPKR1 and SPKR2, are fed to connectors J3 and J4 respectively. -
Page 25: Adjustments And Controls
Evaluation Kit for CMX7x6x PE0601-xxxx Adjustments and Controls The boot state of the CMX7x60 device can be set manually, using jumpers JP1 and JP2. If using with the PE0002, the jumpers should be left open circuit. © 2011 CML Microsystems Plc UM0601/2... -
Page 26: Function Image
Evaluation Kit for CMX7x6x PE0601-xxxx Function Image There are two methods by which a FI may be loaded into the CMX7x6x device. Whenever power is removed from the PE0601 the FI data will be erased from the CMX7x6x device. Therefore, whenever power is applied a FI must be loaded, either from the serial memory or via the C-BUS interface. -
Page 27: Load Function Image
Evaluation Kit for CMX7x6x PE0601-xxxx 6.3.2 Load Function Image from Serial Memory Device It is assumed that the serial memory has been programmed with the Function Image™ prior to using this load method. This can be carried out with the serial memory in circuit using the ES0002xx ‘Program Serial Memory’... -
Page 28: Program Serial Memory
Evaluation Kit for CMX7x6x PE0601-xxxx 6.3.3 Program Serial Memory The serial memory device fitted to the PE0601 is a Numonyx or ST M25P10A 1Mbit SPI serial Flash or equivalent. Loading a FI into this serial memory requires a "thick stub" application programme EF0601_M25P10_10_xxxx.h (or later version), where ‘xxxx’... -
Page 29: Figure 8 – Thick Stub Loaded Message Box
Evaluation Kit for CMX7x6x PE0601-xxxx Figure 8 – Thick Stub Loaded Message Box Click on the message box ‘OK’ button and the application will proceed to programme the Function Image™ into the serial memory on the PE0601 card. Progress is shown visually on the progress bar. -
Page 30: Troubleshooting
Evaluation Kit for CMX7x6x PE0601-xxxx Troubleshooting © 2011 CML Microsystems Plc UM0601/2... -
Page 31: Performance Specification
Evaluation Kit for CMX7x6x PE0601-xxxx Performance Specification Electrical Performance 7.1.1 Absolute Maximum Ratings Exceeding these maximum ratings can result in damage to the evaluation kit. Min. Max. Units Supply (+V – 0V) -0.3 Supply (-V – 0V) -9.0 Voltage on any connector pin to V -0.3 Current into or out of +V and V pins... -
Page 32: Operating Characteristics
Evaluation Kit for CMX7x6x PE0601-xxxx 7.1.3 Operating Characteristics For the following conditions unless otherwise specified: Evaluation device clock frequency = 19.2MHz, +V = 5.0V, Tamb = +25°C. For CMX7x6x parameters, see relevant CMX7x6x datasheet. Notes Min. Typ. Max. Units DC Parameters 1, 2 1, 2 +3V3A... -
Page 33: Operating Characteristics - Timing Diagrams
Evaluation Kit for CMX7x6x PE0601-xxxx 7.1.4 Operating Characteristics - Timing Diagrams Please refer to relevant CMX7x6x datasheet for details. © 2011 CML Microsystems Plc UM0601/2... - Page 34 Evaluation Kit for CMX7x6x PE0601-xxxx About FirmASIC® CML’s proprietary FirmASIC® component technology reduces cost, time to market and development risk, with increased flexibility for the designer and end application. FirmASIC® combines Analogue, Digital, Firmware and Memory technologies in a single silicon platform that can be focused to deliver the right feature mix, performance and price for a target application family.
