Program Serial Memory

The serial memory device fitted to the PE0601 is a Numonyx or ST M25P10A 1Mbit SPI serial
Flash or equivalent. Loading a FI into this serial memory requires a "thick stub" application programme
EF0601_M25P10_10_xxxx.h (or later version), where 'xxxx' is the 'xxxx' element of
PE0601-xxxx. For example, if using a PE0601-7163, then the thick stub programme to use is
EF0601_M25P10_10_7163.h. The thick stub programme is available from the CML website.
Use the 'Program Serial Memory' tab:
•
Enter the name of the file containing the thick stub (EF0601_M25P10_10_xxxx.h), or
navigate to the required file using the 'Browse' button. This file is in the same 'C' language
header format as the Function Image™.
•
Enter the name of the file containing the Function Image™, or navigate to the required file
using the 'Browse' button.
•
Select target board.
•
Click the 'Load' button.
Shortly after pressing the 'Load' button, a message box will confirm that the application has
loaded the Thick Stub.
© 2011 CML Microsystems Plc

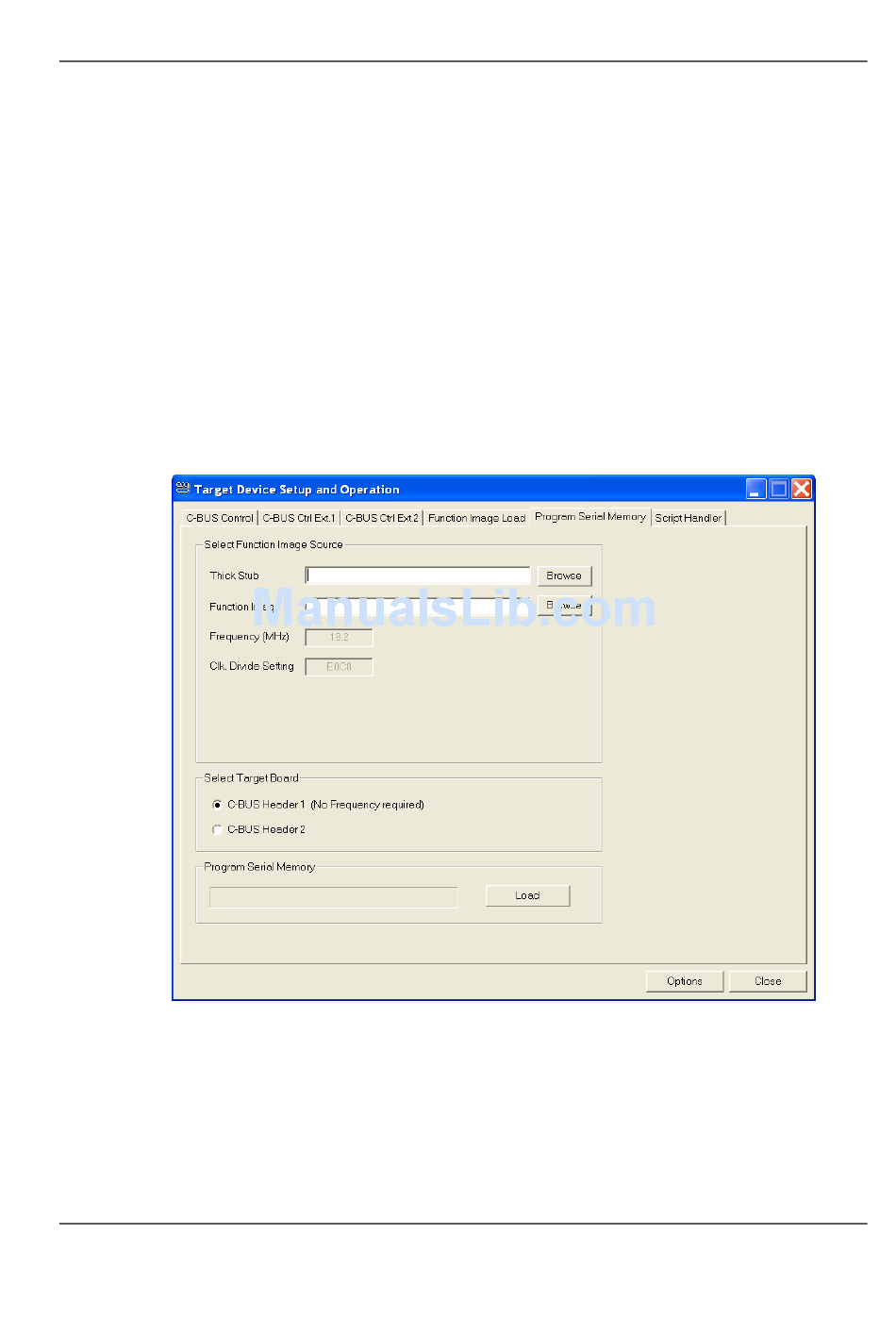

Figure 7 – Program Serial Memory Tab
